1888811-1
HDMI, Stacked Receptacle Connector 38 Position Panel Mount, Through Hole, Right Angle
Availability: In Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 1888811-1 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for

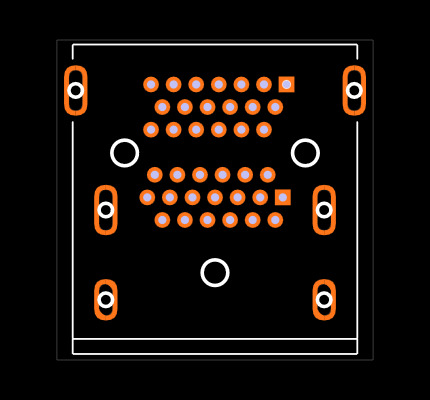

Footprint
No web preview
This Footprint is Available for

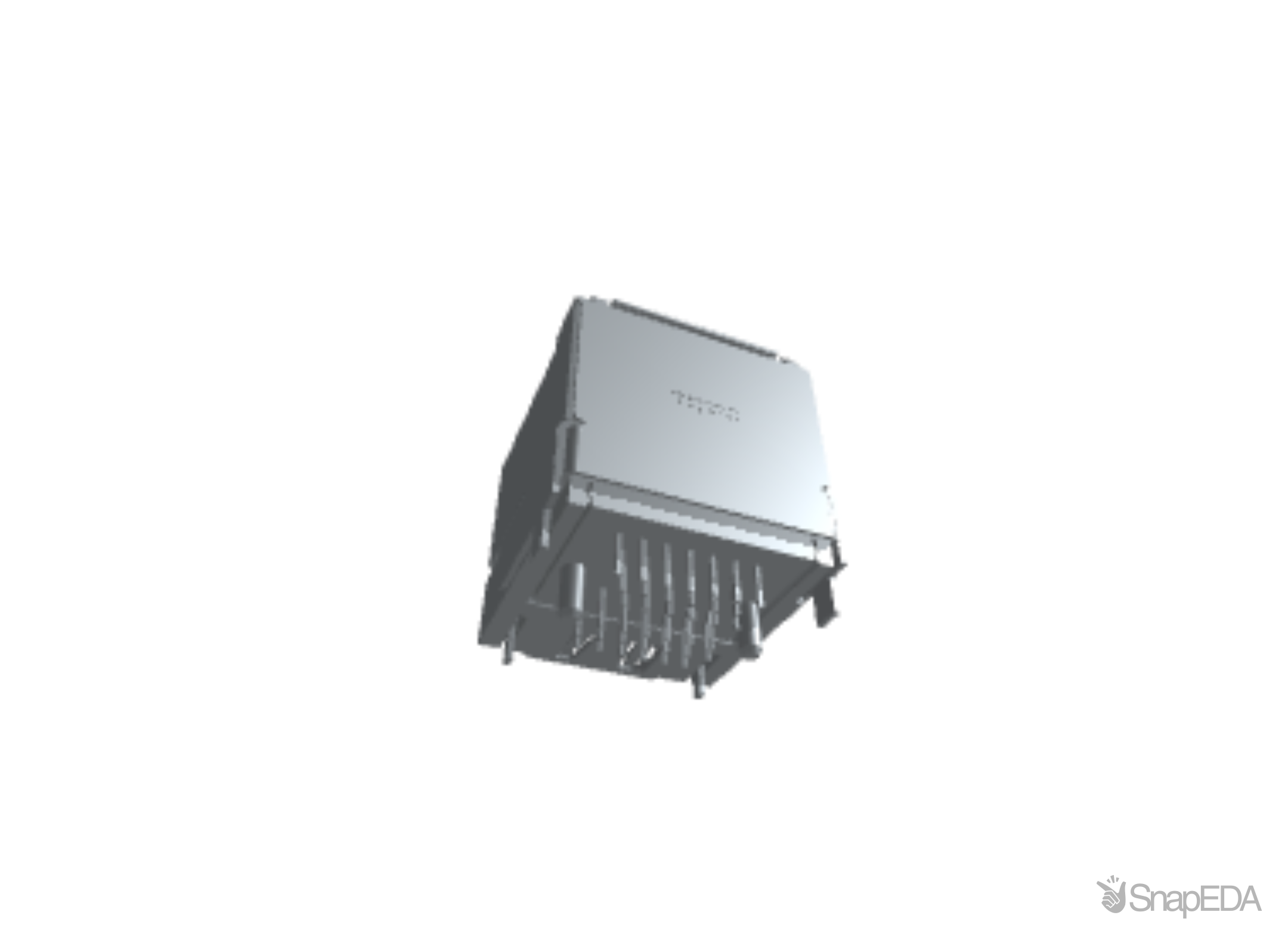

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 1888811-1
| Part Name | 1888811-1 |
| Manufacturer | TE Connectivity |
| Shell Plating Material | Tin |
| Centerline (Pitch) | .039 |
| Circuit Application | Signal |
| Soldering Temperature (Max) | 260 |
| Ground Component Type | M3 Threaded Hole |
| Contact Termination Type | Through Hole |
| Connector & Contact Terminates To | Printed Circuit Board |
| Connector Style | Receptacle |
| Number of Positions | 38 |
| PCB Mount Retention Type | Straight Leg |
| Operating Temperature Range | -67 – 221 |
| TE Internal Number | 1888811-1 |
| Preloaded | Yes |
| Connector System | Cable-to-Board |
| Contact Mating Area Plating Thickness | 11.81 |
| Housing Color | Black |
| Termination Method | Solder |
| Product Type | Connector |
| Connector Mounting Type | Board Mount |
| Stacked | Yes |
| Assembly Process Feature | Pick and Place Cover |
| Mounting Location | Top |
| Shell Plating Finish | Matte |
| Locating Posts | With |
| Packaging Method | Package |
| Tail Length | 2.6 |
| Number of Ports | 2 |
| Contact Mating Area Plating Material | Gold Flash over Palladium Nickel |
| RoHS | True |
| PCB Mounting Style | Through Hole |
| Orientation | Right Angle |
| PCB Thickness (Min) | .063 |
| Panel Ground Location | Top |
| Grounding Options | Panel Ground |
| Contact Current Rating (Max) (A) | .5 |
| Mating Cycles (Max) | 10000 |
| Size | Standard |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Contact Material | Copper Alloy |
| Number Of Contacts | 38 |
| Current Rating (A) | 500 (mA) |
| Contact Plating | Gold over Palladium Nickel |
| Gender | Female |
| Body Orientation | Right Angle |
| Housing Material | Thermoplastic |
| Minimum Operating Temperature | -55 (°C) |
| Termination Method | Solder |
| Series Number | 1888811 |
| Maximum Operating Temperature | +105 (°C) |
| Size | Standard |
Inventory for the 1888811-1 by TE Connectivity from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
8,235
|
|
Visit Site | |
|
★ Featured
|
669
|
37 x $9.46
|
Visit Site | |
| Avnet America |
11,016
|
|
Visit Site | |
| Farnell UK |
1,432
|
|
Visit Site | |
| Heilind Americas |
|
|
Visit Site | |
| Newark |
1,432
|
|
Visit Site | |
| RS UK |
97
|
|
Visit Site | |
| Sager |
|
648 x $10.33
|
Visit Site | |
| TME |
1,109
|
|
Visit Site | |
| TTI Americas |
|
|
Visit Site | |
| Verical |
2,080
|
1 x $5.95
|
Visit Site | |
| element14 Singapore |
1,432
|
|
Visit Site |
No issues have been reported for the 1888811-1
