1892801-1
Conn Power PL 2Power/16Signal POS Press Fit ST Thru-Hole 18 Terminal 1 Port
Availability: Out of Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 1892801-1 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
2D Model
The 2D model for this
part is not available

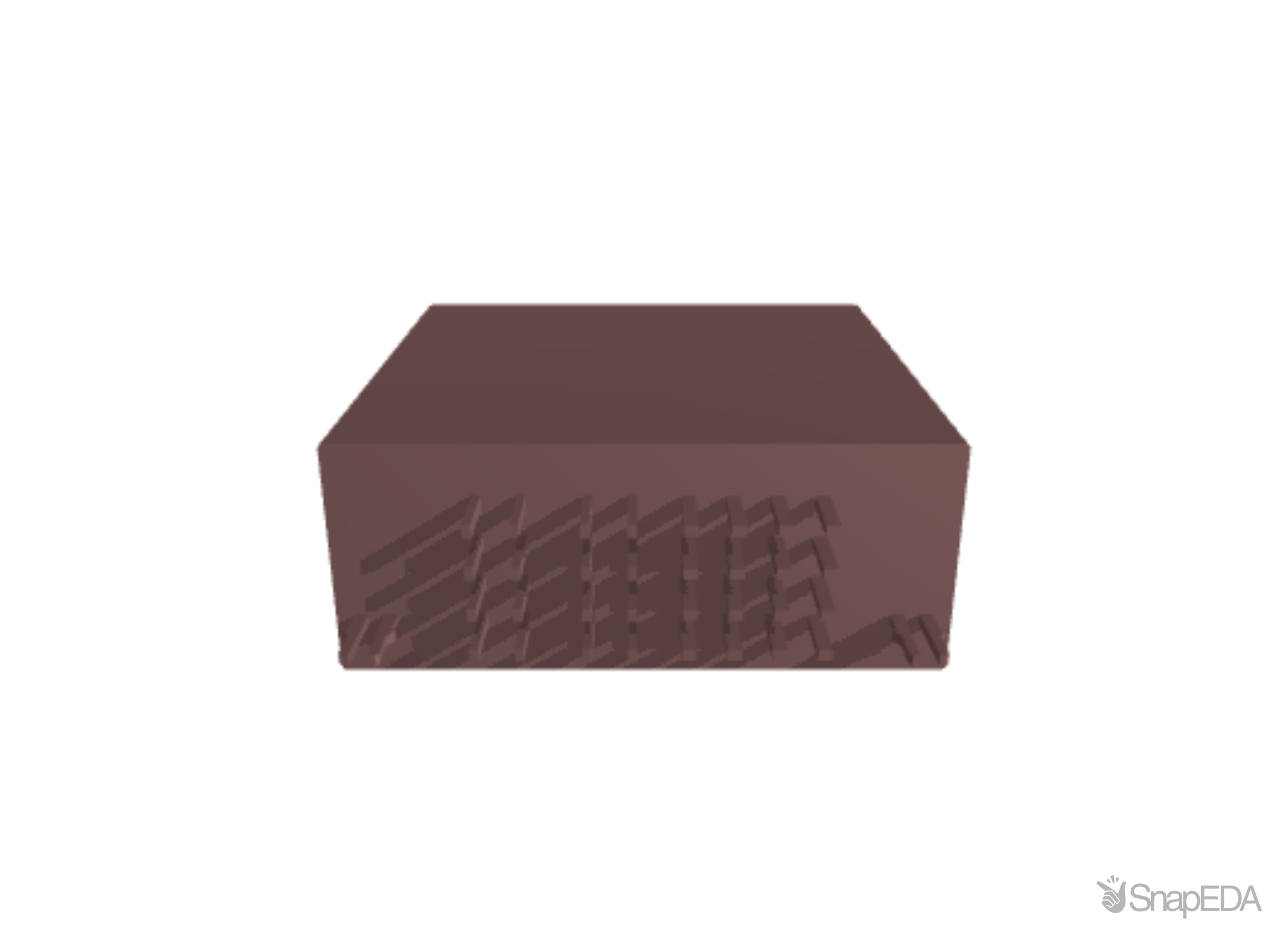

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 1892801-1
| Part Name | 1892801-1 |
| Manufacturer | TE Connectivity |
| Underplate Material Thickness | 4.19 |
| Centerline (Pitch) | 6.35 |
| Circuit Application | Power & Signal |
| Mating Retention Type | Boardlock |
| Housing Material | Thermoplastic |
| Number of Power Positions | 2 |
| Operating Voltage (V) | 200 |
| Connector & Contact Terminates To | Printed Circuit Board |
| PCB Mount Retention Type | Boardlock |
| PCB Mount Retention | With |
| Termination Post & Tail Length | .165 |
| TE Internal Number | 1892801-1 |
| PCB Mount Orientation | Vertical |
| Connector System | Board-to-Board |
| Number of Rows | 4 |
| Housing Color | Black |
| Number of Signal Positions | 16 |
| Product Type | Header |
| Connector Mounting Type | Board Mount |
| Operating Temperature Range | -40 – 257 |
| Packaging Method | Tray |
| Housing Type | Plug |
| Contact Termination Area Plating Material | Tin |
| Number of Positions | 18 |
| Contact Mating Area Plating Material | Gold |
| RoHS | True |
| Termination Method to Printed Circuit Board | Through Hole - Press-Fit |
| Sealable | No |
| Contact Retention | Without |
| Power Contact Material | Tin |
| UL Flammability Rating | UL 94V-0 |
| Row-to-Row Spacing | .1 |
| Contact Current Rating (Max) (A) | 50 |
| Contact Mating Area Plating Thickness | 30 |
| Contact Type | Pin |
| Glow Wire Rating | High Temperature Part - Not Glow Wire |
| Board-to-Board Configuration | Vertical |
