1899003
SnapVerified
Conn Shrouded Header (4 Sides) HDR 4 POS 5.08mm Solder RA Wall Mount
Availability: Out of Stock
CAD Models: Symbol and Footprint
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 1899003 by Phoenix Contact and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model

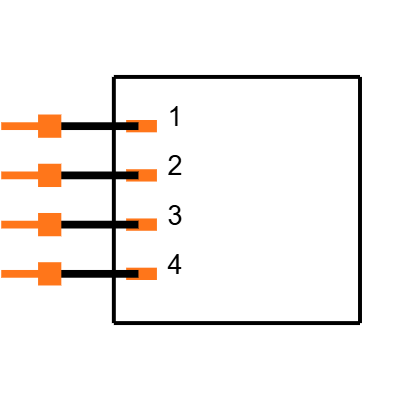

Symbol
No web preview
This Symbol is Available for

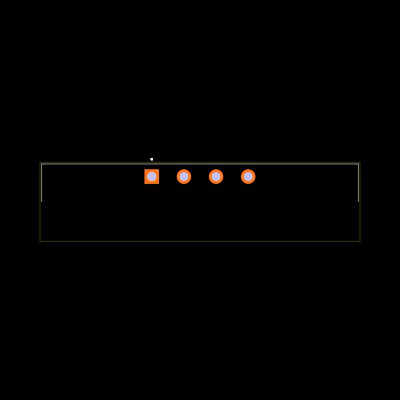

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 1899003
| Part Name | 1899003 |
| Manufacturer | Phoenix Contact |
| Material Of The Contact Coat | Tin |
| Assembly Type | Wave soldering |
| Flammability Rating Of The Insulating Material (based On Ul 94) | V0 |
| Assembly | Threaded joint |
| Product Article Number Of Manufacturer | 1899003 |
| Material Of Insulation | PBT |
| Product Description | Feed-through header |
| Pole Number | 4 |
| Certificate/approval | cULus Recognized, VDE Zeichengenehmigung |
| Height | 20.07 |
| Width | 50.08 |
| Depth | 12 |
| GTIN | 4017918186470 |
| Type Of Interlock | Threaded joint |
| Rated Current (A) | 12 |
| Manufacturer Product Designation | Feed-through header |
| Color Of Housing | green |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet |
No issues have been reported for the 1899003
If you experienced any issues with the symbol or footprint, please report it.
