1903166-1
0.5/1.5 58POS CAP ASSY DIP BOARD LOCK
Availability: Out of Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 1903166-1 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
2D Model
The 2D model for this
part is not available

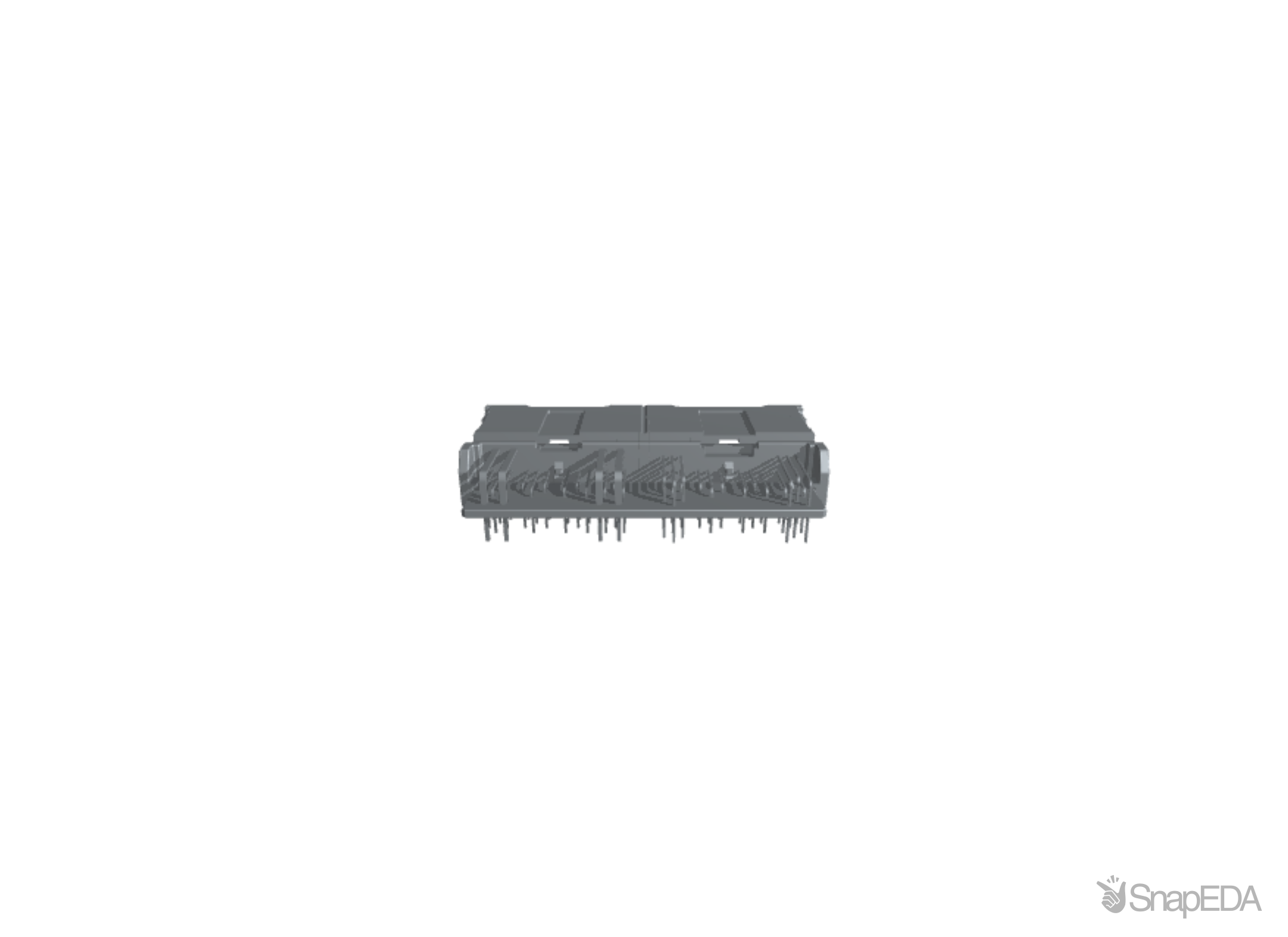

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 1903166-1
| Part Name | 1903166-1 |
| Manufacturer | TE Connectivity |
| Centerline (Pitch) | .063 |
| Circuit Application | Signal |
| UL Flammability Rating | None |
| Width | 2.551 |
| Operating Voltage (V) | 12 |
| Connector & Contact Terminates To | Printed Circuit Board |
| PCB Mount Retention Type | Boardlock |
| PCB Mount Retention | With |
| Tab Thickness | .4 |
| PCB Thickness (Recommended) | .063 |
| Operating Temperature (Max) | 185 |
| TE Internal Number | 1903166-1 |
| Number of Positions | 58 |
| PCB Mount Alignment | Without |
| Number of Rows | 3 |
| Termination Method | Through Hole - Solder |
| Number of Signal Positions | 58 |
| Sealable | No |
| Hybrid Header | Yes |
| Nominal Voltage Architecture (V) | 12 |
| Mounting Orientation | Horizontal/90 |
| Operating Temperature Range | -22 to 185 |
| Shielded | No |
| Mounting Holes | Without |
| Locking Interface | With |
| Length | 33.7 |
| Voltage Rating (Max) (V) | 12 |
| Tab Width | .02 |
| Color | Natural |
| Number of Sections | 2 |
| Profile Height from PCB | 11.8 |
| Packaging Type | Tube |
| Panel Mount Feature | Without |
| Interface Plating | Gold (Au) |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
