PCB Terminal Screw 10.16mm 6AWG 1000V 76A 2 Position Combicon Power Series | Phoenix Contact 1929517
Availability: Out of Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 1929517 by Phoenix Contact and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model

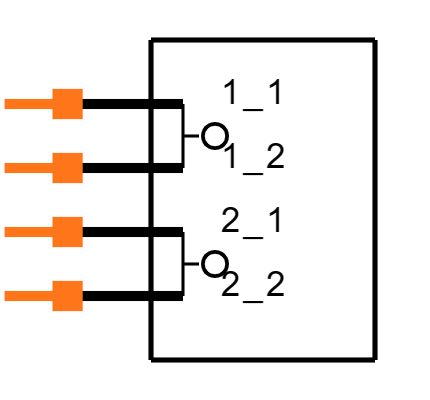

Symbol
No web preview
This Symbol is Available for

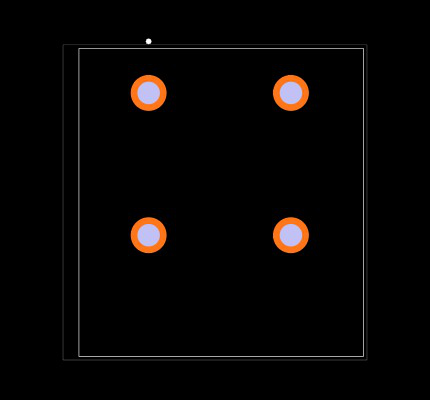

Footprint
No web preview
This Footprint is Available for

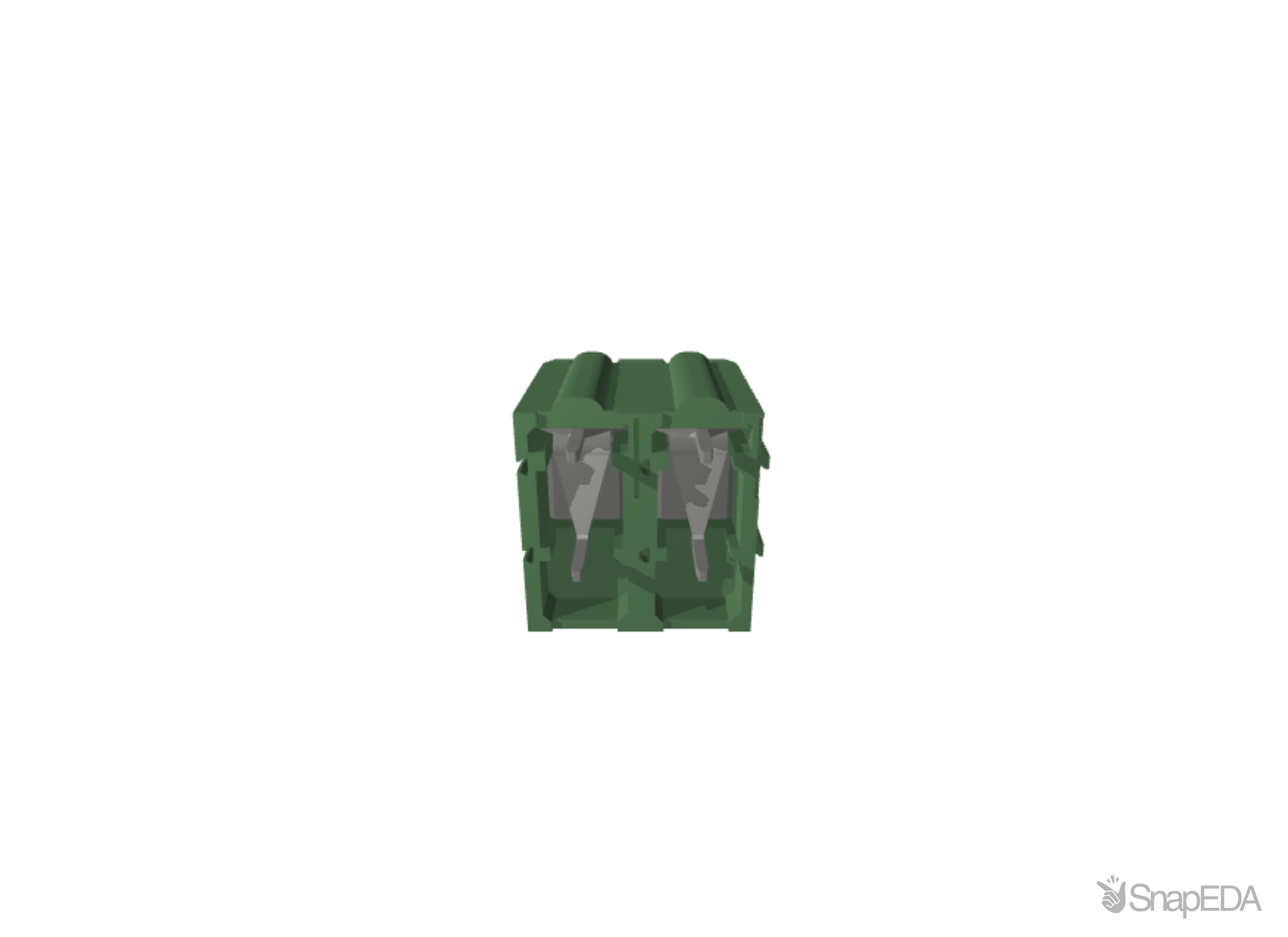

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 1929517
| Part Name | 1929517 |
| Manufacturer | Phoenix Contact |
| Category | Connectors |
| Assembly Type | Print mounting |
| Min. Operating Temperature | -40 |
| Product Article Number Of Manufacturer | 1929517 |
| Product Description | PCB terminal block |
| Max. Connectable Conductor Cross-section Multiple Wire | 4 |
| Max. Operating Temperature | 100 |
| Max. Line Cross Section, Rigid | 16 |
| Height | 35.8 |
| Width | 20.32 |
| Depth | 22 |
| Flammability Rating Of The Insulating Material (based On Ul 94) | V0 |
| GTIN | 4017918819637 |
| Net Weight | 0.01686 |
| Manufacturer Product Designation | PCB terminal block |
| Number Of The Executions Of The Housing Parts | 0 |
| Application Standards | IECÂ 60998-2-1 (in parts) |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Current Rating (A) | 76 (A) |
| Mounting Type | Through Hole |
| Voltage Rating (V) | 1 kV |
| Series | MKDSP 10HV/ 2-10.16 |
| Colour | Green |
| Material | Polyamide |
| Termination Method | Screw |
| Length | 22 (mm) |
| Pitch | 10.16 (mm) |
| Number Of Contacts | 2 |
| Type | PCB Terminal Block |
