Pin Strip 5mm 16AWG 320V 12A 4 Position COMBICON PST Series | Phoenix Contact 1933202
Availability: In Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 1933202 by Phoenix Contact and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model

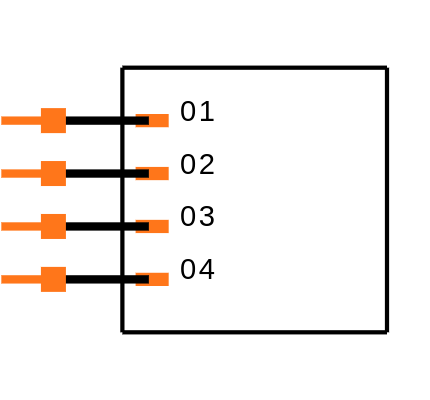

Symbol
No web preview
This Symbol is Available for

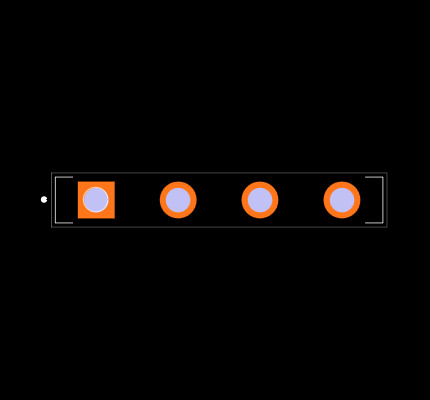

Footprint
No web preview
This Footprint is Available for

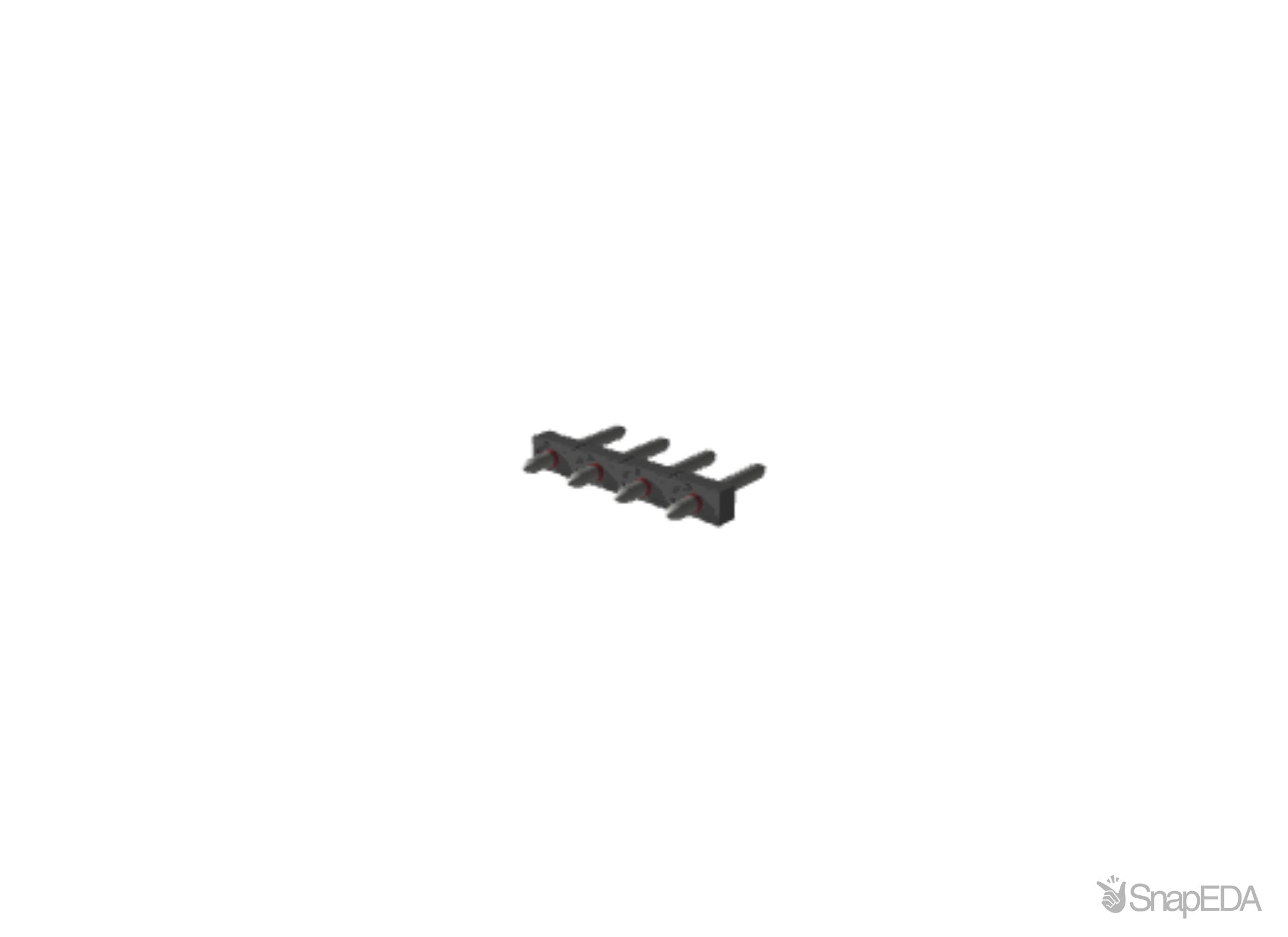

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 1933202
| Part Name | 1933202 |
| Manufacturer | Phoenix Contact |
| Category | Connectors |
| Assembly Type | THR soldering / wave soldering |
| Flammability Rating Of The Insulating Material (based On Ul 94) | V0 |
| Assembly | plugged-in |
| Material Of Insulation | PA |
| Product Article Number Of Manufacturer | 1933202 |
| Product Description | Pin strip |
| Pole Number | 4 |
| Certificate/approval | cULus Recognized, VDE Gutachten mit Fertigungsüberwachung |
| Height | 13 |
| Width | 20 |
| Depth | 2.8 |
| Type Of Pcb Contacting | THT connection (Wave soldering) |
| Rated Current (A) | 12 |
| Manufacturer Product Designation | Pin strip |
| GTIN | 4017918918699 |
| Application Standards | IECÂ 61984 |
| RoHS | True |
| Color Of Housing | black |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Pitch | 5.0 (mm) |
| Current Rating (A) | 10.0 (A) |
| Mounting Type | Through Hole |
| Voltage Rating (V) | 400.0 V |
| Series | PST 1.3/ 4-5.0 |
| Body Orientation | Straight |
| Pluggable Terminal Block Type | Pin Header |
| Number Of Rows | 1 |
| Termination Method | Solder |
| Number Of Contacts | 4 |
