1934350-1
Conn Backplane HDR 120 POS 1.9mm Press Fit RA Thru-Hole Tube
Availability: In Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 1934350-1 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
2D Model
The 2D model for this
part is not available

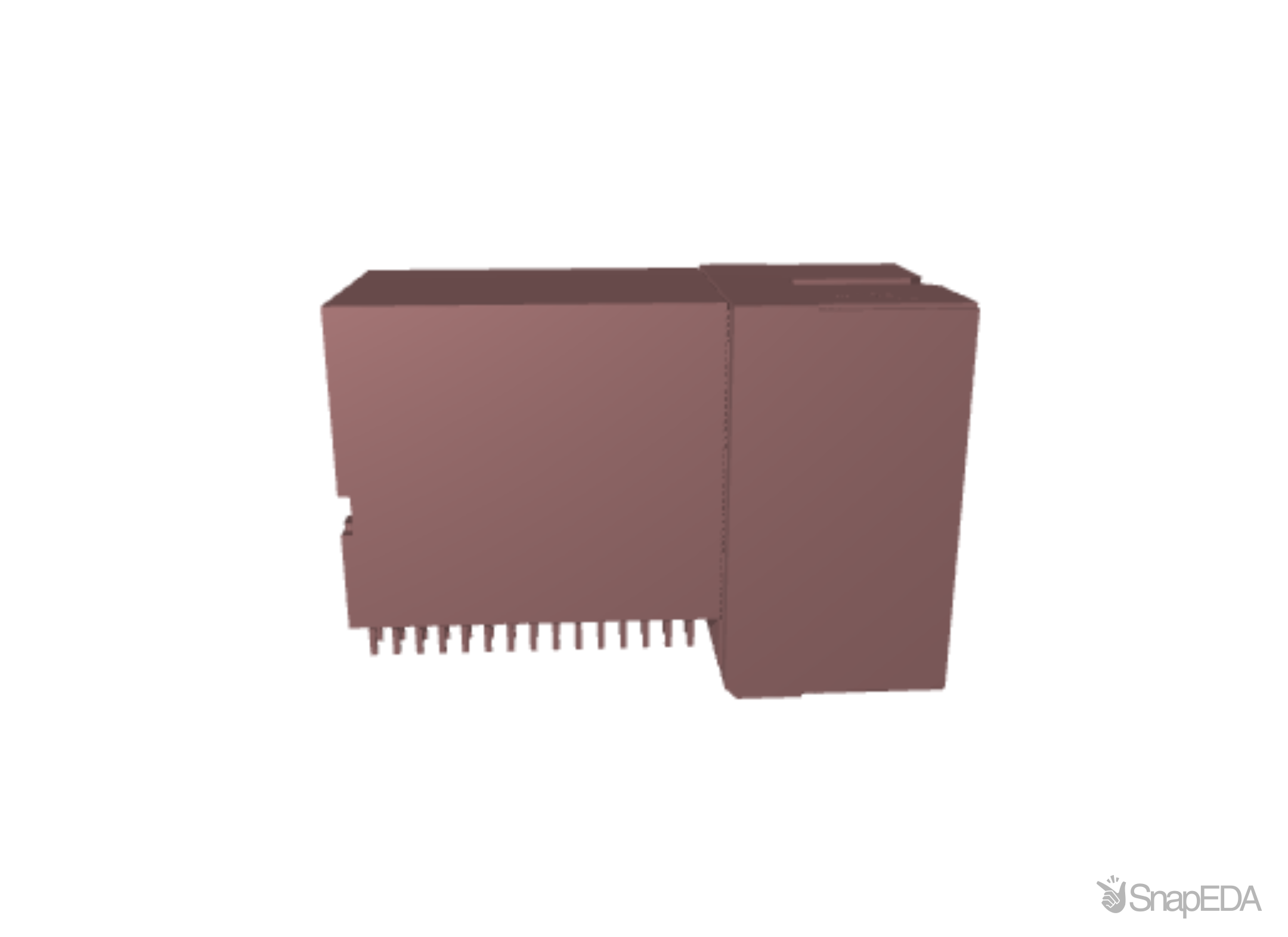

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 1934350-1
| Part Name | 1934350-1 |
| Manufacturer | TE Connectivity |
| Mating Alignment Type | Guide Slot |
| Centerline (Pitch) | 1.9 |
| Contact Length | 6 |
| Circuit Application | Signal |
| Housing Material | LCP (Liquid Crystal Polymer) |
| PCB Hole Diameter | .47 |
| Connector & Contact Terminates To | Printed Circuit Board |
| Operating Voltage (V) | 250 |
| For Use With | Receptacle Assembly |
| Connector Style | Plug |
| UL Rating | Recognized |
| Number of Positions | 120 |
| PCB Mount Retention Type | Action/Compliant Tail |
| Contact Design | Rectangular Post |
| PCB Mount Retention | With |
| PCB Thickness (Recommended) | 1.57 |
| UL Voltage Rating (V) | 250 |
| Signal Arrangement | Differential |
| Number of Differential Pairs per Column | 5 |
| TE Internal Number | 1934350-1 |
| Number of Pairs | 40 |
| PCB Mount Orientation | Right Angle |
| Connector System | Board-to-Board |
| Mating Retention | Without |
| Connector Height | 24.4 |
| Number of Rows | 15 |
| Housing Color | Black |
| Connector Width | 36.61 |
| Data Rate | 10 |
| Number of Signal Positions | 80 |
| Impedance | 100 |
| Contact Base Material | Phosphor Bronze |
| Connector Mounting Type | Board Mount |
| PCB Contact Termination Area Plating Material Thickness | 20 |
| Contact Transmits (Typical) | Signal (Data) |
| Number of Columns | 8 |
| Connector Length | 18.05 |
| UL File Number | E28476 |
| Operating Temperature Range | -65 – 90 |
| Pairs per Column | 5 |
| Packaging Method | Tube |
| Tail Length | 2.2 |
| Connector Type | Header |
| Agency/Standard | UL |
| Differential Impedance | 100 |
| Contact Mating Area Plating Material | Gold |
| Stackable | No |
| Guide Hardware | Without |
| End Wall Location | Dual |
| Termination Method to Printed Circuit Board | Through Hole - Press-Fit |
| Product Type | Connector |
| RoHS | True |
| Shield Material | Phosphor Bronze |
| Mating Alignment | With |
| PCB Mount Alignment | Without |
| Shrouded | Fully Shrouded |
| UL Flammability Rating | UL 94V-0 |
| Row-to-Row Spacing | .055 |
| Contact Current Rating (Max) (A) | .5 |
| PCB Contact Termination Area Plating Material Finish | Matte |
| Contact Type | Pin |
| PCB Contact Termination Area Plating Material | Tin |
| Board-to-Board Configuration | Co-Planar |
| Sealable | No |
| Make First / Break Last | No |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
