PCB Plug Screw 5mm 16AWG 400V 12A 3 Position COMBICON PT Series | Phoenix Contact 1934874
Availability: In Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 1934874 by Phoenix Contact and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
2D Model
The 2D model for this
part is not available

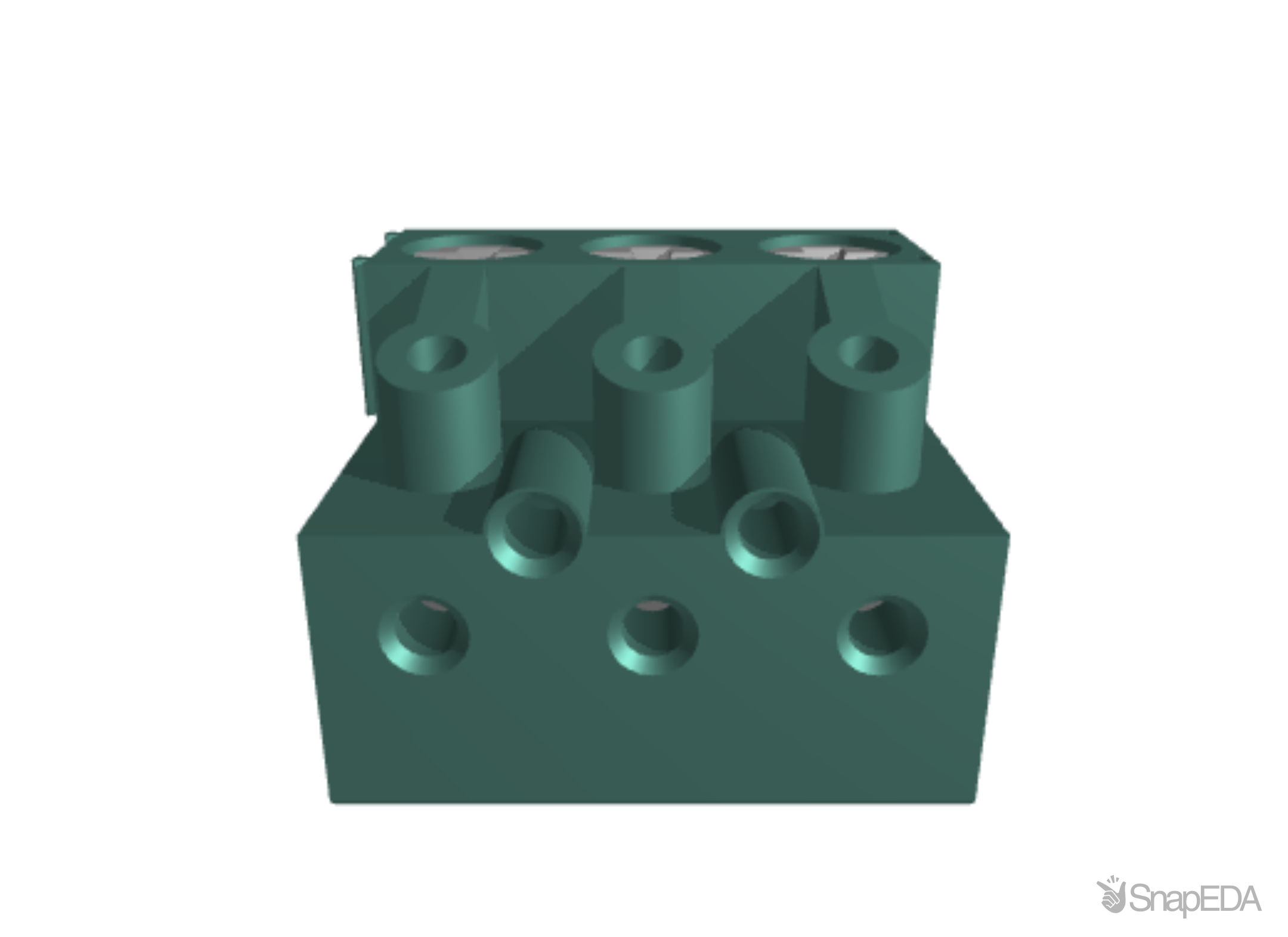

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 1934874
| Part Name | 1934874 |
| Manufacturer | Phoenix Contact |
| Category | Connectors |
| Min. Conductor Cross-section (flexible Wire With Ferrule Without Plastic Collar) | 0.25 |
| Max. Line Cross Section, Rigid | 2.5 |
| Width | 15 |
| GTIN | 4017918916640 |
| Min. Line Cross Section, Flexible | 0.2 |
| Product Description | PCB connector |
| Certificate/approval | IECÂ 61984 |
| Gtin (ean) Code | 4017918916640 |
| Internal Article Number | 1934874 |
| Number Of The Executions Of The Housing Parts | 0 |
| Max. Line Cross Section, Flexible | 2.5 |
| Depth | 15 |
| Flammability Rating Of The Insulating Material (based On Ul 94) | V0 |
| Manufacturer Product Designation | PCB connector |
| RoHS | True |
| Down Force Size | PH1+- |
| Material Of Insulation | PA |
| Product Article Number Of Manufacturer | 1934874 |
| Net Weight | 0.003 |
| Height | 11.4 |
| Min. Line Cross Section, Rigid | 0.2 |
| Application Standards | IECÂ 61984 |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Pitch | 5 (mm) |
| Current Rating (A) | 15 (A) |
| Mounting Type | Cable Mount |
| Pluggable Terminal Block Type | Plug |
| Series | PT 1.5/ 3-PVH-5.0 |
| Colour | Green |
| Material | Nylon |
| Voltage Rating (V) | 630 V |
| Number Of Rows | 1 |
| Contact Plating | Tin |
| Termination Method | Screw |
| Number Of Contacts | 3 |
| Body Orientation | Straight |
