1943/3F BK003

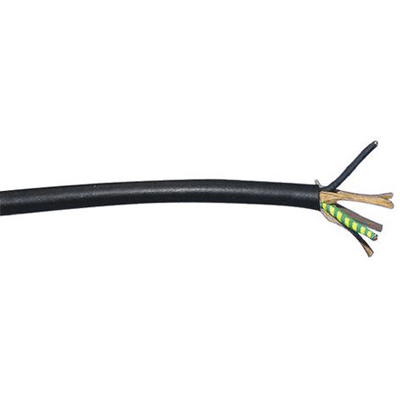

Multiconductor, 3 Cond, 14AWG, 250ft, Shielded F/UTP, Black, 1943/3F Series | Alpha Wire 1943/3F BK003
Availability: Out of Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 1943/3F BK003 by Alpha and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
2D Model
The 2D model for this
part is not available
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 1943/3F BK003
| Part Name | 1943/3F BK003 |
| Manufacturer | Alpha Wire |
| Category | Wire & Cable |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| American Wire Gauge | 14 AWG |
| Number Of Strands | 41 |
| Standards Met | EC 1907/2006 |
| Voltage Rating (V) | 300 V |
| Conductor Material | Bare Copper |
| Series | Alpha Essentials Cords & Cord Sets |
| Size Of Strands | 0.25 mm |
| Cable Type | SJT |
| Core Strands | 41/0.25 mm |
| Sheath Colour | Black |
| Length | 76 (m) |
| Cross Sectional Area | 2.08 mm² |
| Minimum Operating Temperature | -30 (°C) |
| Number Of Cores | 3 |
| Conductor Strand Type | Stranded |
| Maximum Operating Temperature | +105 (°C) |
| Outer Diameter | 9.45 (mm) |
| Insulation Material | PVC |
| Sheath Material | PVC |
