1969730-2
Connector Header Through Hole 2 position 0.098" (2.50mm)
Availability: In Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 1969730-2 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
Symbol
No web preview
This Symbol is Available for

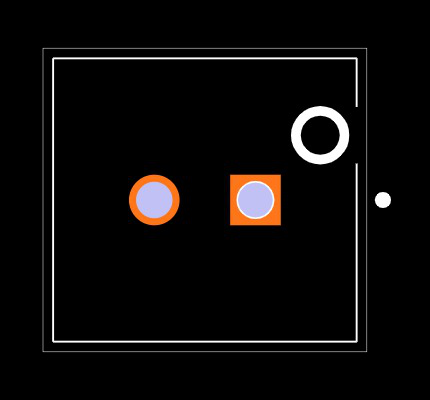

Footprint
No web preview
This Footprint is Available for

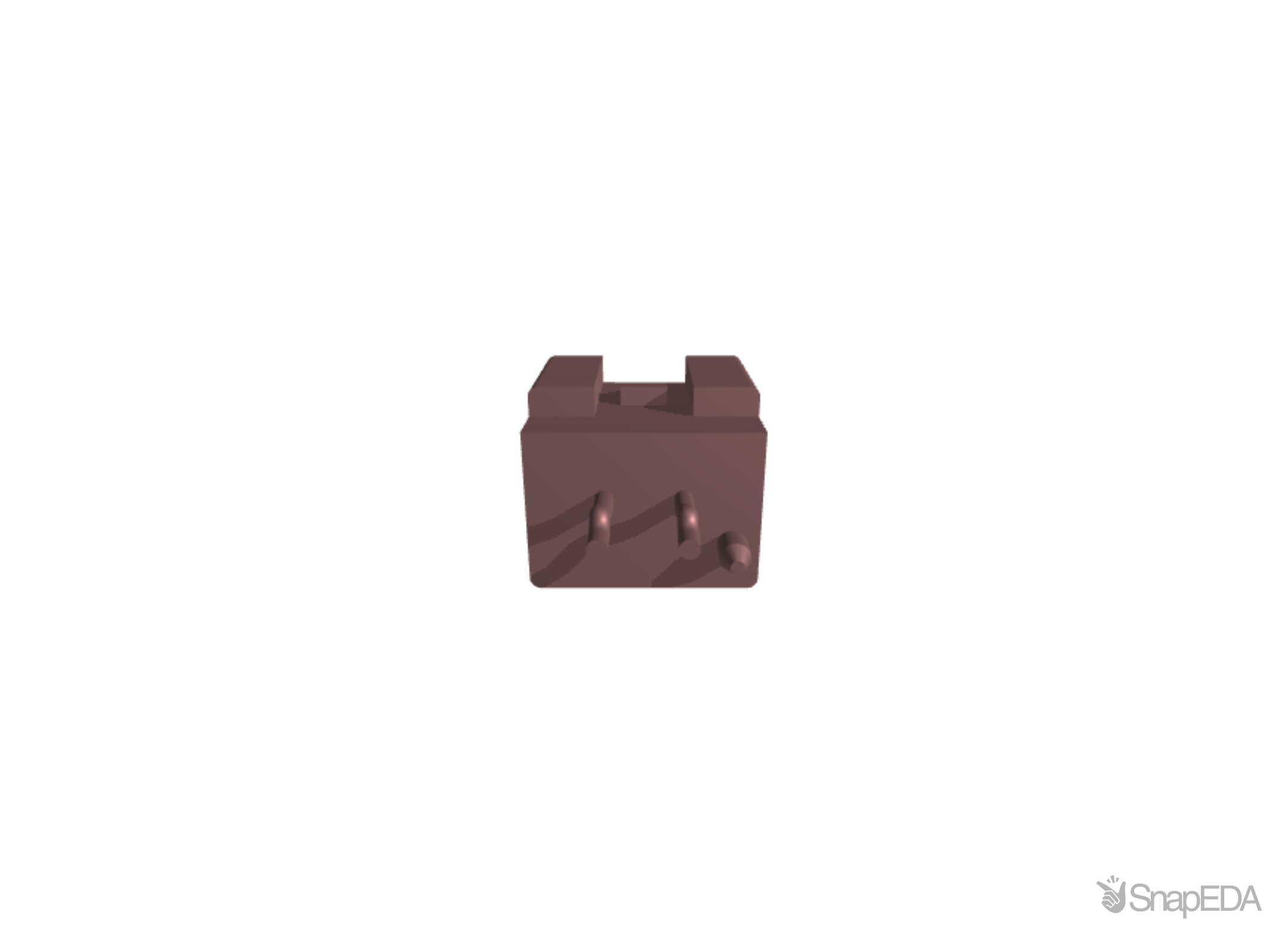

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 1969730-2
| Part Name | 1969730-2 |
| Manufacturer | TE Connectivity |
| Centerline (Pitch) | .098 |
| Circuit Application | Power & Signal |
| Mating Retention | With |
| Connector & Contact Terminates To | Printed Circuit Board |
| PCB Mount Alignment Type | Locating Posts |
| Number of Positions | 2 |
| PCB Mount Retention Type | Kinked Solder Tails |
| PCB Mount Retention | With |
| Housing Material | PBT GF |
| Contact Current Rating (Max) (A) | 4.2 |
| TE Internal Number | 1969730-2 |
| PCB Mount Orientation | Vertical |
| Connector System | Wire-to-Board |
| Number of Rows | 1 |
| Housing Color | Natural |
| Header Type | Shrouded |
| Contact Mating Area Plating Material Finish | Bright |
| Sealable | No |
| Connector Mounting Type | Board Mount |
| Termination Method to Wire & Cable | Crimp |
| Operating Temperature Range | -67 – 221 |
| Contact Underplating Material | Nickel |
| Packaging Method | Bag & Box |
| Contact Mating Area Plating Material | Tin |
| RoHS | True |
| Life Cycle Status | End of Life |
| Termination Method to Printed Circuit Board | Through Hole - Solder |
| 端子の下地めっきの材料 | Nickel |
| PCB Mount Alignment | With |
| UL Flammability Rating | UL 94V-0 |
| Contact Mating Area Plating Material Thickness | 80 – 200 |
| PCB マウント アラインメント タイプ | Locating Posts |
| PCB Connector Assembly Type | PCB Mount Header |
| Contact Type | Pin |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
Inventory for the 1969730-2 by TE Connectivity from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
|
14,400 x $0.09
|
Visit Site |
No issues have been reported for the 1969730-2
If you experienced any issues with the symbol or footprint, please report it.
