1977887-1

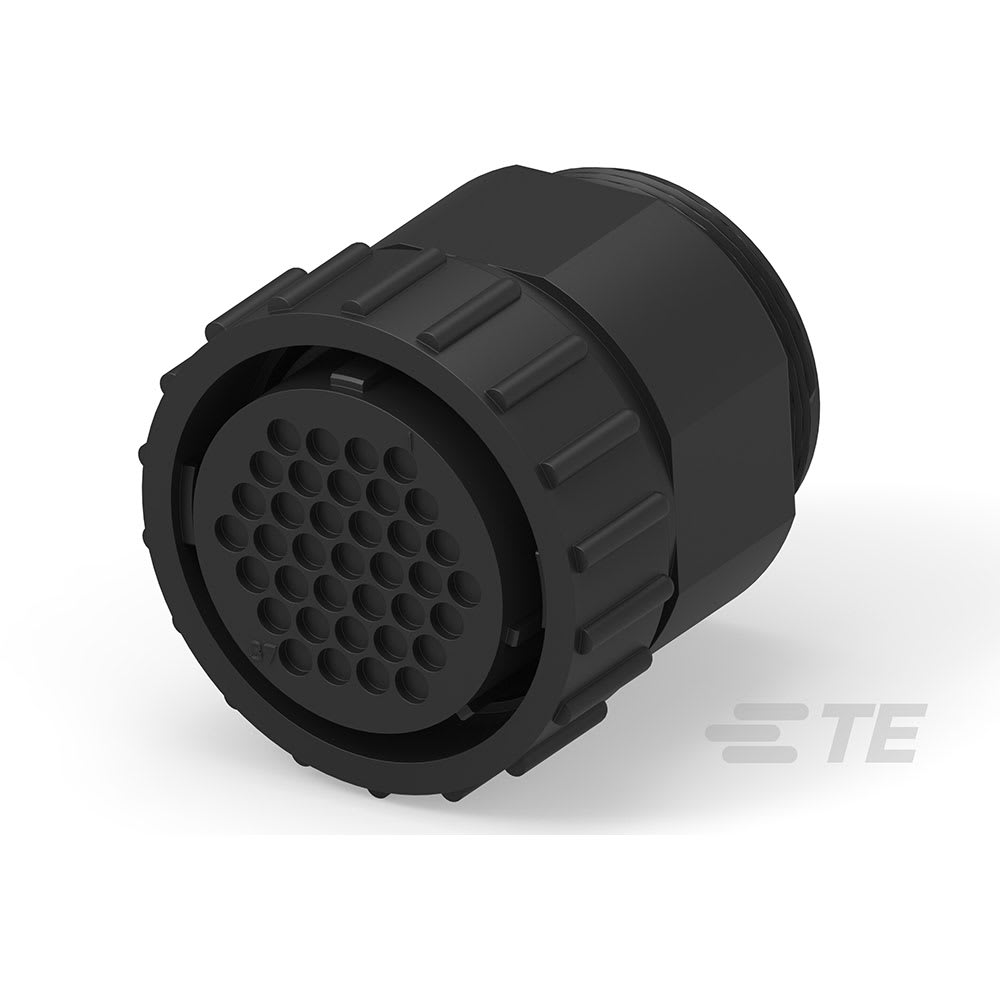

Conn. Housing;CPC Plug;Sealed UV Res;Socket;37 Pos;Sz 23;Free Hanging;Std Gender | TE Connectivity 1977887-1
Availability: Out of Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 1977887-1 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
2D Model
The 2D model for this
part is not available
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 1977887-1
| Part Name | 1977887-1 |
| Manufacturer | TE Connectivity |
| Category | Connectors |
| Mating Alignment Type | Keyed |
| Keying | A |
| Contact Protection | With |
| Circuit Application | Signal |
| UL Flammability Rating | UL 94V-0 |
| Mating Retention | With |
| Number of Power Positions | 0 |
| Operating Voltage (V) | 600 |
| Shell Size | 23 |
| Seal Type | Wire Entry Seal |
| Connector & Contact Terminates To | Wire & Cable |
| VDE Tested | No |
| Screw & Hole Thread Size | 1 3/8-18 UNEF-2A |
| TE Internal Number | 1977887-1 |
| Number of Positions | 37 |
| Connector System | Wire-to-Wire |
| Housing Type | Plug |
| Housing Color | Black |
| Number of Signal Positions | 37 |
| Product Type | Housing |
| Reverse Numbering | Without |
| Operating Temperature Range | -67 – 221 |
| Shielded | No |
| Body Orientation | Straight |
| Packaging Method | Package |
| Packaging Quantity | 1 |
| Fluid Resistance | Immersion |
| Mating Alignment | With |
| RoHS | True |
| Housing Material | Nylon (UV Resistant) |
| Sealable | Yes |
| Reverse Gender | Standard |
| Shell Type | All Plastic |
| Mating Retention Type | Threaded Coupling |
| Panel Mount Feature | Without |
| Contact Type | Socket |
