1986374-6
6 Position Terminal Block Plug, Female Sockets 0.150" (3.81mm) - 90° Free Hanging (In-Line)
Availability: In Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 1986374-6 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
2D Model
The 2D model for this
part is not available

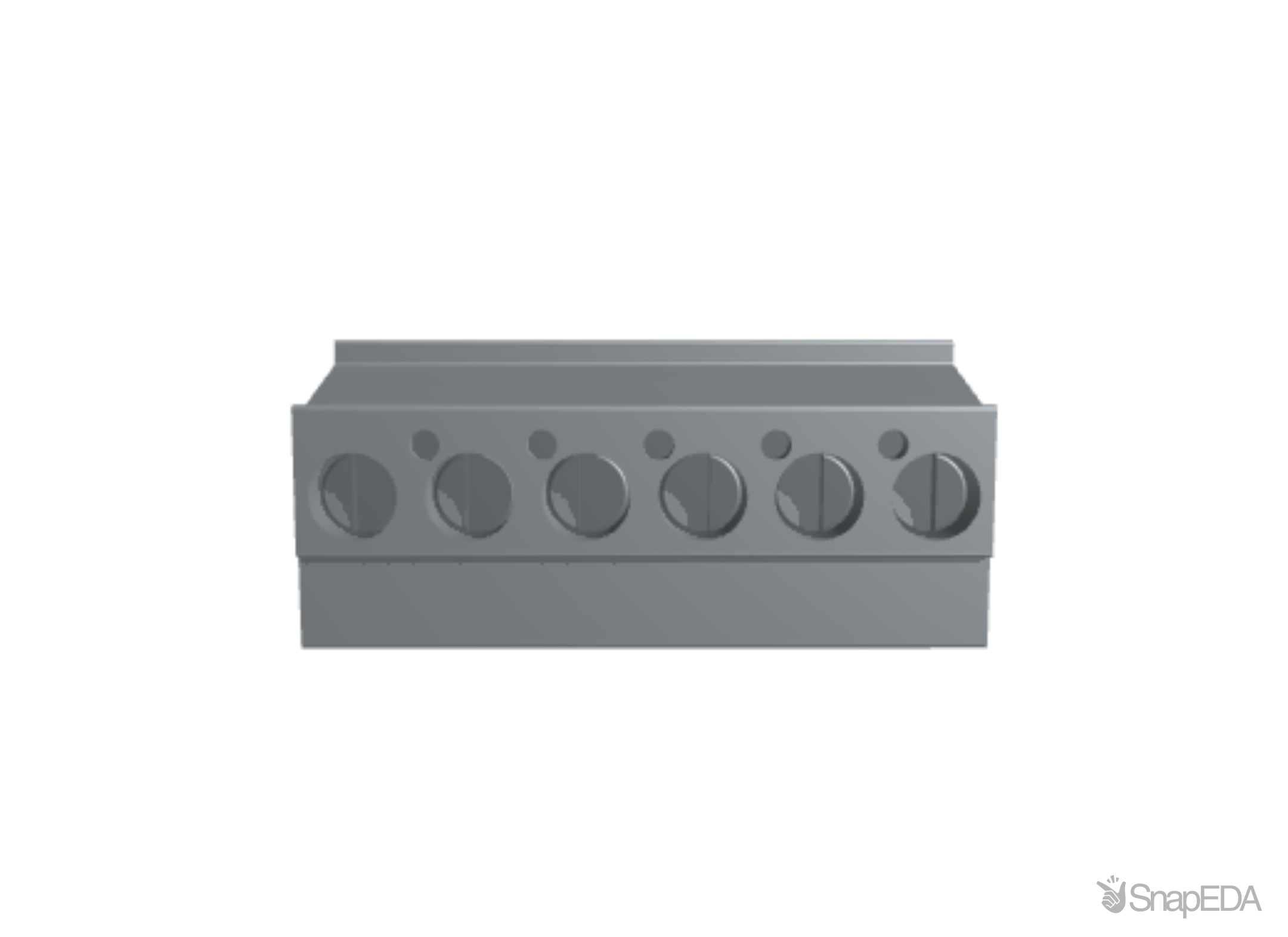

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 1986374-6
| Part Name | 1986374-6 |
| Manufacturer | TE Connectivity |
| Centerline (Pitch) | .15 |
| Circuit Application | Power & Signal |
| Housing Material | PA 66 |
| Screw Plating Material | Nickel |
| Screw Flange | Without |
| Screw Size | M2 |
| Connector Style | Plug |
| Connector & Contact Terminates To | Wire & Cable |
| Stacking Configuration | Side Stackable |
| Current Rating (Max) (A) | 11 |
| Screw Material | Brass |
| TE Internal Number | 1986374-6 |
| Number of Positions | 6 |
| Connector System | Wire-to-Board |
| Screwless Terminal Block | No |
| Number of Rows | 1 |
| Housing Color | Green |
| Contact Base Material | Phosphor Bronze |
| Operating Temperature Range | -40 to 221 |
| Packaging Quantity | 100 |
| Contact Mating Area Plating Material | Tin |
| RoHS | True |
| Mounting Angle | Vertical |
| Interlock | Without |
| Wire Entry Angle | Side |
| Contact Current Rating (Max) (A) | 11 |
| Block Type | Stacking Plug |
| Voltage (V) | 300 |
| Wire Size | 30 14 |
| Wire Protection | With |
