1990779
SnapVerified
PCB Terminal Push-In 3.5mm 16AWG 200V 17.5A 6 Position COMBICON SPT Series | Phoenix Contact 1990779
Availability: Out of Stock
CAD Models: Symbol and Footprint
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 1990779 by Phoenix Contact and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for

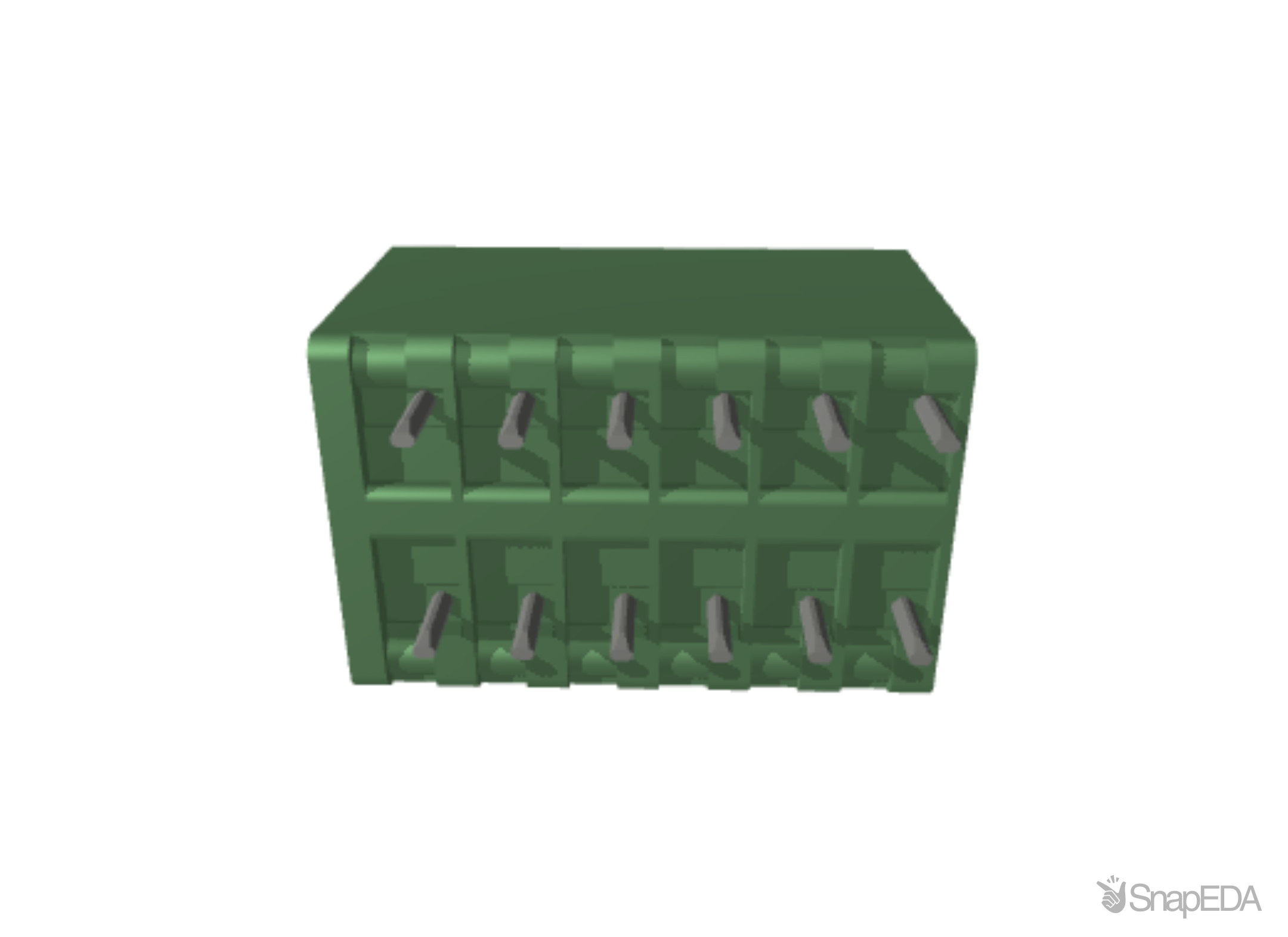

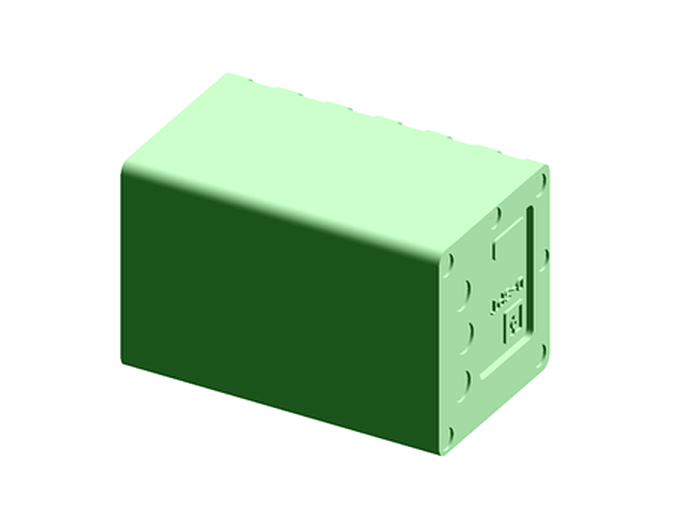

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 1990779
| Part Name | 1990779 |
| Manufacturer | Phoenix Contact |
| Category | Connectors |
| Assembly Type | Print mounting |
| Min. Operating Temperature | -40 |
| Product Article Number Of Manufacturer | 1990779 |
| Product Description | PCB terminal block |
| Max. Operating Temperature | 105 |
| Max. Line Cross Section, Rigid | 1.5 |
| Height | 16 |
| Certificate/approval | cULus Recognized, VDE Zeichengenehmigung |
| Width | 22.4 |
| Depth | 14.4 |
| Flammability Rating Of The Insulating Material (based On Ul 94) | V0 |
| GTIN | 4046356104418 |
| Net Weight | 0.00525 |
| Manufacturer Product Designation | PCB terminal block |
| Min. Line Cross Section, Rigid | 0.2 |
| Number Of The Executions Of The Housing Parts | 0 |
| Application Standards | IECÂ 60947-7-4 |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Current Rating (A) | 17.5 (A) |
| Mounting Type | Through Hole |
| Voltage Rating (V) | 160 V |
| Series | SPT 1.5/ 6-H-3.5 |
| Body Orientation | Straight |
| Termination Method | Spring Cage |
| Length | 22.4 (mm) |
| Width | 13.5 (mm) |
| Depth | 14.4 (mm) |
| Number Of Rows | 1 |
| Pitch | 3.5 (mm) |
| Number Of Contacts | 6 |
| Type | PCB Terminal Block |
No issues have been reported for the 1990779
If you experienced any issues with the symbol or footprint, please report it.
