PCB Terminal Screw 5.08mm 12AWG 400V 20A 4 Position Combicon Control Series | Phoenix Contact 1995664
Availability: In Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 1995664 by Phoenix Contact and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for

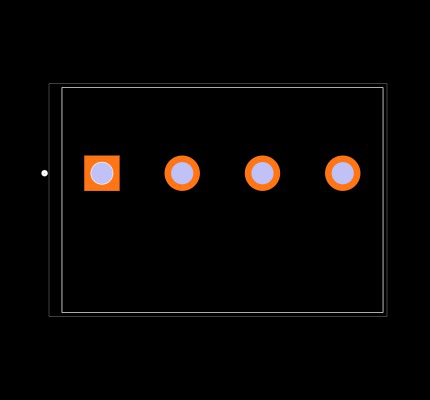

Footprint
No web preview
This Footprint is Available for

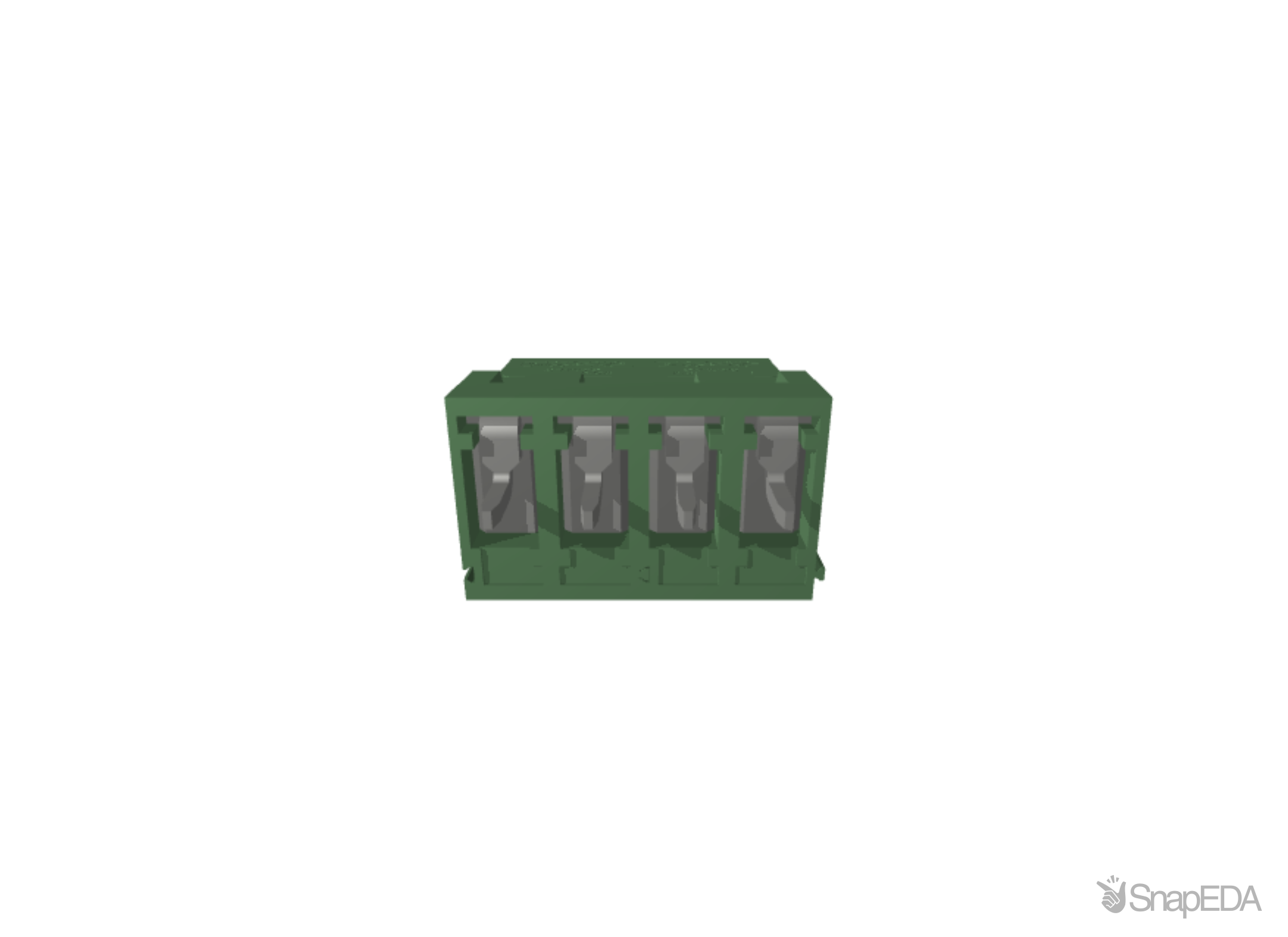

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 1995664
| Part Name | 1995664 |
| Manufacturer | Phoenix Contact |
| Category | Connectors |
| Max. Connectable Conductor Cross-section Multiple Wire | 0.75 |
| Max. Operating Temperature | 105 |
| Max. Line Cross Section, Rigid | 2.5 |
| Width | 20.32 |
| GTIN | 4017918995539 |
| Min. Operating Temperature | -40 |
| Min. Line Cross Section, Flexible | 0.14 |
| Product Description | PCB terminal block |
| Gtin (ean) Code | 4017918995539 |
| Internal Article Number | 1995664 |
| Number Of The Executions Of The Housing Parts | 0 |
| Min. Connectable Conductor Cross-section Multiple Wire | 0.14 |
| Max. Line Cross Section, Flexible | 2.5 |
| Depth | 14.25 |
| Manufacturer Product Designation | PCB terminal block |
| RoHS | True |
| Assembly Type | Print mounting |
| Flammability Rating Of The Insulating Material (based On Ul 94) | V0 |
| Product Article Number Of Manufacturer | 1995664 |
| Net Weight | 0.00952 |
| Height | 22.9 |
| Min. Line Cross Section, Rigid | 0.14 |
| Application Standards | IECÂ 60947-7-4 |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
