1EDP
Corcom Power Line Filter 1EDP=F7687 S0 6609065-1 | TE Connectivity 1EDP
Availability: In Stock
CAD Models: Symbol and Footprint
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 1EDP by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
Symbol
No web preview
This Symbol is Available for

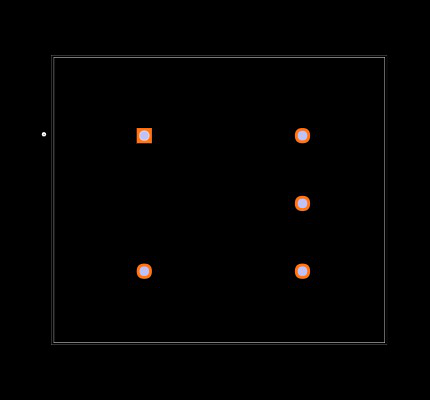

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 1EDP
| Part Name | 1EDP |
| Manufacturer | TE Connectivity |
| Category | Circuit Breakers, Fuses & Protection |
| Mount Style | Printed Circuit Board |
| Current Rating (A) | 1 |
| Operating Temperature Range | -10 – 40 |
| TE Internal Number | 6609065-1 |
| Output Type | PCB Pins .025" Square |
| Leakage Current (Max) (250VAC, 50Hz) (A) | .42 |
| Leakage Current (Max) (120VAC, 60Hz) (A) | .25 |
| Ground Choke Option | No |
| Voltage (Max) (V) | 250 |
| Input Type | PCB Pins .025" Square |
| Filtered | Yes |
| Filter Type | Power Line |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
Inventory for the 1EDP by TE Connectivity from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
99
|
|
Visit Site |
No issues have been reported for the 1EDP
If you experienced any issues with the symbol or footprint, please report it.
