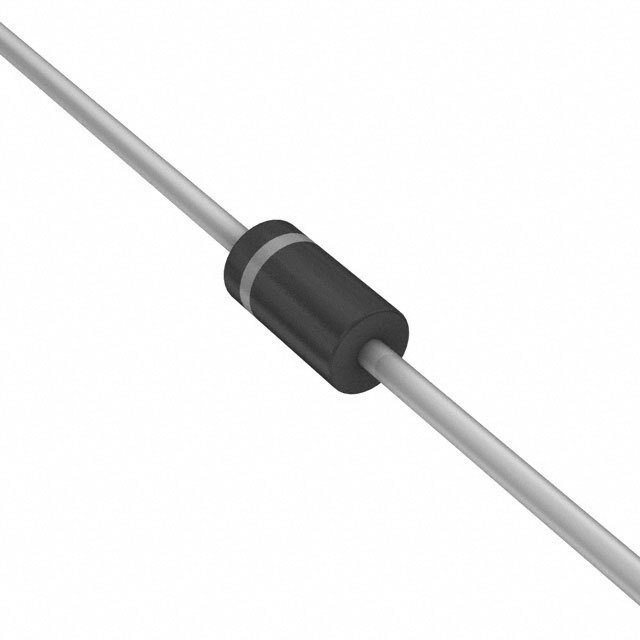

1N456ATR
Diode 30 V 500mA Through Hole DO-204AH (DO-35)
Availability: In Stock
Package Type: DO-35
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 1N456ATR by Onsemi and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for

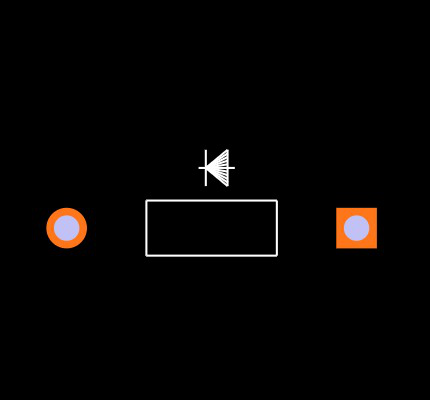

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 1N456ATR
| Part Name | 1N456ATR |
| Manufacturer | ON |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Diameter | 1.91 (mm) |
| Mounting Type | Through Hole |
| Maximum Continuous Forward Current (A) | 500 (mA) |
| Diode Technology | Silicon Junction |
| Maximum Forward Voltage Drop (V) | 1 (V) |
| Rectifier Type | Small Signal |
| Package Type | DO-35 |
| Peak Reverse Repetitive Voltage (V) | 30 (V) |
| Diode Type | Rectifier |
| Diode Configuration | Single |
| Pin Count | 2 |
| Peak Non Repetitive Forward Surge Current (A) | 4 (A) |
| Number Of Elements Per Chip | 1 |
Inventory for the 1N456ATR by Onsemi from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
28,925
|
|
Visit Site | |
|
★ Featured
|
10,852
|
|
Visit Site | |
| Arrow Europe |
30,000
|
30,000 x $0.02
|
Visit Site | |
| Avnet America |
|
|
Visit Site | |
| RS UK |
8,000
|
|
Visit Site | |
| TME |
9,870
|
|
Visit Site | |
| Verical |
15,000
|
|
Visit Site |
No issues have been reported for the 1N456ATR
