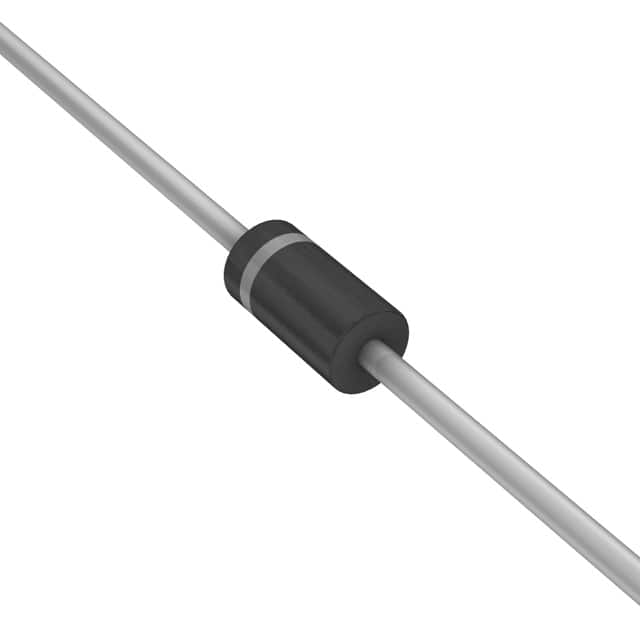

1N4733ATR
Zener Diode Single 5.1V 5% 7Ohm 1000mW 2-Pin DO-41 T/R
Availability: In Stock
Package Type: DO-41
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 1N4733ATR by Onsemi and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for

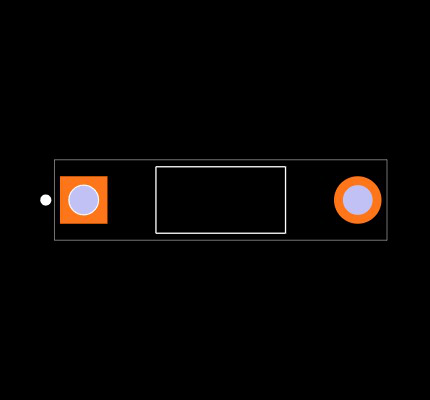

Footprint
No web preview
This Footprint is Available for

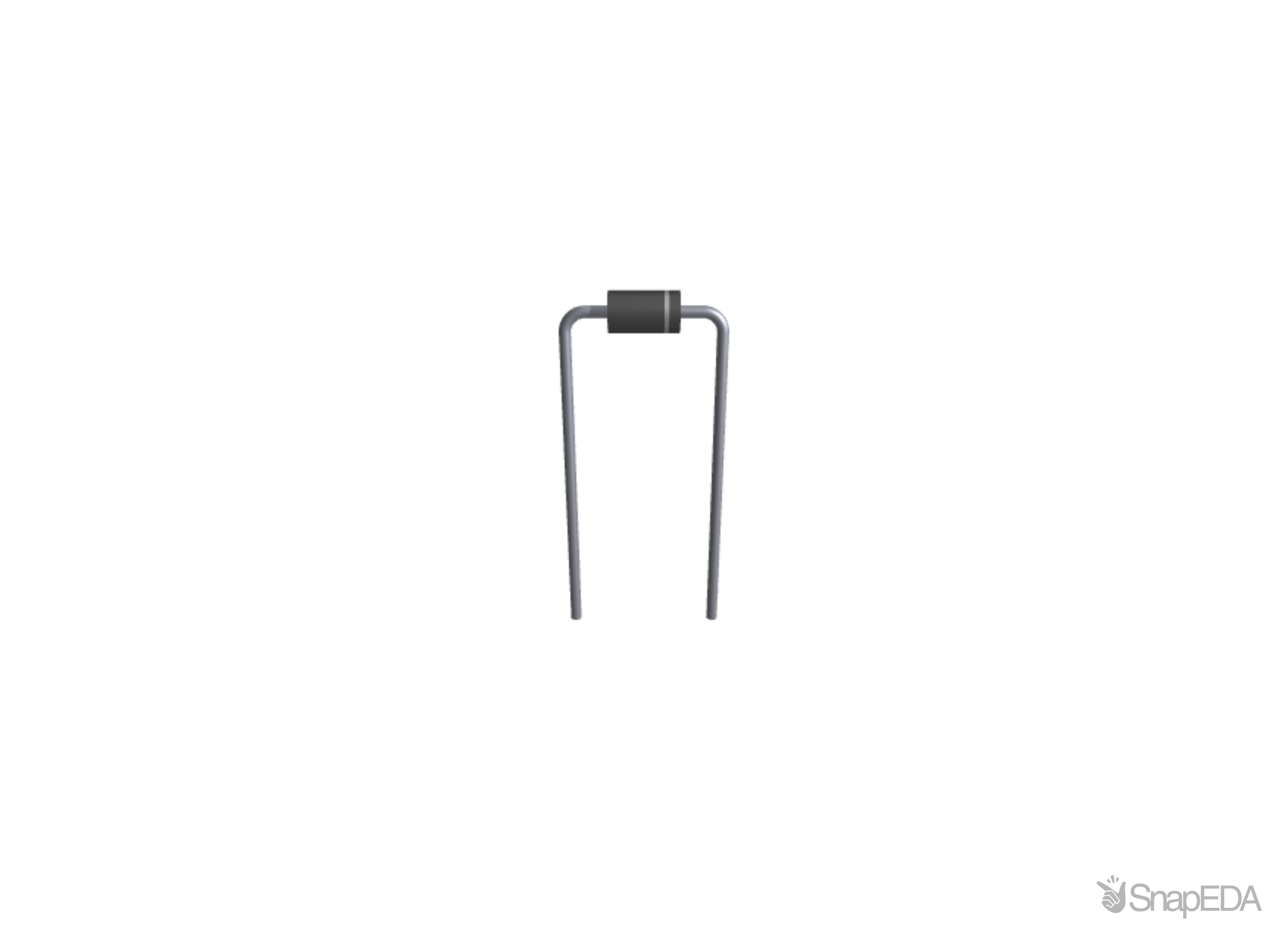

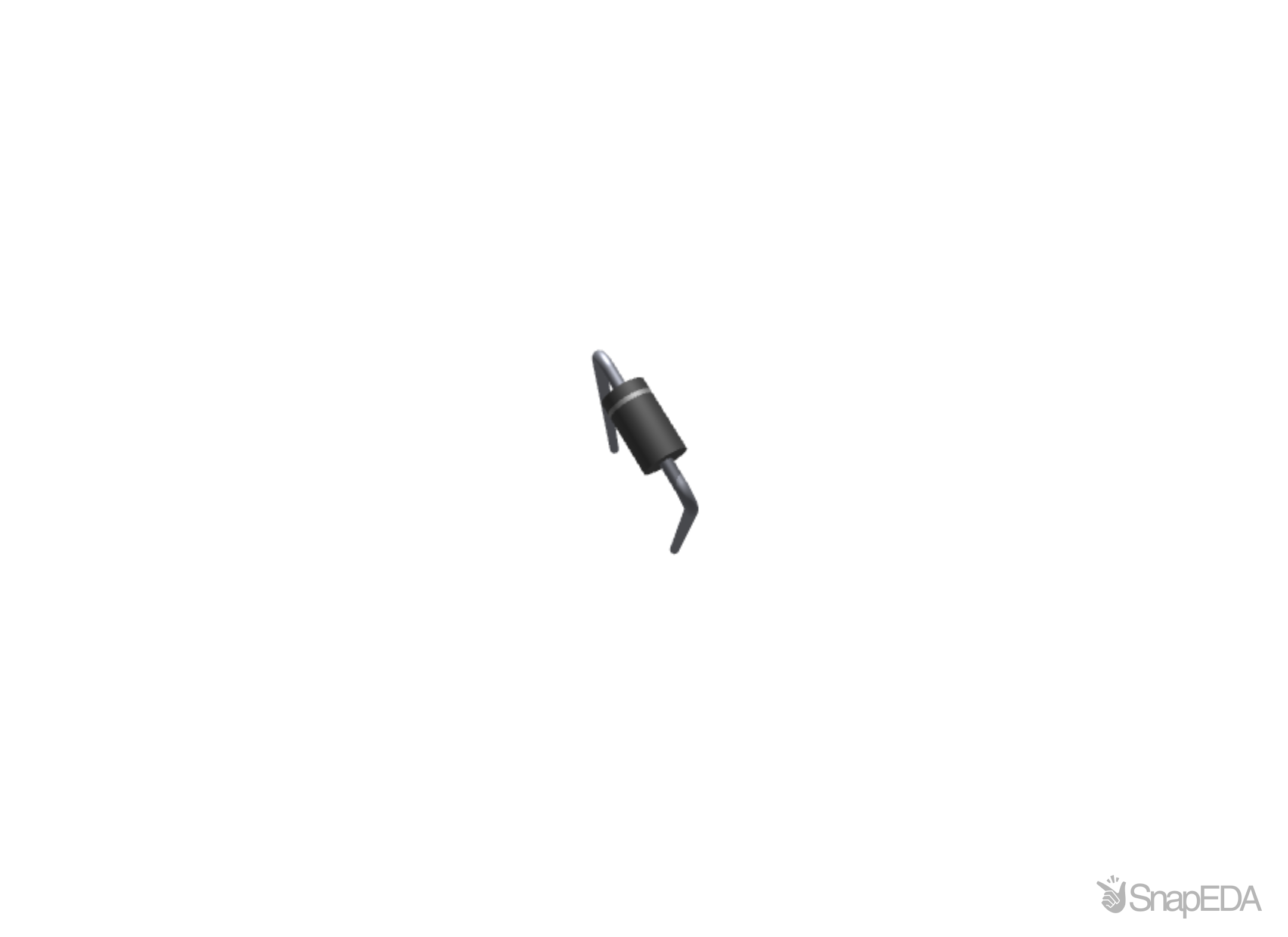

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 1N4733ATR
| Part Name | 1N4733ATR |
| Manufacturer | onsemi |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Nominal Zener Voltage (V) | 5.1 (V) |
| Dimensions | 2.72 (Dia.) x 5.2 (mm) |
| Mounting Type | Through Hole |
| Maximum Power Dissipation | 1 W |
| Diode Configuration | Single |
| Maximum Reverse Leakage Current (A) | 10 (µA) |
| Maximum Zener Impedance | 7 (Ω) |
| Zener Type | General Purpose |
| Number Of Elements Per Chip | 1 |
| Minimum Operating Temperature | -65 °C |
| Package Type | DO-41 |
| Zener Voltage Tolerance (V) | 5 (%) |
| Maximum Operating Temperature | +200 °C |
| Pin Count | 2 |
| Test Current (A) | 49 (mA) |
Inventory for the 1N4733ATR by Onsemi from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
17,821
|
|
Visit Site | |
| Onlinecomponents |
27,000
|
|
Visit Site |
No issues have been reported for the 1N4733ATR
