1N5711
RF Diode Schottky - Single 70V 15 mA 430 mW DO-35
Availability: In Stock
Package Type: DO-35
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 1N5711 by STMicroelectronics and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for

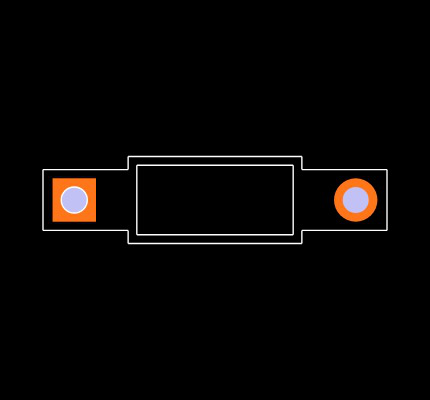

Footprint
No web preview
This Footprint is Available for

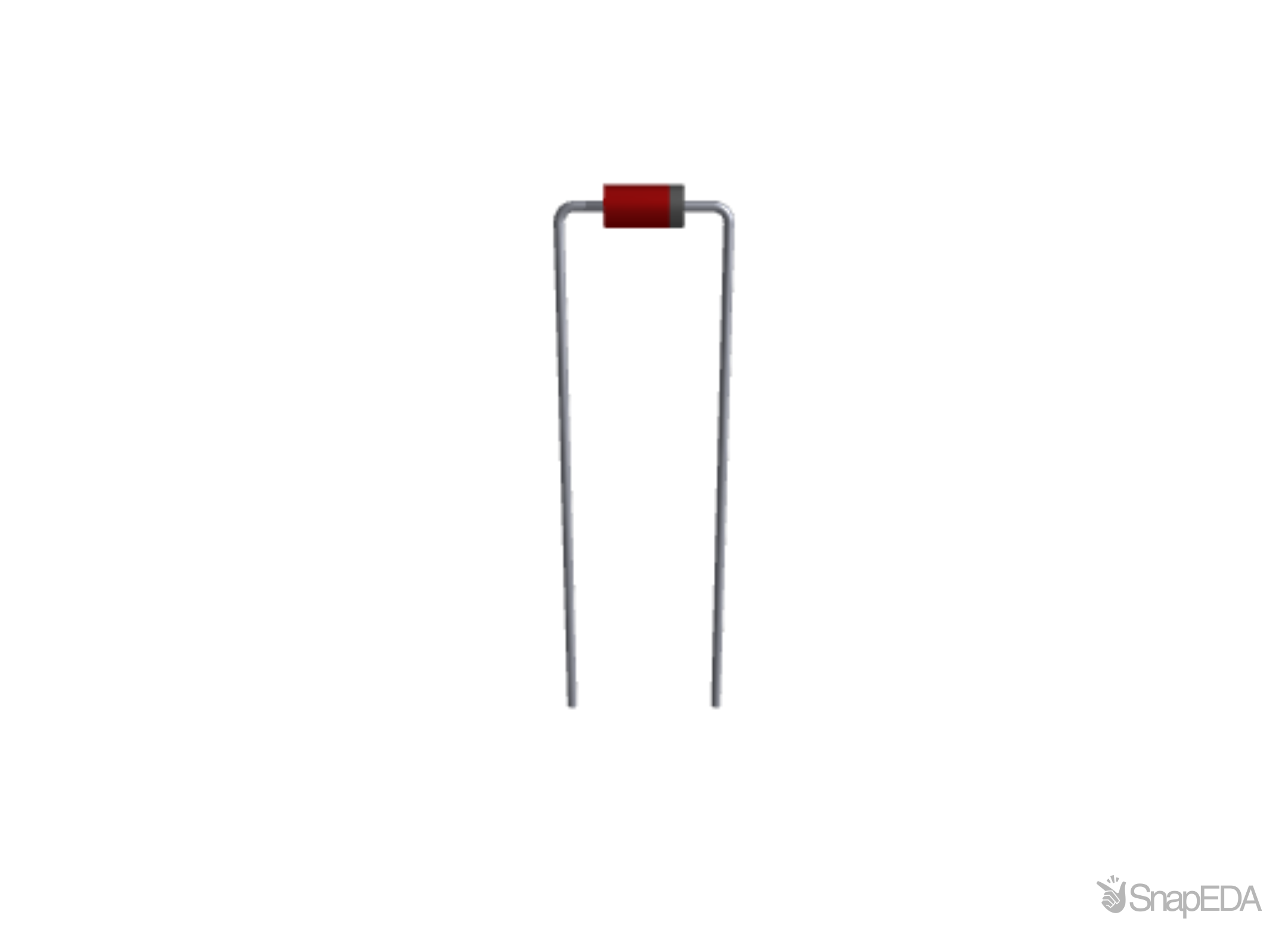

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 1N5711
| Part Name | 1N5711 |
| Manufacturer | STMicroelectronics |
| RoHS | True |
| Life Cycle Status | End of Life |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Diameter | 2 (mm) |
| Mounting Type | Through Hole |
| Maximum Continuous Forward Current (A) | 15 (mA) |
| Diode Technology | Schottky Diode |
| Maximum Forward Voltage Drop (V) | 410 (mV) |
| Rectifier Type | Small Signal |
| Package Type | DO-35 |
| Peak Reverse Repetitive Voltage (V) | 70 (V) |
| Diode Type | Schottky |
| Diode Configuration | Single |
| Pin Count | 2 |
| Number Of Elements Per Chip | 1 |
Inventory for the 1N5711 by STMicroelectronics from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
31,764
|
|
Visit Site | |
|
★ Featured
|
8,058
|
|
Visit Site | |
|
★ Featured
|
41,520
|
7,445 x $0.04
|
Visit Site | |
| Arrow Europe |
224,000
|
4,000 x $0.06
|
Visit Site | |
| Avnet America |
8,000
|
|
Visit Site | |
| Buerklin |
1,274
|
|
Visit Site | |
| Conrad |
1,740
|
|
Visit Site | |
| RS UK |
3,700
|
|
Visit Site | |
| TME |
7,117
|
|
Visit Site | |
| Verical |
28,000
|
12,000 x $0.02
|
Visit Site | |
| element14 Singapore |
|
|
Visit Site |
No issues have been reported for the 1N5711
If you experienced any issues with the symbol or footprint, please report it.
