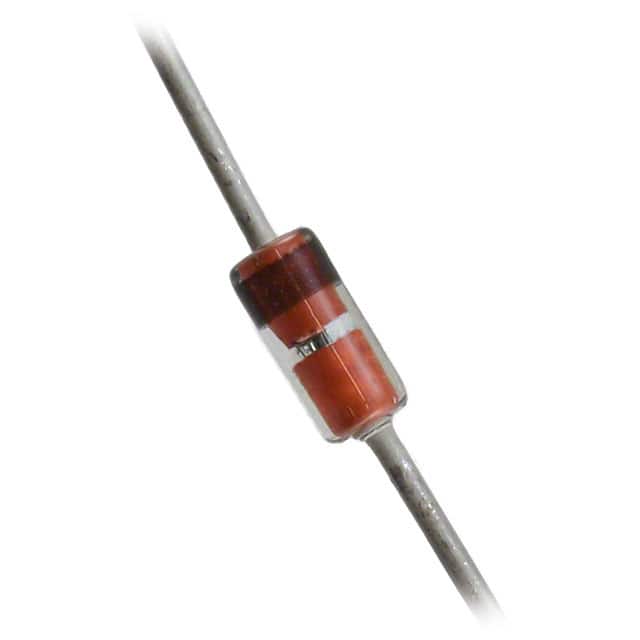

1N916B
Diode 100 V 200mA Through Hole DO-204AH (DO-35)
Availability: In Stock
Package Type: DO-35
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 1N916B by Onsemi and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 1N916B
| Part Name | 1N916B |
| Manufacturer | ON |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Diameter | 1.91 (mm) |
| Mounting Type | Through Hole |
| Rectifier Type | Small Signal |
| Peak Reverse Recovery Time | 4 (ns) |
| Package Type | DO-35 |
| Peak Reverse Repetitive Voltage (V) | 100 (V) |
| Diode Type | Rectifier |
| Maximum Continuous Forward Current (A) | 300 (mA) |
| Diode Configuration | Single |
| Pin Count | 2 |
| Peak Non Repetitive Forward Surge Current (A) | 4 (A) |
| Number Of Elements Per Chip | 1 |
