1NT1-3

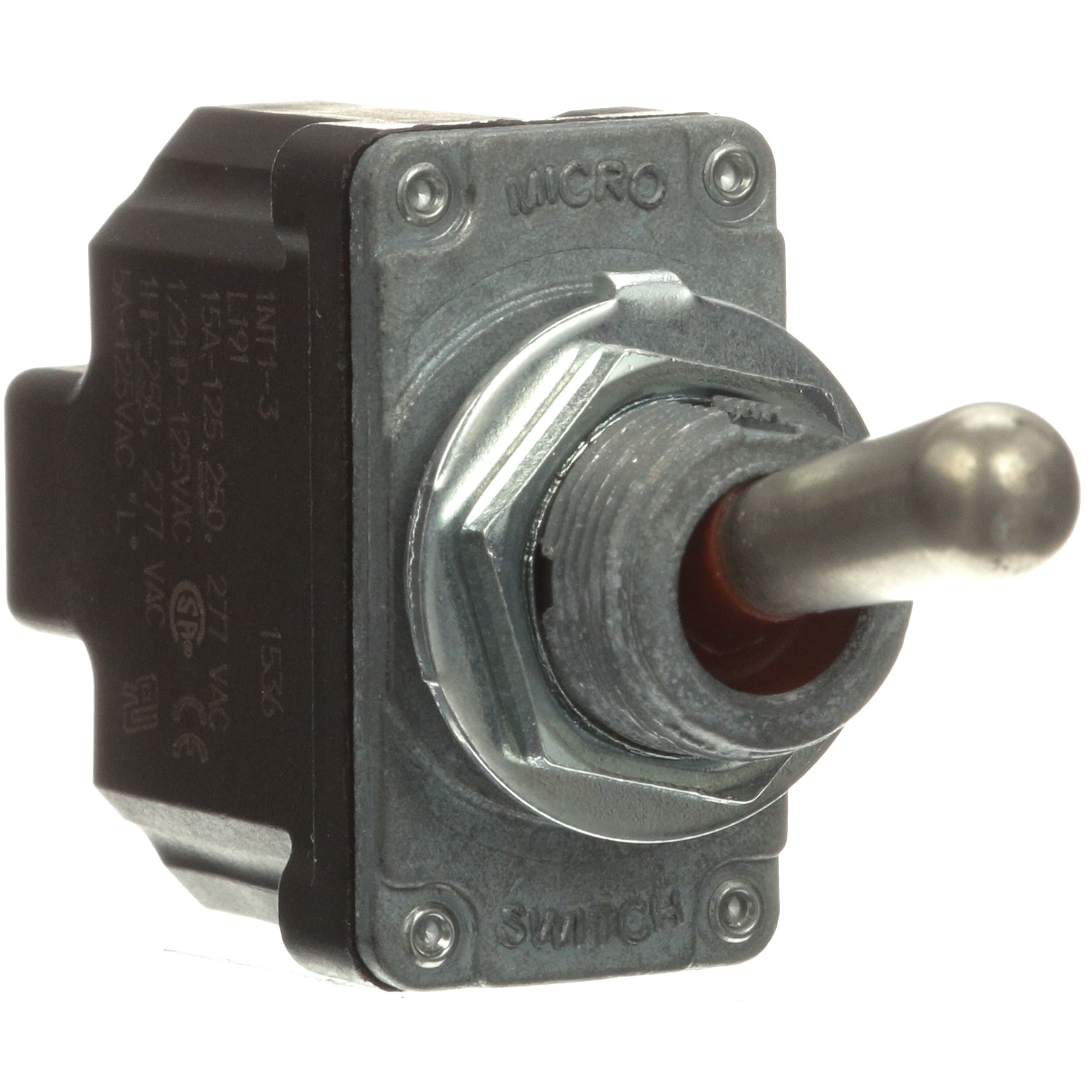

Toggle Switch, SPST, On-None-On, 15 A, 125 VAC, 15/32in., Sealed, NT Series | Honeywell 1NT1-3
Availability: In Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 1NT1-3 by Honeywell and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
2D Model
The 2D model for this
part is not available
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 1NT1-3
| Part Name | 1NT1-3 |
| Manufacturer | Honeywell |
| Category | Switches |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Actuator Length | 17 (mm) |
| Standards Met | CE Certified, CSA, UL |
| Mounting Type | Panel Mount |
| Voltage Rating (V) | 250 V dc, 277 (V ac) |
| Contact Current Rating (A) | 15 A |
| Panel Cut Out Diameter | 12.4 (mm) |
| Ip Rating | IP67, IP68 |
| Contact Configuration | SPDT |
| Illuminated | No |
| Minimum Operating Temperature | -40 (°C) |
| Contact Material | Silver Alloy |
| Terminal Type | Screw |
| Operating Temperature Range | -40 → +71 (°C) |
| Panel Cut Out Size | 12.4 (Dia.) x 11.4 (mm) |
| Maximum Operating Temperature | +71 (°C) |
| Panel Cut Out Width | 11.4 (mm) |
| Switch Operation | On-On |
