1SMA4759
DO-214AC (SMA), 1250mW, 5%, Zener Diode
Availability: Out of Stock
Package Type: SMA-2
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 1SMA4759 by taiwan and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for

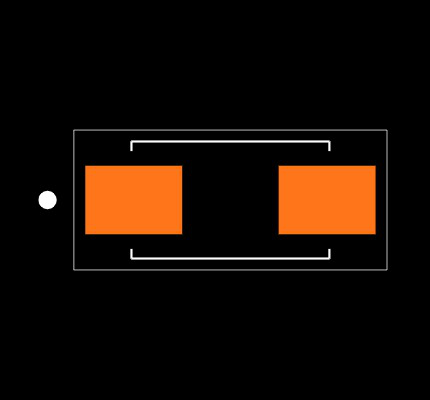

Footprint
No web preview
This Footprint is Available for

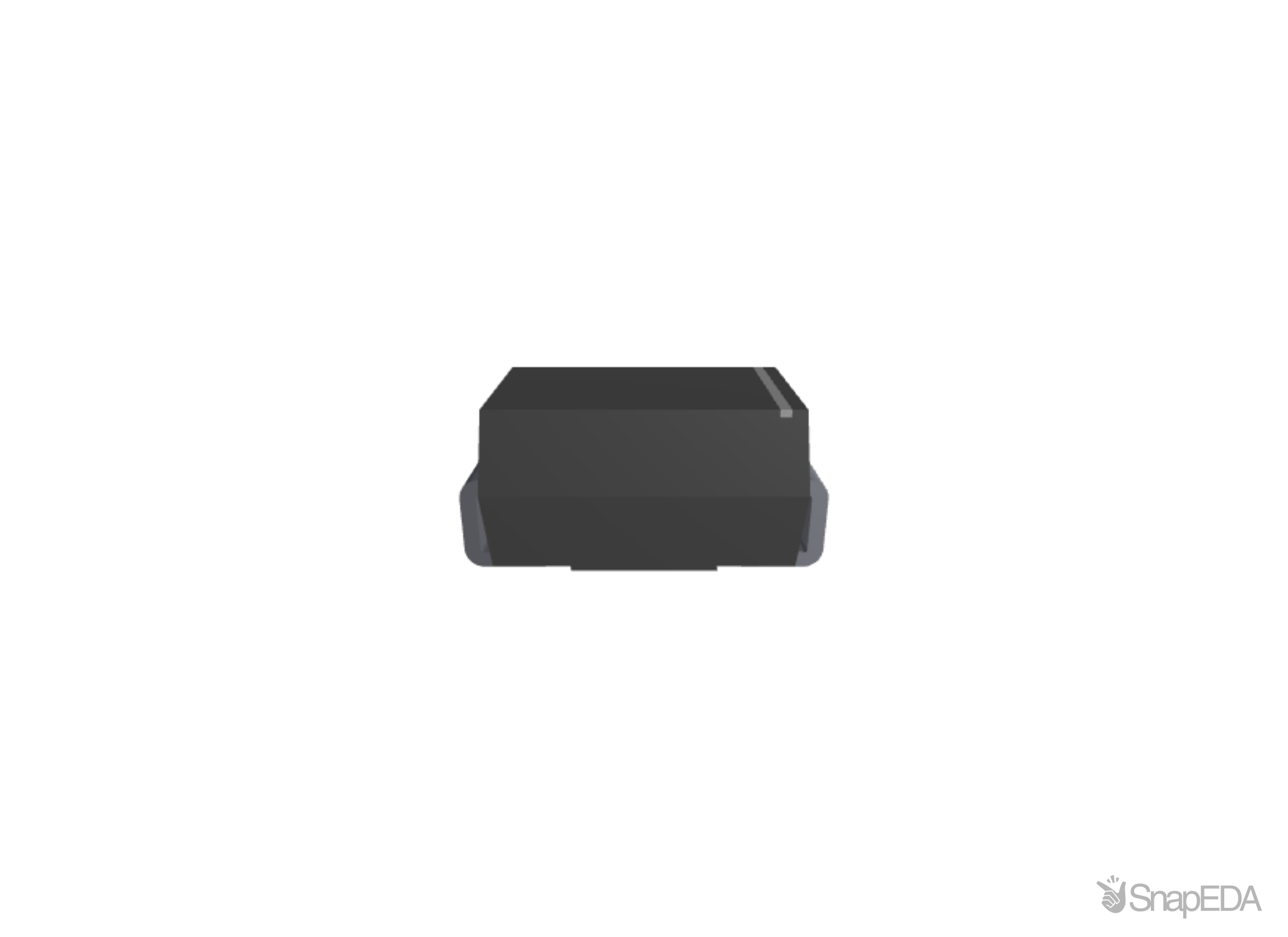

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 1SMA4759
| Part Name | 1SMA4759 |
| Manufacturer | Taiwan Semiconductor |
| Zener Voltage (V) | 62.0 |
| Case Package | DO-214AC (SMA) |
| Moisture Level | 1.0 |
| Zener Test Current (A) | 0.004 |
| Power Dissipation | 1.25 |
| Zener Voltage tolerance (V) | [-5.0, 5.0] |
| Reverse Voltage (V) | 47.1 |
| Maximum Operating Junction Temperature | 175.0 |
| RoHS | True |
| AEC-Q compliant | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
No issues have been reported for the 1SMA4759
