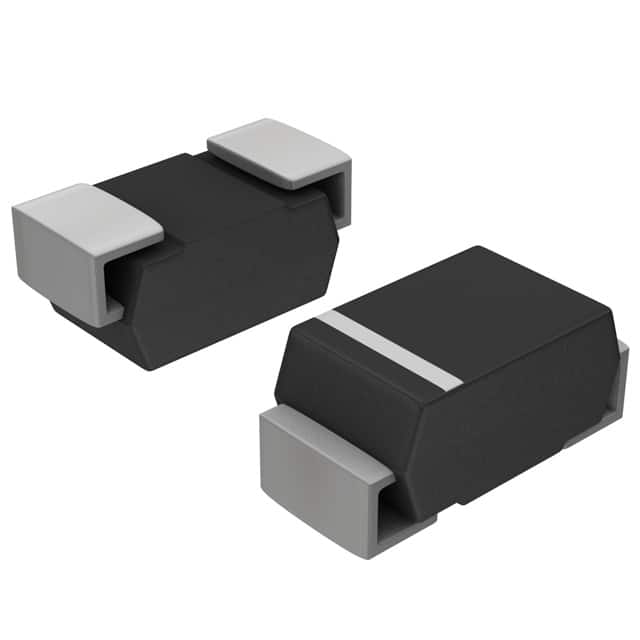

1SMA5913BT3G
Zener Diode Single 3.3V 5% 10Ohm 1500mW 2-Pin SMA T/R
Availability: In Stock
Package Type: SMA-2
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 1SMA5913BT3G by Onsemi and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
Symbol

No web preview
This Symbol is Available for

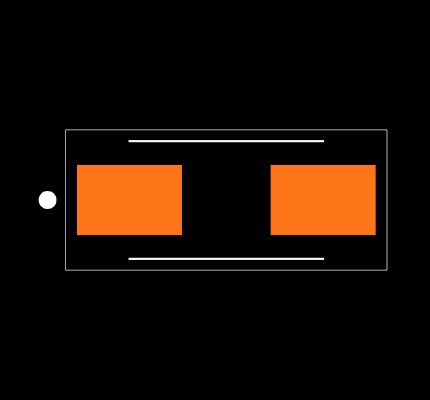

Footprint

No web preview
This Footprint is Available for

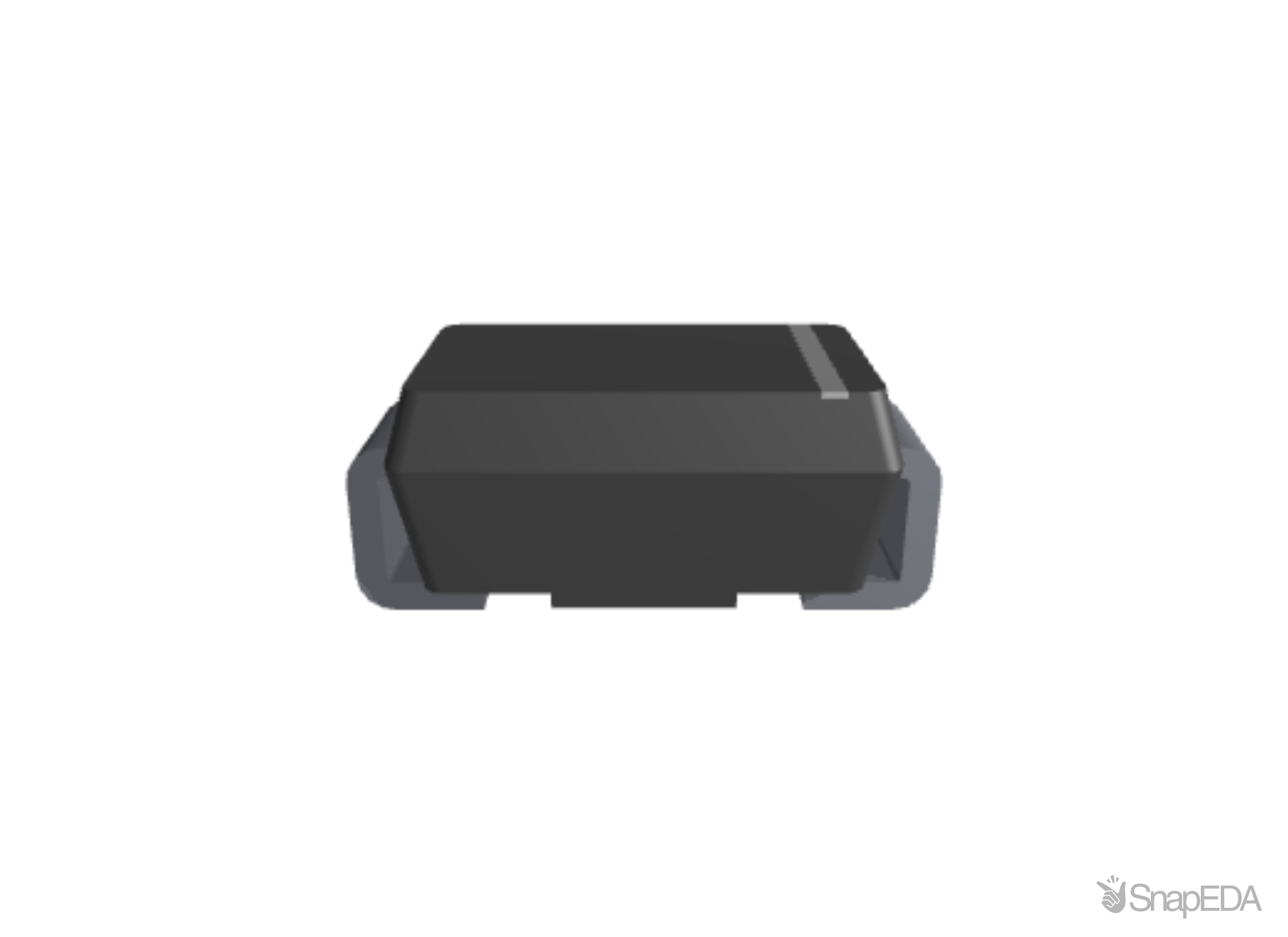

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
Verification | Issues | Specs | Pricing |
Specifications for the 1SMA5913BT3G
Part Name | 1SMA5913BT3G |
Manufacturer | onsemi |
Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
Nominal Zener Voltage (V) | 3.3 (V) |
Dimensions | 4.57 x 2.92 x 2.05 (mm) |
Mounting Type | Surface Mount |
Maximum Power Dissipation | 1.5 W |
Diode Configuration | Single |
Maximum Reverse Leakage Current (A) | 50 (µA) |
Maximum Zener Impedance | 10 (Ω) |
Zener Type | Voltage Regulator |
Number Of Elements Per Chip | 1 |
Minimum Operating Temperature | -65 °C |
Package Type | SMA |
Zener Voltage Tolerance (V) | 5 (%) |
Maximum Operating Temperature | +150 °C |
Pin Count | 2 |
Test Current (A) | 113.6 (mA) |
Inventory for the 1SMA5913BT3G by Onsemi from major distributors.
Supplier | Quantity | Price | Purchase | |
---|---|---|---|---|
★ Featured
|
26,080
|
|
Visit Site | |
★ Featured
![]() |
44,925
|
|
Visit Site | |
Onlinecomponents |
10,000
|
|
Visit Site |
No issues have been reported for the 1SMA5913BT3G
If you experienced any issues with the symbol or footprint, please report it.
