2-1017008-9
58 MODII VRT DR CE HI TEMP
Availability: Out of Stock

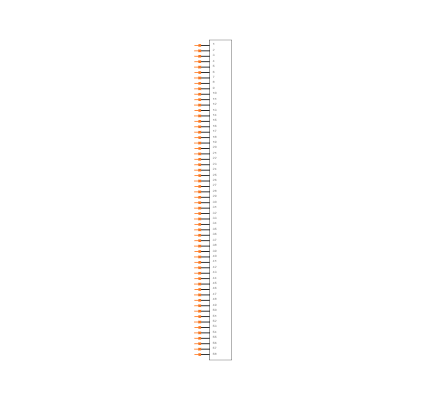

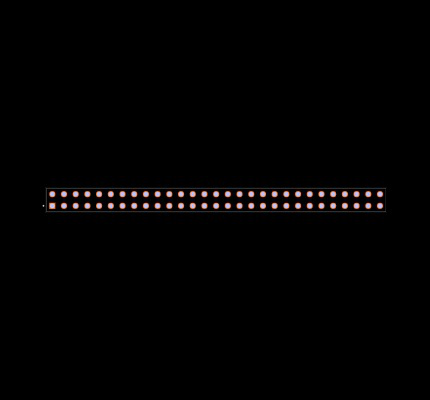

CAD Models: Symbol and Footprint
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 2-1017008-9 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 2-1017008-9
| Part Name | 2-1017008-9 |
| Manufacturer | TE Connectivity |
| Centerline (Pitch) | .1 |
| Termination Method to Printed Circuit Board | Through Hole - Solder |
| Connector & Contact Terminates To | Printed Circuit Board |
| Number of Positions | 58 |
| PCB Mount Retention Type | Retention Solder Tails |
| PCB Mount Retention | With |
| Termination Post & Tail Length | .115 |
| TE Internal Number | 2-1017008-9 |
| PCB Mount Orientation | Vertical |
| Contact Protection Type | Closed Entry Housing |
| Connector Height | .32 |
| Number of Rows | 2 |
| PCB Contact Termination Area Plating Material Thickness | 2.5 |
| Contact Base Material | Phosphor Bronze |
| Housing Color | Black |
| Mating Entry Location | Top |
| High Temperature Compatible | Yes |
| Packaging Method | Tube |
| Contact Configuration | Short Point |
| Contact Layout | Inline |
| Solder Process Feature | Board Standoff |
| Contact Mating Area Plating Material | Gold |
| RoHS | True |
| Housing Material | Polyester PCT |
| Sealable | No |
| PCB Contact Termination Area Plating Material | Tin-Lead |
| UL Flammability Rating | UL 94V-0 |
| Contact Mating Area Plating Material Thickness | 30 |
| Row-to-Row Spacing | .1 |
| PCB Connector Assembly Type | PCB Mount Receptacle |
| Connector Profile | Standard |
| Contact Type | Socket |
| Stackable | Yes |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
