2-1445052-3

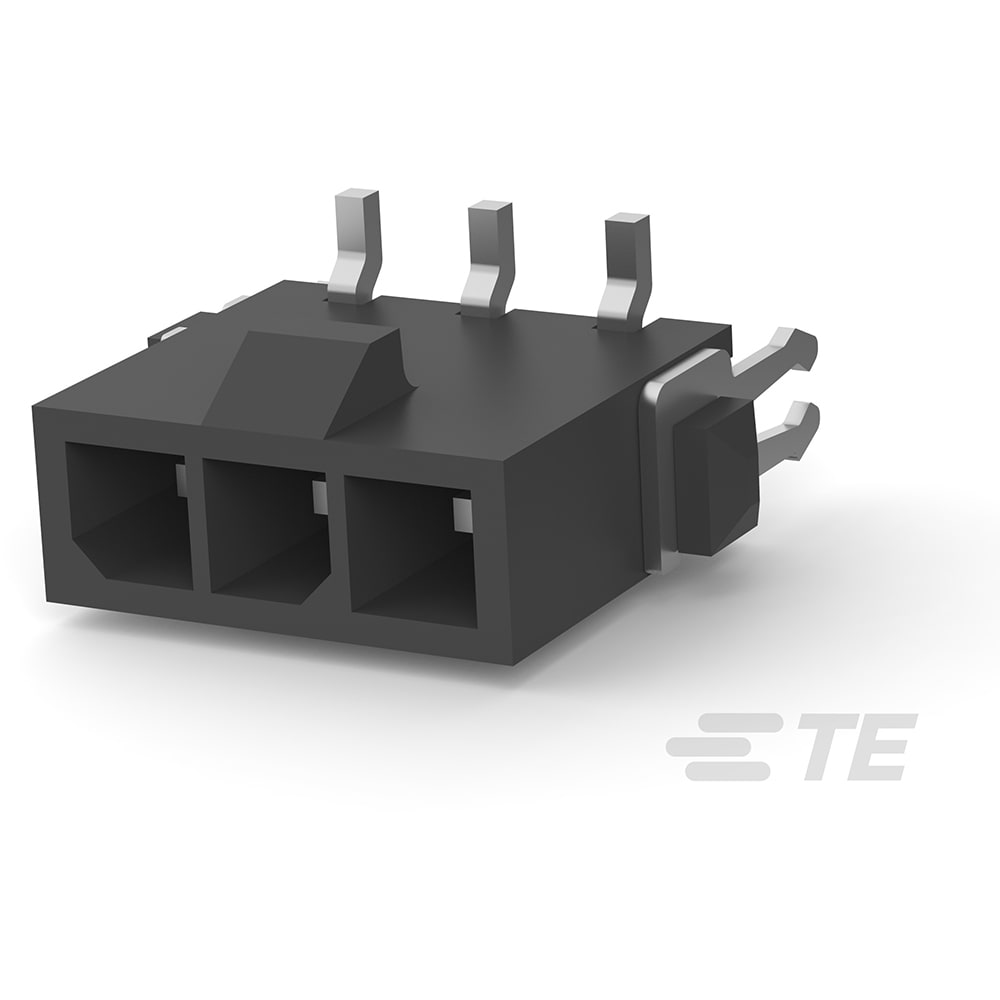

MICRO MNL HDR ASSY S/ROW LF | TE Connectivity 2-1445052-3
Availability: In Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 2-1445052-3 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
2D Model
The 2D model for this
part is not available

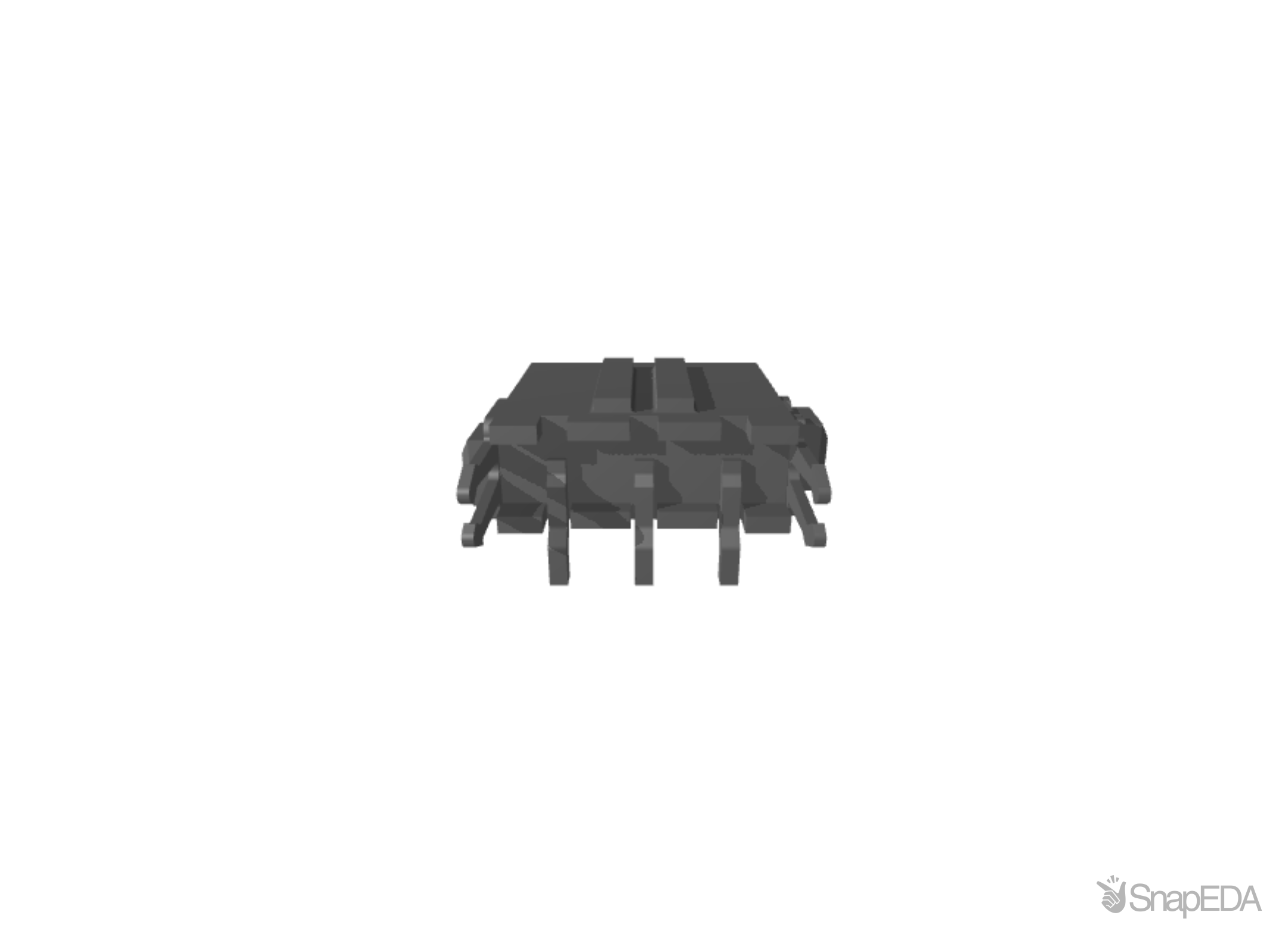

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 2-1445052-3
| Part Name | 2-1445052-3 |
| Manufacturer | TE Connectivity |
| Category | Connectors |
| Mating Alignment Type | Polarization |
| Centerline (Pitch) | 3 |
| Circuit Application | Power |
| UL Flammability Rating | UL 94V-0 |
| Mating Retention | With |
| Contact Termination Area Plating Thickness | 100 |
| Number of Power Positions | 3 |
| Operating Voltage (V) | 250 |
| PCB Mount Orientation | Vertical |
| Connector & Contact Terminates To | Printed Circuit Board |
| PCB Mount Retention Type | Boardlock |
| PCB Mount Retention | With |
| VDE Tested | Yes |
| Insulation Diameter (Max) | 1.52 |
| Termination Post & Tail Length | 1.53 |
| Contact Current Rating (Max) (A) | 5 |
| TE Internal Number | 2-1445052-3 |
| UL Rating | Recognized |
| Connector System | Wire-to-Board |
| Number of Rows | 1 |
| Agency/Standard Number | E28476 |
| Housing Color | Black |
| Strain Relief | Without |
| Connector Mounting Type | Board Mount |
| Termination Method to Printed Circuit Board | Surface Mount |
| Operating Temperature Range | -40 – 221 |
| Contact Layout | Inline |
| Packaging Method | Tape |
| Housing Type | Plug |
| Packaging Quantity | 210 |
| Agency/Standard | CSA |
| Contact Termination Area Plating Material | Tin |
| Number of Positions | 3 |
| Mating Alignment | With |
| Contact Mating Area Plating Material | Tin |
| CSA Rating | Certified |
| PCB Thickness (Recommended) | 1.57 |
| RoHS | True |
| Housing Material | High Temperature Nylon |
| Boardlock Material | Phosphor Bronze |
| Sealable | No |
| Contact Retention | Without |
| Mating Retention Type | Locking Tab |
| Multiple Contact Types | Without |
| Panel Mount Feature | Without |
| CSA File Number | LR7189 |
| Contact Mating Area Plating Thickness | 2.54 |
| Product Type | Header |
| Contact Type | Pin |
| Glow Wire Rating | GWT 750°C (Without Flame) |
| Wire Size | 30 – 20 |
