2-146468-2
22 MODII HDR SRST UNSHRD STKG
Availability: Out of Stock
CAD Models: Symbol and Footprint
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 2-146468-2 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
Symbol
No web preview
This Symbol is Available for

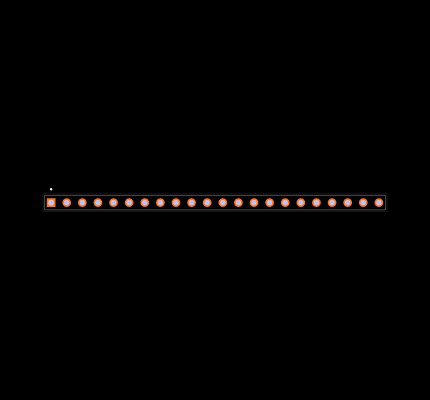

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 2-146468-2
| Part Name | 2-146468-2 |
| Manufacturer | TE Connectivity |
| Centerline (Pitch) | 2.54 |
| Pick and Place Cover | Without |
| Stack Height | .8 |
| Termination Method to Printed Circuit Board | Through Hole |
| Insulation Resistance | 5000 |
| PCB Contact Termination Area Plating Thickness | 100 200 |
| For Use With | Receptacle Assembly |
| Connector & Contact Terminates To | Printed Circuit Board |
| PCB Mount Retention | Without |
| Approved Standards | CSA LR7189 |
| Mating Post Length | .109 |
| TE Internal Number | 2-146468-2 |
| PCB Mount Orientation | Vertical |
| Number of Rows | 1 |
| Housing Color | Black |
| Contact Mating Area Plating Material Finish | Bright |
| Contact Base Material | Brass |
| PCB Contact Termination Area Plating Material | Tin-Lead |
| Contact Shape | Square |
| Connector Assembly Type | PCB Mount Header |
| Operating Temperature Range | -65 to 125 |
| Tail Length | 3.05 |
| Connector Type | Connector Assembly |
| Contact Layout | Inline |
| Number of Positions | 22 |
| Contact Mating Area Plating Material | Tin-Lead |
| Solder Tail Contact Plating Material Finish | Tin-Lead: Bright |
| RoHS | True |
| Life Cycle Status | Factory Special Order |
| Housing Material | Thermoplastic |
| Product Type | Connector |
| Termination Post Length | 26.16 |
| Post Size | .64 |
| UL Flammability Rating | UL 94V-0 |
| Contact Current Rating (Max) (A) | 3 |
| Contact Mating Area Plating Thickness | 100 200 |
| Contact Type | Pin |
| Stackable | Yes |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
