2-1470108-4
Connector Header Through Hole, Right Angle 24 position 0.079" (2.00mm)
Availability: In Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 2-1470108-4 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
Symbol
No web preview
This Symbol is Available for

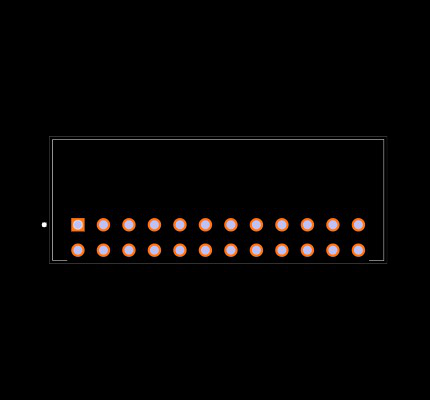

Footprint
No web preview
This Footprint is Available for

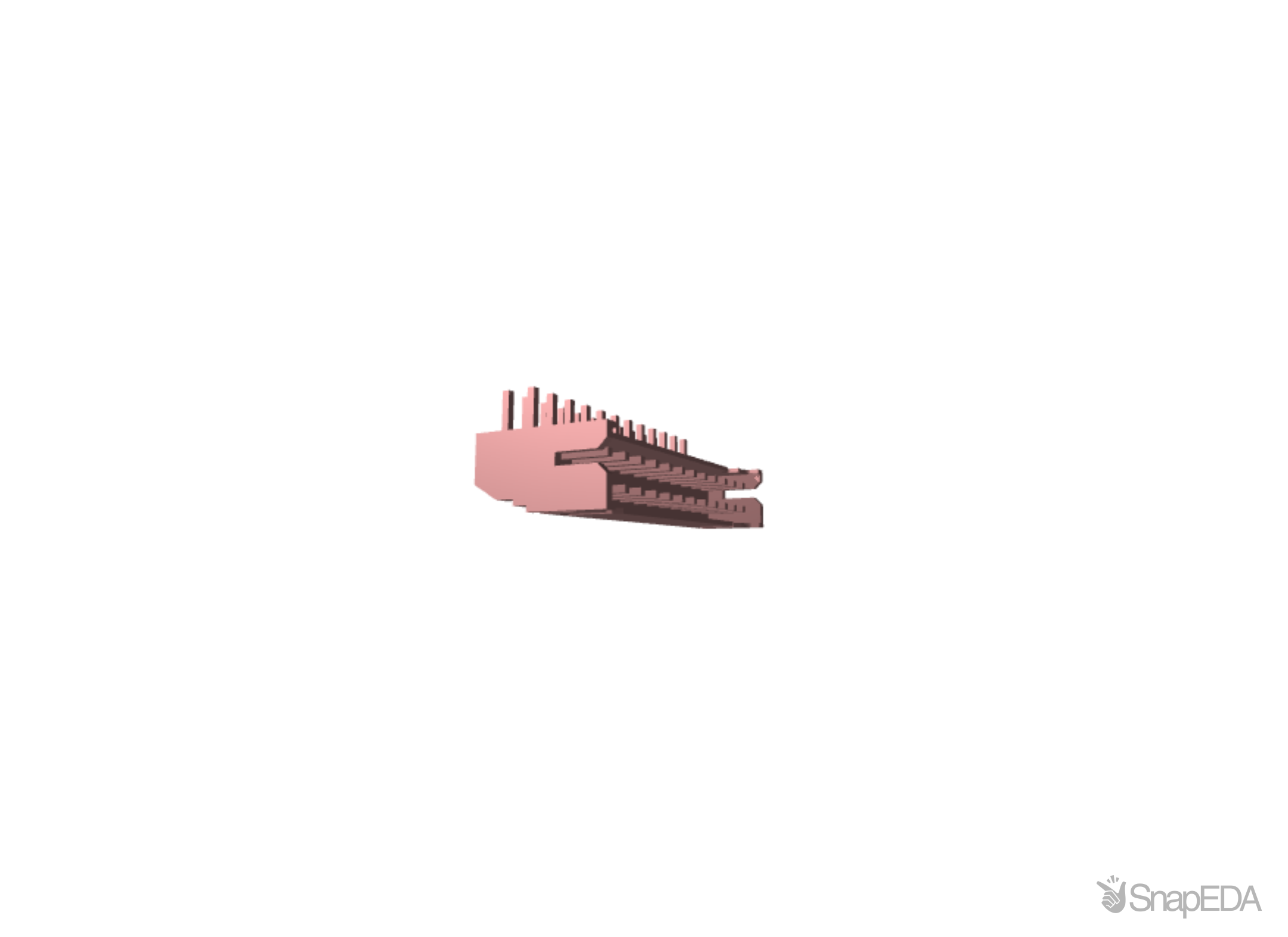

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 2-1470108-4
| Part Name | 2-1470108-4 |
| Manufacturer | TE Connectivity |
| Mating Alignment Type | Keyed |
| Centerline (Pitch) | .079 |
| Circuit Application | Signal |
| Housing Material | High Temperature Thermoplastic |
| Insulation Resistance | 5000 |
| Operating Voltage (V) | 100 |
| Number of Positions | 24 |
| PCB Mount Retention | Without |
| PCB Thickness (Recommended) | .062 |
| Termination Post & Tail Length | .118 |
| Contact Current Rating (Max) (A) | 3 |
| Mating Post Length | 3.5 |
| TE Internal Number | 2-1470108-4 |
| PCB Mount Orientation | Right Angle |
| Connector System | Wire-to-Board |
| Number of Rows | 2 |
| Housing Color | Natural |
| Header Type | Shrouded |
| Contact Base Material | Copper Alloy |
| Connector Mounting Type | Board Mount |
| Contact Shape | Square |
| Termination Method to Wire & Cable | Crimp |
| Contact Transmits (Typical) | Signal (Data) |
| Termination Method to Printed Circuit Board | Through Hole - Solder |
| Operating Temperature Range | -13 – 185 |
| Terminations per Post (Max) | 3 |
| Packaging Method | Loose Piece |
| Connector & Contact Terminates To | Printed Circuit Board |
| Contact Mating Area Plating Material | Tin |
| RoHS | True |
| Approved Standards | CSA LR7189 |
| Mating Retention | Without |
| Sealable | No |
| PCB Contact Termination Area Plating Material Thickness | 100 |
| PCB Mount Alignment | Without |
| UL Flammability Rating | UL 94V-0 |
| Contact Mating Area Plating Material Thickness | 2.54 |
| Row-to-Row Spacing | .079 |
| PCB Connector Assembly Type | PCB Mount Header |
| Connector Contact Load Condition | Fully Loaded |
| Contact Type | Pin |
| PCB Contact Termination Area Plating Material | Tin |
| Position Locations Omitted | None |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
Inventory for the 2-1470108-4 by TE Connectivity from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
|
1,260 x $0.90
|
Visit Site | |
| Avnet America |
|
|
Visit Site | |
| Chip One Stop |
3,780
|
|
Visit Site | |
| Heilind Americas |
|
|
Visit Site | |
| Interstate Connecting Components |
|
|
Visit Site | |
| Newark |
3,780
|
1 x $1.10
|
Visit Site | |
| Onlinecomponents |
3,780
|
|
Visit Site | |
| Powell Electronics |
2,495
|
|
Visit Site | |
| Sager |
|
1,260 x $0.81
|
Visit Site | |
| TME |
3,780
|
|
Visit Site | |
| Verical |
3,780
|
|
Visit Site |
No issues have been reported for the 2-1470108-4
