2-1470109-4
2.0mm Pitch Header,Dip 24p
Availability: In Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 2-1470109-4 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
Symbol
No web preview
This Symbol is Available for

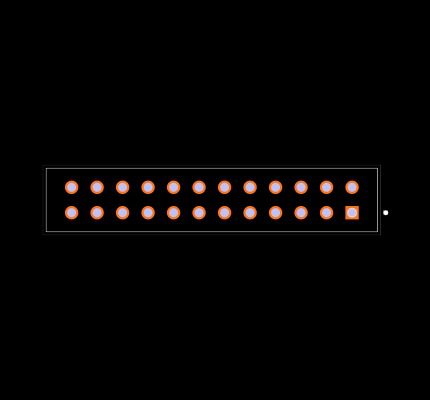

Footprint
No web preview
This Footprint is Available for

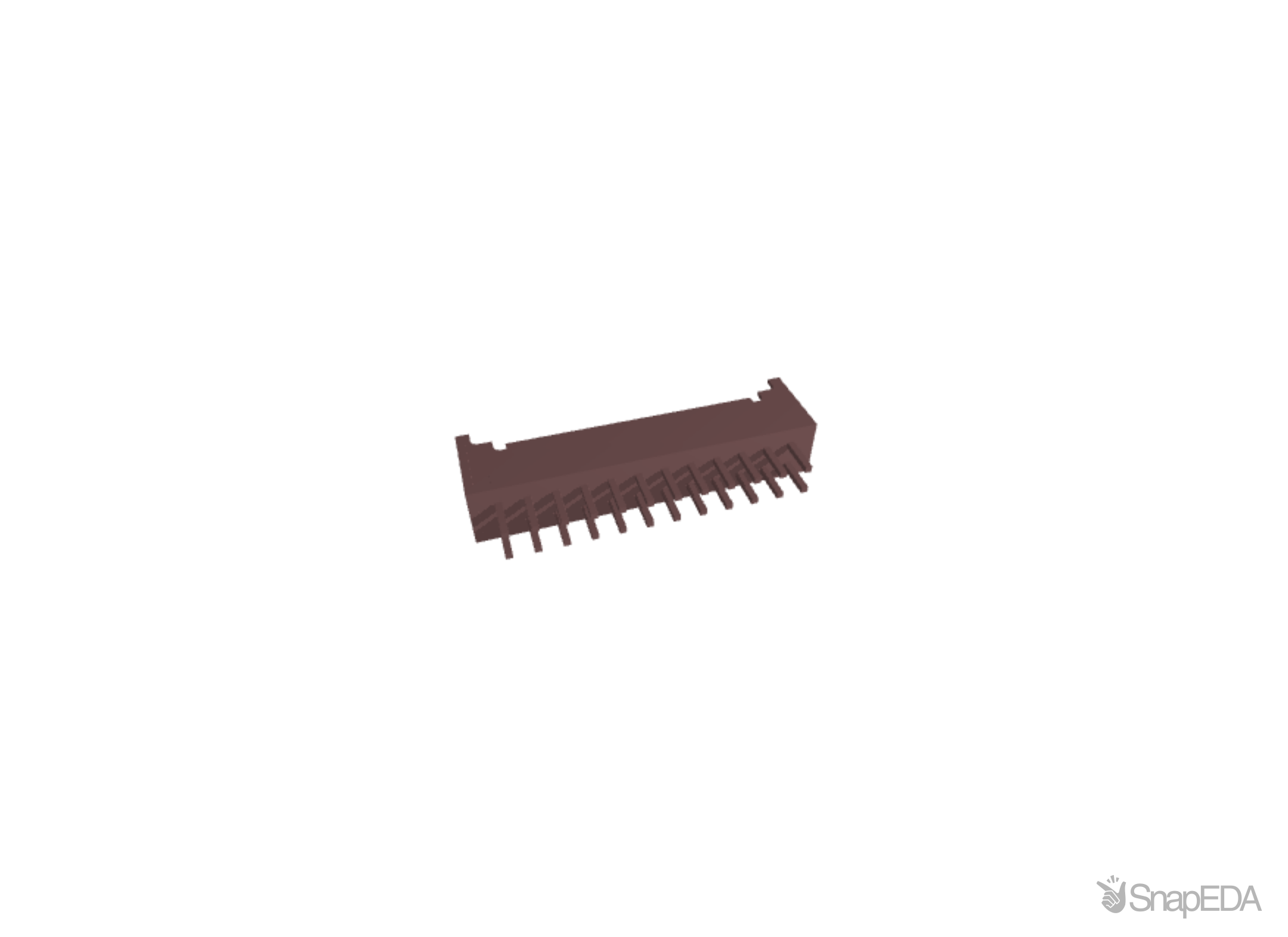

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 2-1470109-4
| Part Name | 2-1470109-4 |
| Manufacturer | TE Connectivity |
| Mating Alignment Type | Keyed |
| Centerline (Pitch) | .079 |
| Housing Material | High Temperature Thermoplastic |
| Insulation Resistance | 5000 |
| Operating Voltage (V) | 100 |
| Connector & Contact Terminates To | Printed Circuit Board |
| PCB Mount Retention | Without |
| PCB Thickness (Recommended) | .062 |
| Termination Post & Tail Length | 3 |
| PCB Connector Assembly Type | PCB Mount Header |
| Mating Post Length | .1 |
| TE Internal Number | 2-1470109-4 |
| PCB Mount Orientation | Vertical |
| Connector Height | 6.5 |
| Number of Rows | 2 |
| PCB Contact Termination Area Plating Material Thickness | 100 |
| Header Type | Shrouded |
| Contact Base Material | Brass |
| Contact Shape | Square |
| Housing Color | Natural |
| Dielectric Withstanding Voltage (Max) (V) | 750 |
| Operating Temperature Range | -25 – 85 |
| Packaging Method | Loose Piece |
| Number of Positions | 24 |
| Mating Alignment | With |
| Contact Mating Area Plating Material | Tin |
| RoHS | True |
| Approved Standards | CSA LR7189 |
| Termination Method to Printed Circuit Board | Through Hole - Solder |
| Post Size | .5 |
| UL Flammability Rating | UL 94V-0 |
| Row-to-Row Spacing | 2 |
| Contact Current Rating (Max) (A) | 3 |
| Connector Contact Load Condition | Fully Loaded |
| Contact Type | Pin |
| PCB Contact Termination Area Plating Material | Tin |
| Position Locations Omitted | None |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
