2-1470209-8
RCPT,2MM,10P,VRT MT,8AU,2.6ST
Availability: Out of Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 2-1470209-8 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for

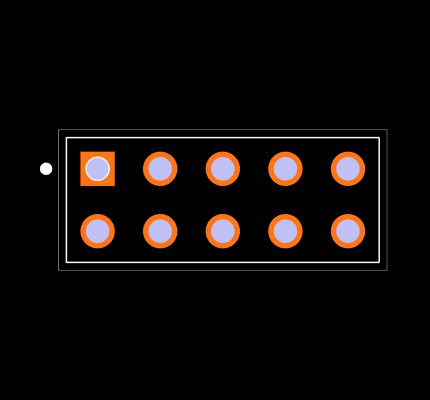

Footprint
No web preview
This Footprint is Available for

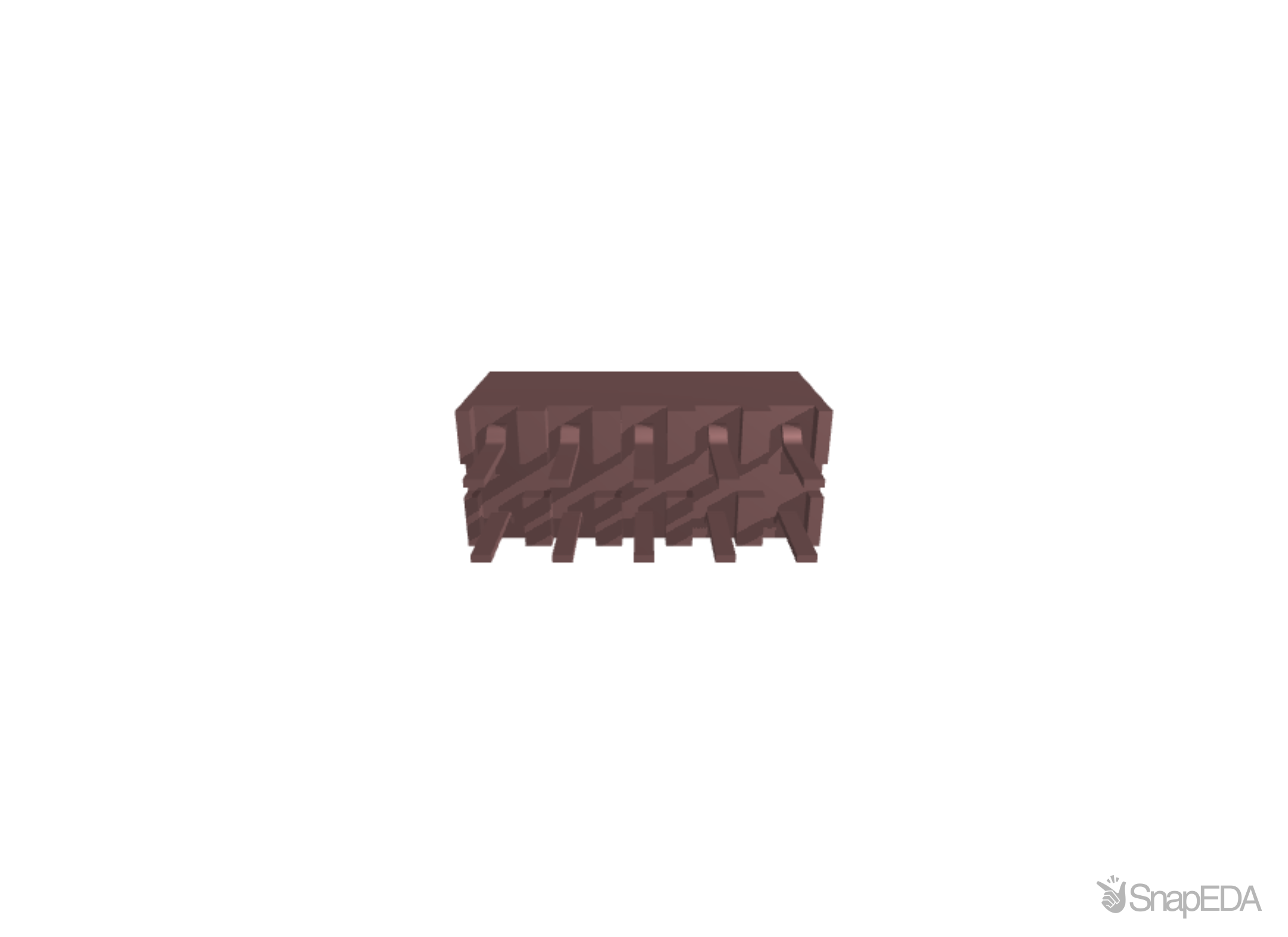

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 2-1470209-8
| Part Name | 2-1470209-8 |
| Manufacturer | TE Connectivity |
| Centerline (Pitch) | 2 |
| Housing Material | Thermoplastic |
| Connector & Contact Terminates To | Printed Circuit Board |
| Operating Voltage (V) | 250 |
| Number of Positions | 10 |
| PCB Mount Retention | Without |
| PCB Thickness (Recommended) | .062 |
| Termination Post & Tail Length | .102 |
| Contact Current Rating (Max) (A) | 1 |
| TE Internal Number | 2-1470209-8 |
| PCB Mount Orientation | Vertical |
| Connector Height | 6.5 |
| Number of Rows | 2 |
| PCB Contact Termination Area Plating Material Thickness | 100 |
| Contact Base Material | Copper Alloy |
| Housing Color | Black |
| Dielectric Withstanding Voltage (Max) (V) | 650 |
| Operating Temperature Range | -40 – 105 |
| Packaging Method | Box & Tray |
| Contact Mating Area Plating Material | Gold |
| RoHS | True |
| Termination Method to Printed Circuit Board | Through Hole - Solder |
| Post Size | .02 |
| Stack Height | 4.5 |
| Contact Mating Area Plating Material Thickness | 8 |
| Row-to-Row Spacing | 2 |
| PCB Connector Assembly Type | PCB Mount Receptacle |
| Connector Contact Load Condition | Fully Loaded |
| Contact Type | Socket |
| PCB Contact Termination Area Plating Material | Tin |
| Position Locations Omitted | None |
