2-1617122-9
Electromechanical Relay 26.5VDC 1.56KOhm 1A DPDT THT Military Relay
Availability: In Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 2-1617122-9 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
2D Model
The 2D model for this
part is not available

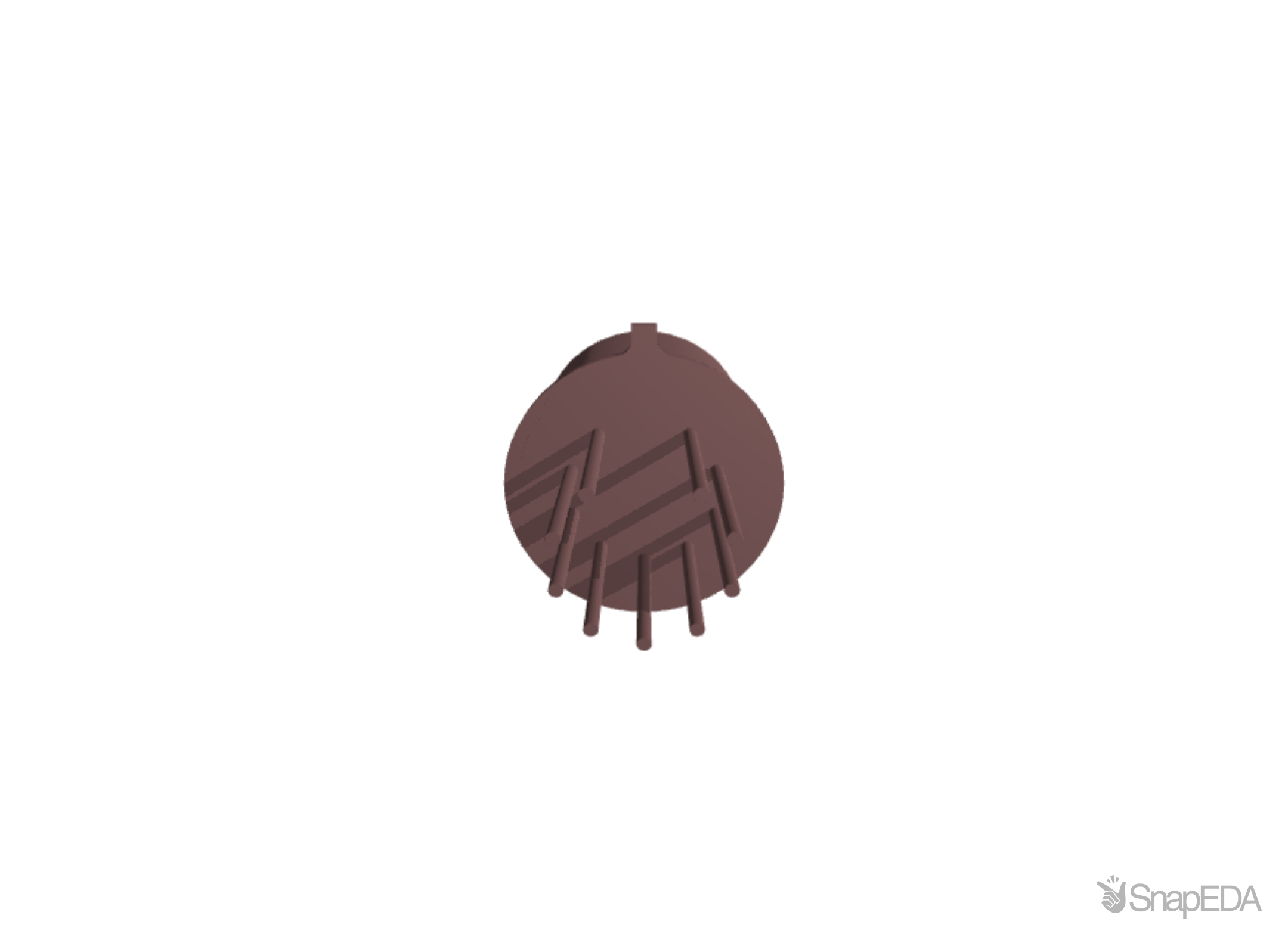

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 2-1617122-9
| Part Name | 2-1617122-9 |
| Manufacturer | TE Connectivity |
| Coil Power Rating (DC) | 450 |
| Coil Suppression Diode | With |
| Relay Type | Military/Aerospace High Performance |
| MOSFET Driver | Without |
| Coil Resistance | 1560 |
| Contact Current Class (A) | Low Level 1 A |
| Contact Arrangement | 2 Form C, DPDT, 2 C/O |
| Contact Current Rating (A) | 1 |
| Vibration | 30G's, 10 3000Hz |
| TE Internal Number | 2-1617122-9 |
| Input Voltage (V) | 26.5 |
| Product Type | Relay |
| Coil Voltage (V) | 26.5 |
| Operating Temperature Range | -65 to 125 |
| Transistor Driver | Without |
| Pin Configuration | Ground Pin |
| Shock | 75G's, 6ms |
| Enclosure Type | Hermetically Sealed |
| Coil Magnetic System | Non-Polarized, Monostable |
| Actuating System | DC |
| RoHS | True |
| Mounting Type | Printed Circuit Board |
| Coil Polarity Protection Diode | Without |
| Termination Type | Long Leads |
| Coil Power Measurement | Milliwatts |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet |
Inventory for the 2-1617122-9 by TE Connectivity from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
| Avnet America |
|
|
Visit Site | |
| Buerklin |
|
2 x $121.83
|
Visit Site | |
| Farnell UK |
22
|
|
Visit Site | |
| Heilind Europe |
|
|
Visit Site | |
| Interstate Connecting Components |
|
|
Visit Site | |
| Newark |
17
|
|
Visit Site | |
| Onlinecomponents |
12
|
|
Visit Site | |
| Powell Electronics |
15
|
|
Visit Site | |
| Sager |
|
|
Visit Site | |
| TME |
15
|
|
Visit Site | |
| Verical |
15
|
|
Visit Site |
