2-1625892-5
Through Hole Resistor, Rox Series, 1000 Kohm, 3 W, 5%, 350 V, Axial Leaded
Availability: Out of Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 2-1625892-5 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
2D Model
The 2D model for this
part is not available

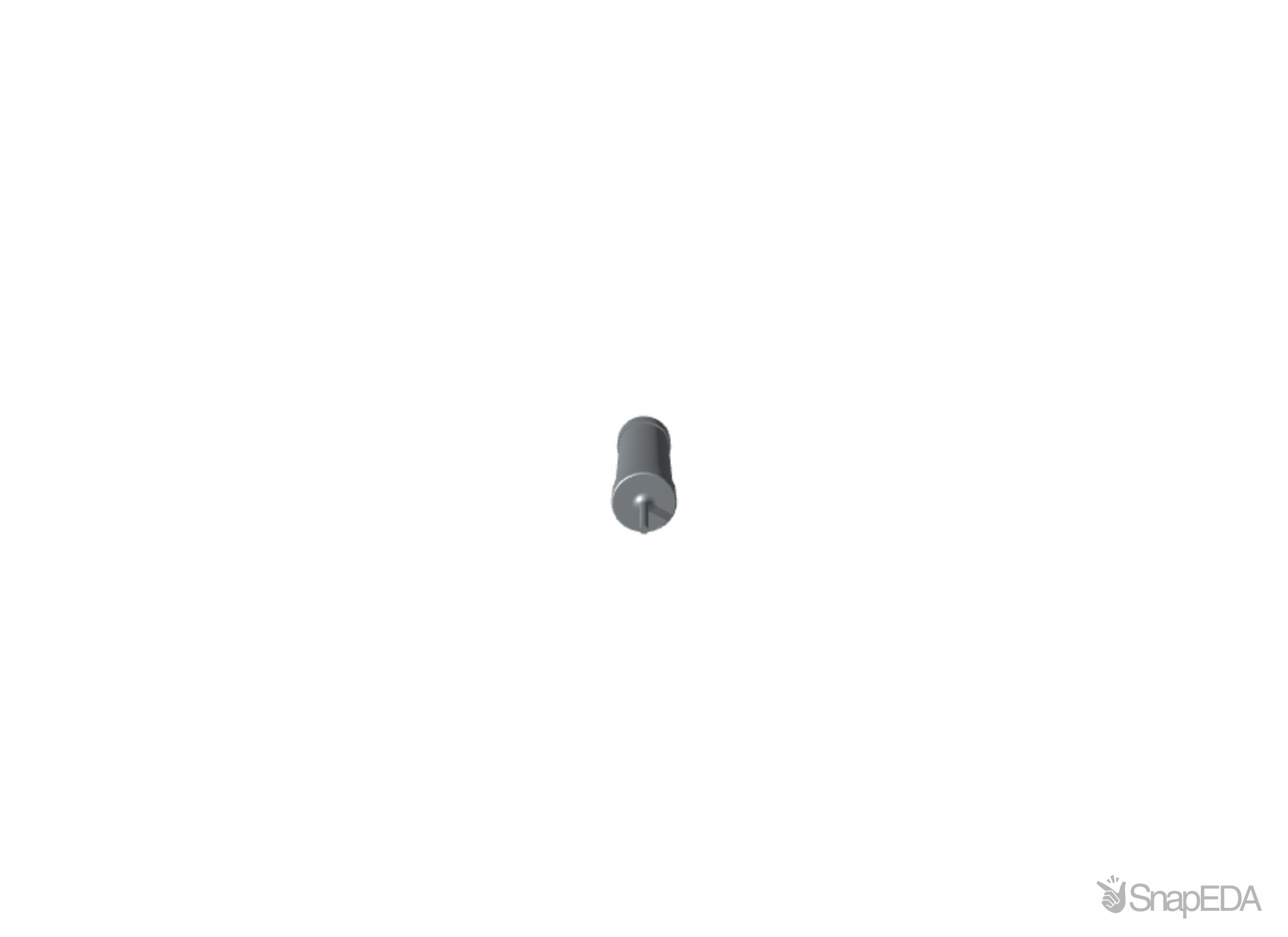

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 2-1625892-5
| Part Name | 2-1625892-5 |
| Manufacturer | TE Connectivity |
| Mount Style | Axial Leaded |
| Dimensions | 16 x 5.5 |
| Product Type | Fixed Resistor |
| Operating Temperature Range | -55 – 235 |
| Number of Terminations | 2 |
| Resistor Type | Power Resistor |
| Voltage Rating (V) | 350 |
| Packaging Method | Ammo Packed |
| TE Internal Number | 2-1625892-5 |
| Temperature Coefficient | ±350 |
| Resistance | 1M |
| Number of Resistors | 1 |
| Termination Type | Tinned Copper Leads |
| Power Rating | 3 |
| Element Material | Metal Oxide |
| Tolerance | 5% |
| Resistance Class | 1MΩ – 1GΩ |
| Lead Type | Axial Leaded |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
No issues have been reported for the 2-1625892-5
