2-164045-8
48 Position Din Connector Plug, Male Pins Gold Through Hole, Right Angle
Availability: Out of Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 2-164045-8 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
Symbol
No web preview
This Symbol is Available for

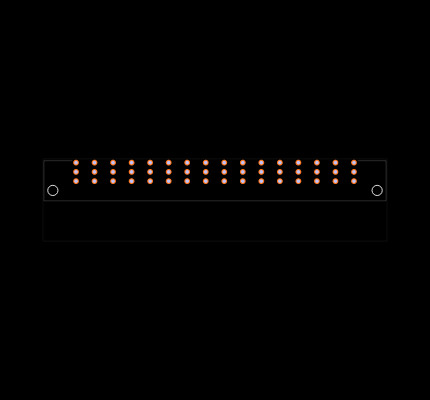

Footprint
No web preview
This Footprint is Available for

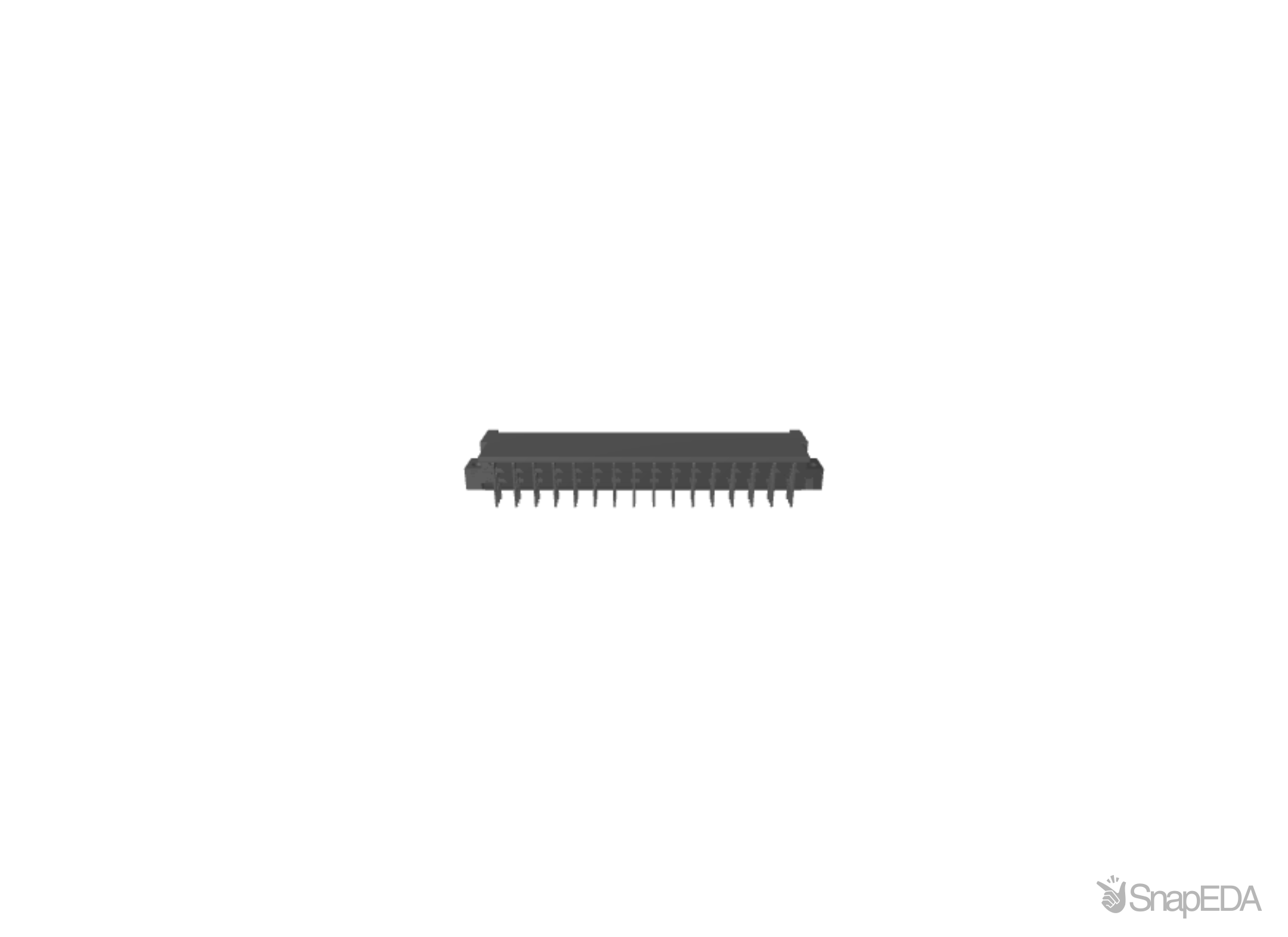

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 2-164045-8
| Part Name | 2-164045-8 |
| Manufacturer | TE Connectivity |
| Mating Alignment Type | Keyed |
| Centerline (Pitch) | 2.54 |
| Circuit Application | Signal |
| Mating Retention | With |
| Row-to-Row Spacing | 3.81 |
| Post Type | Solder Post |
| Connector & Contact Terminates To | Printed Circuit Board |
| Connector Style | Plug |
| Type | Type F |
| Number of Positions | 48 |
| Connector System | Board-to-Board |
| Termination Post & Tail Length | 2.9 |
| TE Internal Number | 2-164045-8 |
| PCB Mount Orientation | Right Angle |
| PCB Mount Alignment | Without |
| Connector Height | 21.8 |
| Number of Rows | 3 |
| Number of Signal Positions | 48 |
| Sealable | No |
| Connector Mounting Type | Board Mount |
| Contact Transmits (Typical) | Signal (Data) |
| Number of Columns | 16 |
| Operating Temperature Range | -55 – 125 |
| Packaging Method | Tray |
| Contact Termination Area Plating Material | Tin-Lead |
| Interface Type | Eurocard/DIN 41612 |
| Contact Mating Area Plating Material | Gold |
| Pre-Notched to Break Off | No |
| RoHS | True |
| DIN Size | Standard |
| Housing Material | Thermoplastic Polyester - GF |
| Contact Base Material | Brass |
| Color | Gray |
| Rows Loaded | Z, B, D |
| Mating Alignment | With |
| UL Flammability Rating | UL 94V-0 |
| Contact Mating Area Plating Material Thickness | .76 |
| Panel Mount Feature | Without |
| Contact Current Rating (Max) (A) | 5.5 |
| DIN Level | III |
| Contact Type | Pin |
| Board-to-Board Configuration | Right Angle |
| Make First / Break Last | No |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
