2-1658013-2
MSB0.80PL5ASY080FL,-,10,-TY
Availability: In Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 2-1658013-2 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
2D Model
The 2D model for this
part is not available

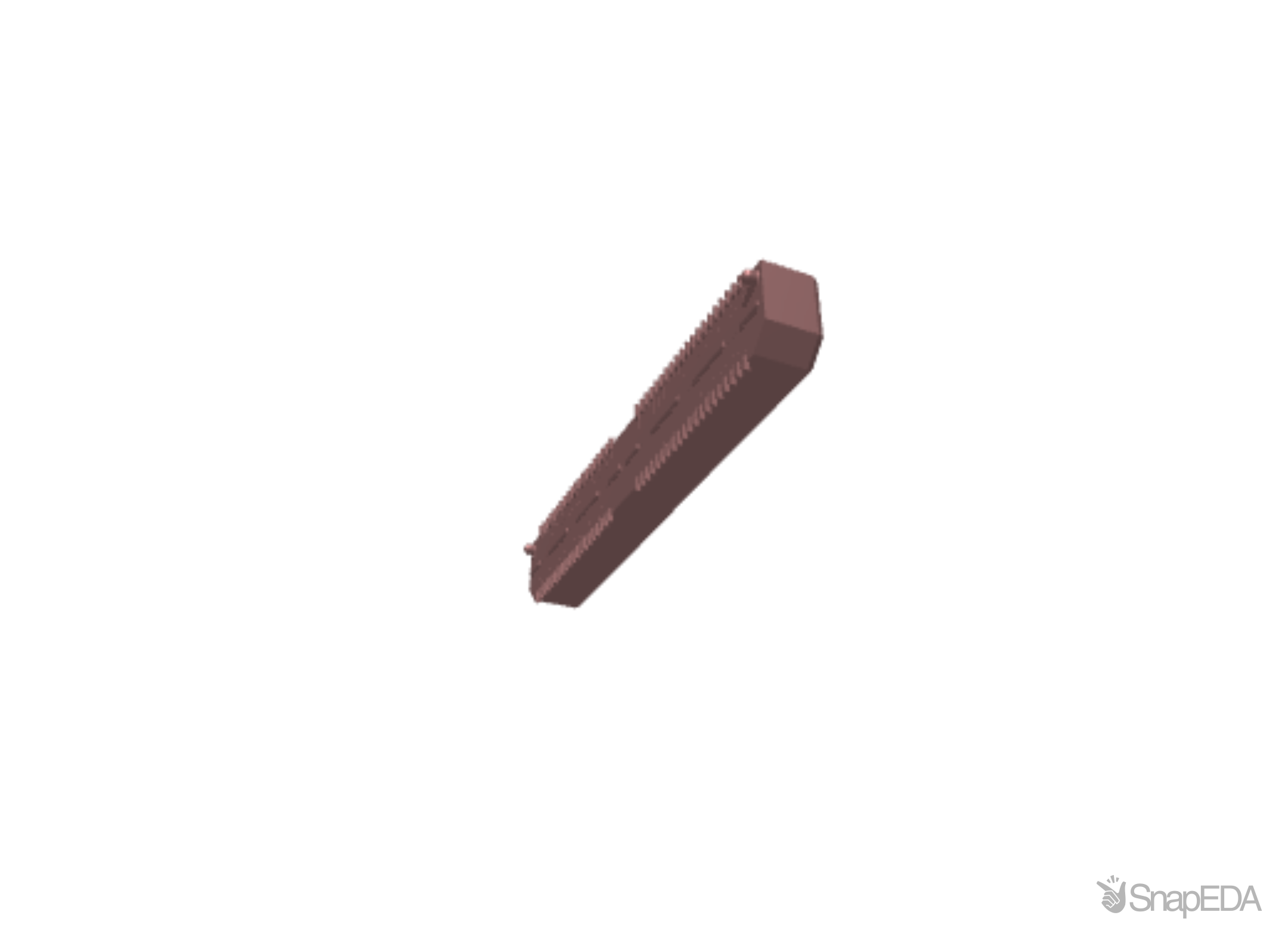

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 2-1658013-2
| Part Name | 2-1658013-2 |
| Manufacturer | TE Connectivity |
| Centerline (Pitch) | .8 |
| Circuit Application | Power & Signal |
| Stack Height | .197 |
| Housing Material | LCP (Liquid Crystal Polymer) |
| Row-to-Row Spacing | 4.73 |
| Insulation Resistance | 2 |
| Operating Voltage (V) | 125 |
| PCB Mount Alignment Type | Locating Posts |
| Connector & Contact Terminates To | Printed Circuit Board |
| PCB Mount Retention | With |
| PCB Thickness (Recommended) | .25 |
| PCB Connector Assembly Type | PCB Mount Header |
| TE Internal Number | 2-1658013-2 |
| PCB Mount Orientation | Vertical |
| Connector System | Board-to-Board |
| Connector Height | 4.06 |
| Number of Rows | 2 |
| Housing Color | Black |
| Header Type | Standard |
| Impedance | 100 |
| Sealable | No |
| Connector Mounting Type | Board Mount |
| Contact Shape | Square |
| PCB Contact Termination Area Plating Material Thickness | .25 |
| Dielectric Withstanding Voltage (Max) (V) | 675 |
| Mating Retention | With |
| Assembly Process Feature | Pick and Place Cover |
| Operating Temperature Range | -65 – 125 |
| Packaging Method | Tray |
| Packaging Quantity | 48 |
| Contact Configuration | Single Beam |
| Number of Positions | 80 |
| Mating Alignment | Without |
| Contact Mating Area Plating Material | Select Gold |
| Stackable | No |
| RoHS | True |
| Termination Method to Printed Circuit Board | Surface Mount |
| Contact Base Material | Phosphor Bronze |
| Cover Material | Polyimide Film |
| PCB Mount Alignment | With |
| UL Flammability Rating | UL 94V-0 |
| Contact Mating Area Plating Material Thickness | 9.8425 |
| PCB マウント アラインメント タイプ | Locating Posts |
| Contact Current Rating (Max) (A) | 9.5 |
| Connector Contact Load Condition | Fully Loaded |
| Contact Type | Pin |
| PCB Contact Termination Area Plating Material | Gold |
| Board-to-Board Configuration | Mezzanine |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
Inventory for the 2-1658013-2 by TE Connectivity from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
240
|
|
Visit Site | |
| Mouser |
|
480 x $9.85
|
Visit Site | |
| Onlinecomponents |
48
|
|
Visit Site | |
|
★ Featured
|
|
480 x $10.29
|
Visit Site | |
| Verical |
240
|
|
Visit Site |
No issues have been reported for the 2-1658013-2
If you experienced any issues with this part, please report it.
