2-1703930-2
Terminal Automotive NANOMQS, RECEPTACLE TERMINAL TYCO / TE CONNECTIVITY
Availability: Out of Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 2-1703930-2 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
2D Model
The 2D model for this
part is not available

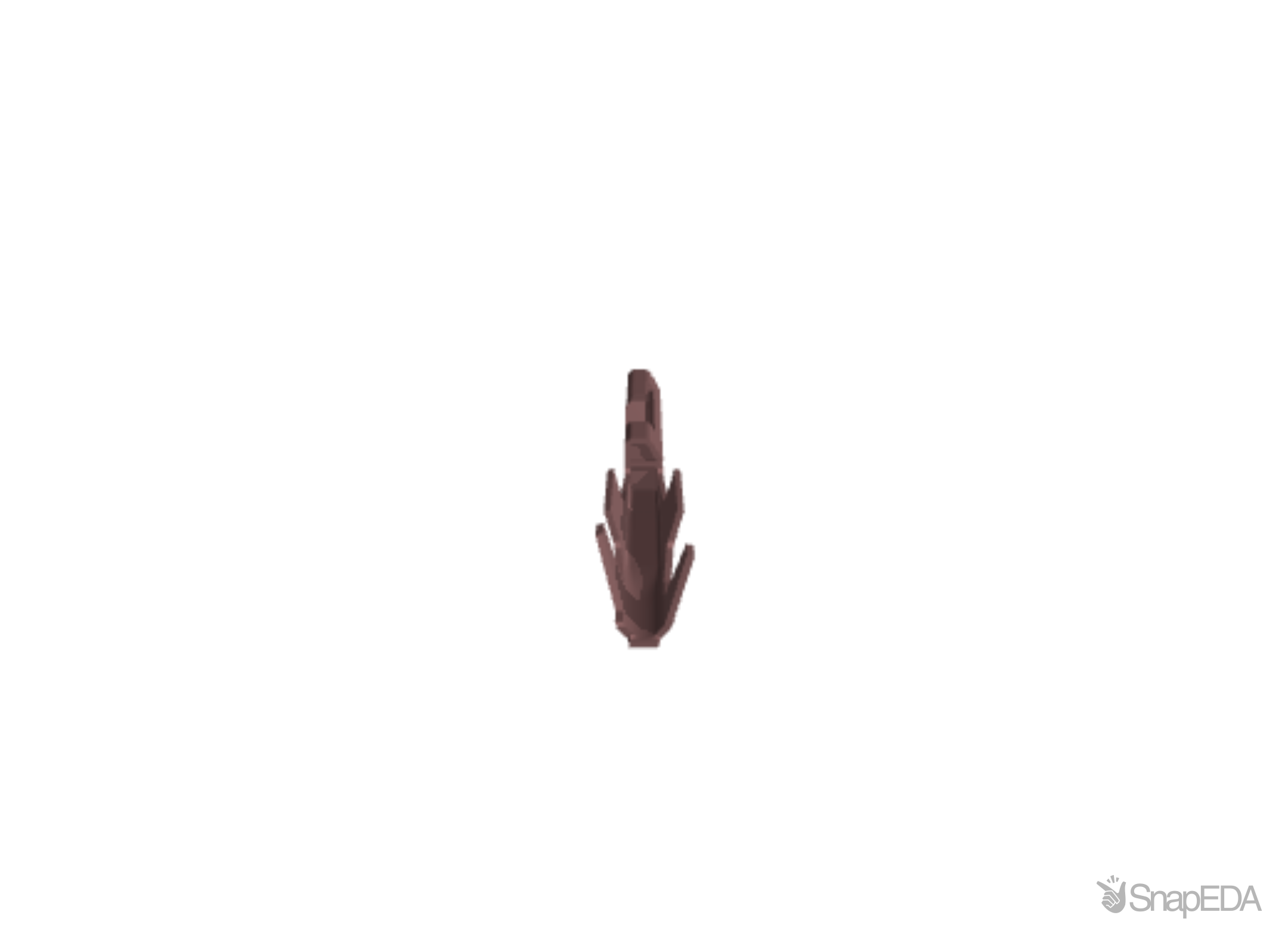

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 2-1703930-2
| Part Name | 2-1703930-2 |
| Manufacturer | TE Connectivity / AMP |
| Wire Type | Copper |
| Wire Insulation Diameter | .95 – 1.3 |
| Wire Size Search | .25 |
| Receptacle Style | 180° |
| TE Internal Number | 2-1703930-2 |
| Termination Method | Crimp |
| Typical Current Rating (A) | 6 |
| Sealable | No |
| Operating Temperature Range | -40 – 338 |
| Terminal & Splice Type | Receptacle |
| Packaging Method | Reel |
| Packaging Quantity | 17000 |
| Agency/Standard | LV214 |
| Contact Termination Area Plating Material | Tin (Sn) |
| RoHS | True |
| Mating Tab Width | .02 |
| Crimp Type | F-Crimp |
| Interface Plating | Silver (Ag) |
| Primary Locking Feature | Locking Lance |
| Mating Tab Thickness | .016 |
| Terminal Transmits | 0 – 24 A (Low Power) |
| Wire Size | .22 – .35 |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
No issues have been reported for the 2-1703930-2
If you experienced any issues with this part, please report it.
