2-173985-8
8 Position Individual Wires Connector Blue IDC 26-28 AWG Through Hole
Availability: Out of Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 2-173985-8 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for

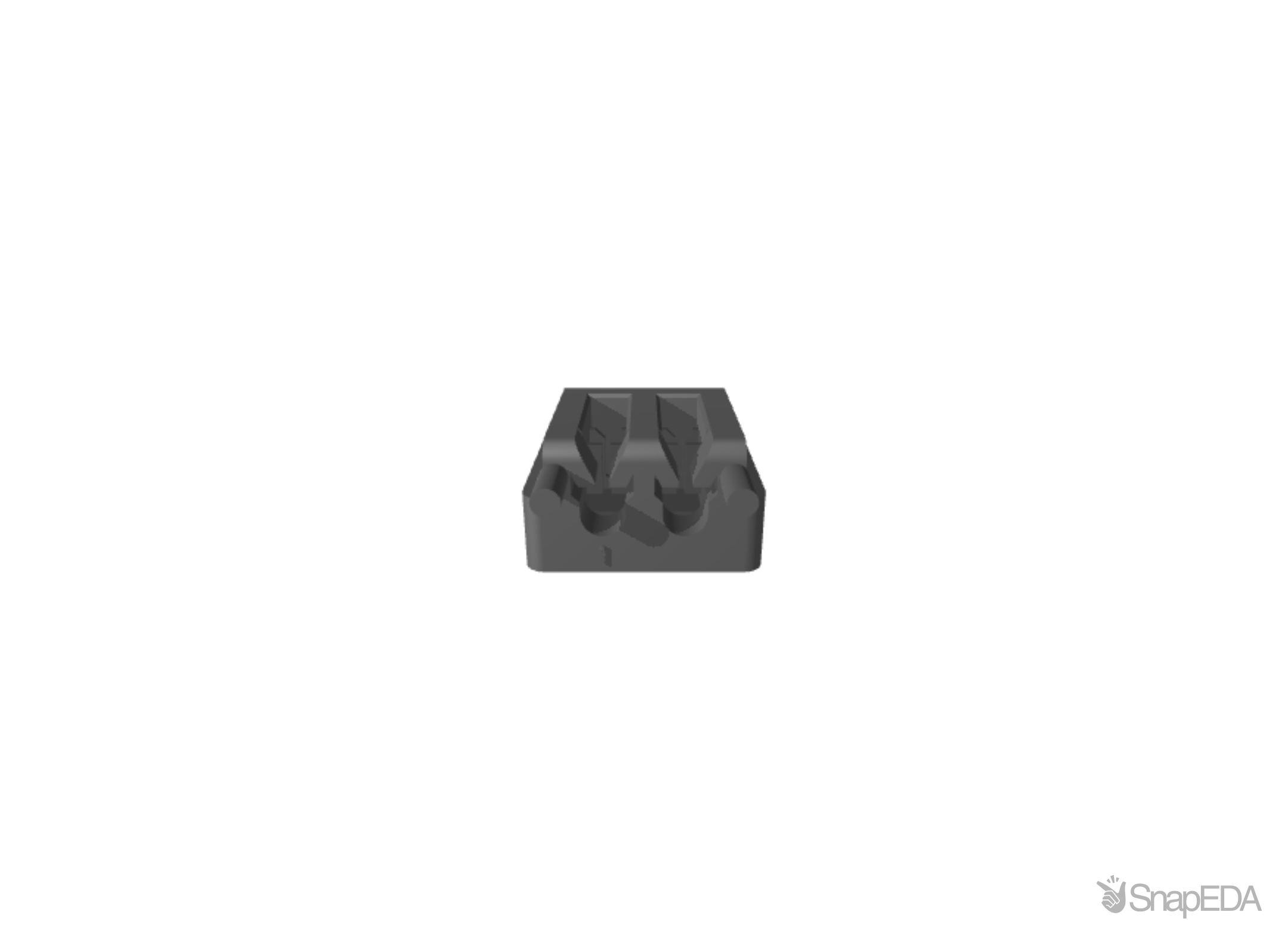

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 2-173985-8
| Part Name | 2-173985-8 |
| Manufacturer | TE Connectivity |
| Mating Alignment Type | Polarization |
| Centerline (Pitch) | 2 |
| UL Flammability Rating | UL 94V-0 |
| Housing Material | PBT GF |
| Operating Voltage (V) | 125 |
| PCB Mount Orientation | Vertical |
| Connector & Contact Terminates To | Wire & Cable |
| PCB Mount Retention Type | Retention Solder Tails |
| Contact Retention Type | Locking Lance |
| PCB Mount Retention | With |
| PCB Thickness (Recommended) | .031 – .063 |
| Termination Post & Tail Length | .138 |
| Contact Current Rating (Max) (A) | 2 |
| TE Internal Number | 2-173985-8 |
| Number of Positions | 8 |
| Connector System | Wire-to-Board |
| Connector Height | .201 |
| Number of Rows | 1 |
| Housing Color | Light Blue |
| Header Type | One Piece - IDC |
| Contact Base Material | Phosphor Bronze |
| Connector Mounting Type | Board Mount |
| Termination Method to Wire & Cable | Insulation Displacement Crimp (IDC) |
| Termination Method to Printed Circuit Board | Through Hole - Press-Fit |
| Connector Length | .709 |
| Operating Temperature Range | -40 – 105 |
| Strain Relief | With |
| Packaging Method | Tray |
| Packaging Quantity | 160 |
| Mating Alignment | With |
| Contact Mating Area Plating Material | Pre-Tin |
| Mating Retention | With |
| Sealable | No |
| PCB Mount Alignment | Without |
| Mating Retention Type | Polarized Lock |
| PCB Connector Assembly Type | PCB Mount Header |
| Contact Retention | With |
| Contact Type | Pin |
| PCB Contact Termination Area Plating Material | Pre-Tin |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
