2-179868-2
2.0 A-F TAB ASSY 22P L=3.1
Availability: In Stock
CAD Models: Symbol and Footprint
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 2-179868-2 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
Symbol
No web preview
This Symbol is Available for

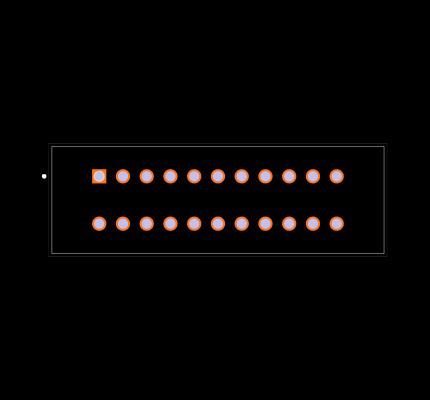

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 2-179868-2
| Part Name | 2-179868-2 |
| Manufacturer | TE Connectivity |
| Mating Alignment Type | Self-Aligning (Alignment Free) |
| Centerline (Pitch) | .079 |
| Housing Material | PBT GF |
| Connector & Contact Terminates To | Printed Circuit Board |
| Number of Positions | 22 |
| PCB Thickness (Recommended) | .6 |
| Termination Post & Tail Length | 3.1 |
| TE Internal Number | 2-179868-2 |
| PCB Mount Orientation | Vertical |
| Connector Height | .327 |
| Number of Rows | 2 |
| Housing Color | White |
| Contact Base Material | Copper Alloy |
| Mating Entry Location | Top |
| Packaging Method | Box & Tray |
| Packaging Quantity | 170 |
| Mating Alignment | With |
| Contact Mating Area Plating Material | Tin |
| RoHS | True |
| Life Cycle Status | Factory Special Order |
| Termination Method to Printed Circuit Board | Through Hole - Solder |
| PCB Contact Termination Area Plating Material | Tin |
| PCB Connector Assembly Type | PCB Mount Header |
| Stackable | No |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
