2-216792-0
20 Position Ribbon Cable, DIP Header Connector Gray IDC Through Hole, Press-Fit
Availability: Out of Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 2-216792-0 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for

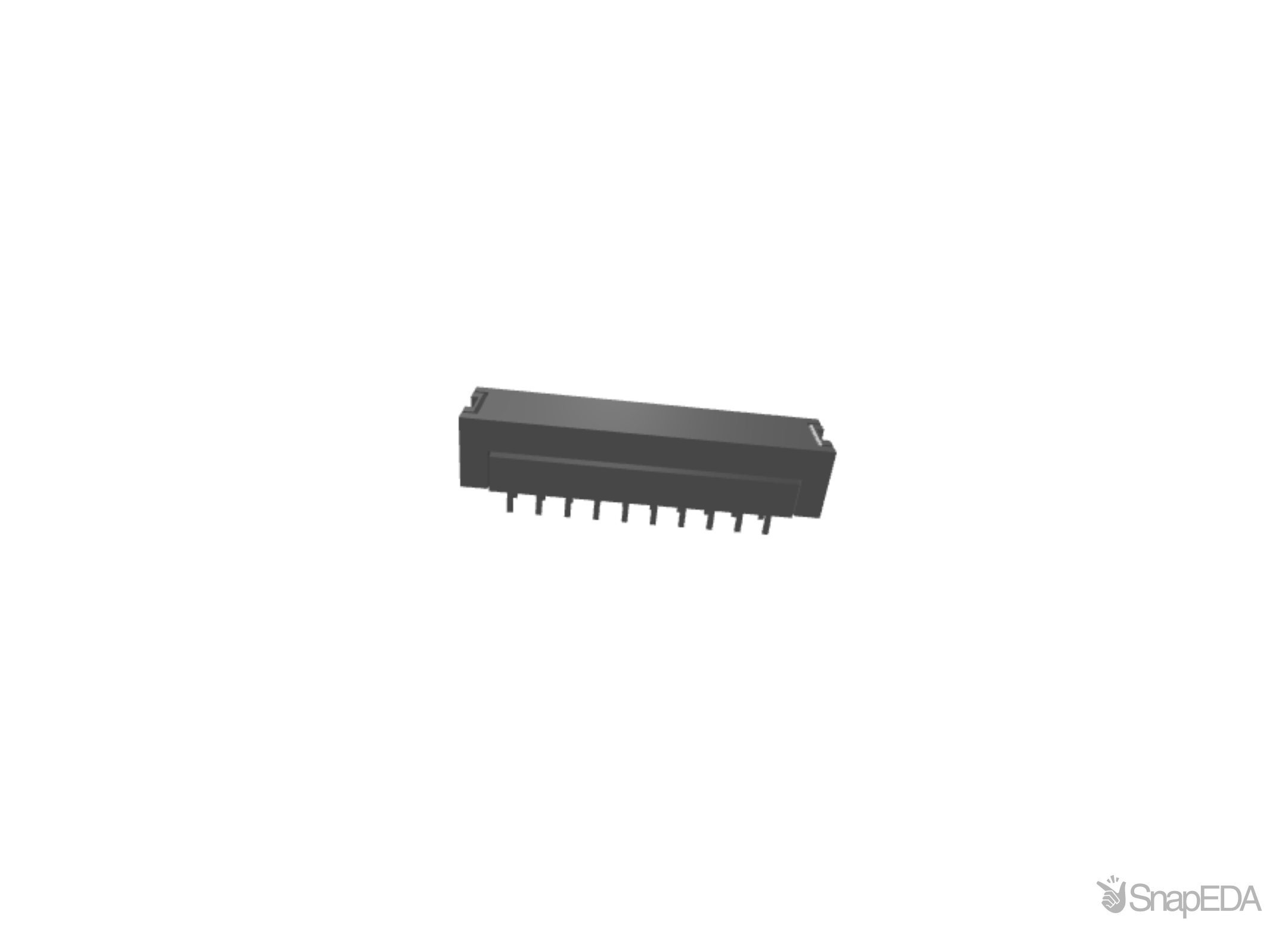

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 2-216792-0
| Part Name | 2-216792-0 |
| Manufacturer | TE Connectivity |
| Centerline (Pitch) | 2.54 |
| Operating Temperature Range | -65 to 105 |
| Circuit Application | Signal |
| Termination Method to Printed Circuit Board | Through Hole - Solder |
| Row-to-Row Spacing | 2.54 |
| Contact Mating Area Plating Material | Tin |
| Connector Style | Plug |
| Mating Connector Lock Type | Latch |
| PCB Mount Orientation | Vertical |
| Connector & Contact Terminates To | Printed Circuit Board |
| PCB Mount Retention Type | Boardlock |
| PCB Mount Retention | With |
| TE Internal Number | 2-216792-0 |
| Number of Positions | 20 |
| Connector System | Wire-to-Board |
| Contact Current Rating (Max) (A) | 1 |
| Number of Rows | 2 |
| Housing Color | Gray |
| Header Type | Shrouded |
| Mating Connector Lock | With |
| Product Type | Connector |
| Connector Mounting Type | Board Mount |
| Termination Method to Wire & Cable | Insulation Displacement Crimp (IDC) |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
No issues have been reported for the 2-216792-0
