2-2176051-9
750 mOhms ±1% 0.125W, 1/8W Chip Resistor 0603 (1608 Metric) Current Sense Thick Film
Availability: In Stock
CAD Models: Symbol and Footprint
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 2-2176051-9 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
Symbol
No web preview
This Symbol is Available for

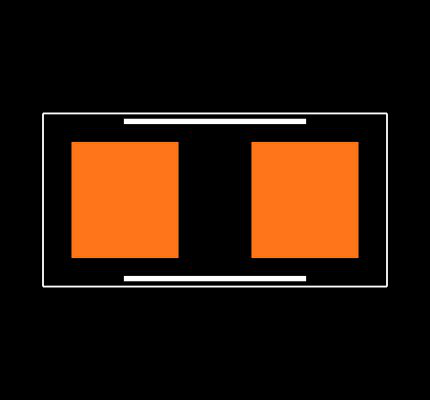

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 2-2176051-9
| Part Name | 2-2176051-9 |
| Manufacturer | TE Connectivity |
| Mount Style | Surface Mount |
| Dimensions | 1.6 x .8 x .3 |
| Package | 0603 |
| Number of Terminations | 2 |
| Resistor Type | Low Ohmic Resistor |
| Size Code | 0603 |
| Packaging Method | Taped & Reeled |
| TE Internal Number | 2-2176051-9 |
| Temperature Coefficient | ±200 |
| Resistance | .75 |
| Number of Resistors | 1 |
| Element Type | Thick Film |
| Termination Type | Solder |
| Power Rating | .125 |
| Product Type | Fixed Resistor |
| Tolerance | 1% |
| RoHS | True |
