2-2314822-0
20 Position Receptacle Connector 0.079" (2.00mm) Through Hole Gold
Availability: Out of Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 2-2314822-0 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for

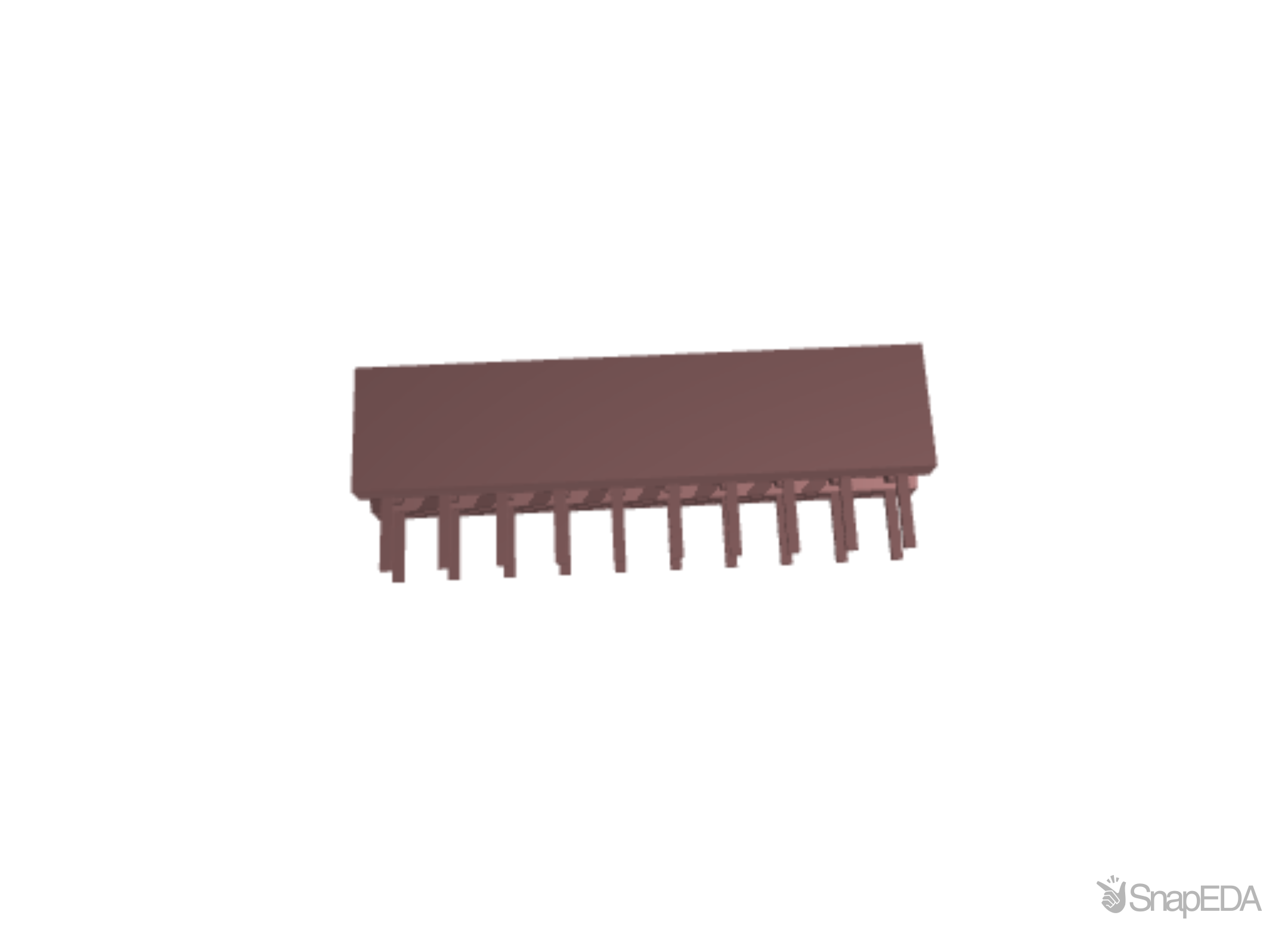

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 2-2314822-0
| Part Name | 2-2314822-0 |
| Manufacturer | TE Connectivity |
| Centerline (Pitch) | .079 |
| Circuit Application | Signal |
| Contact Underplating Material Thickness | 1.27 |
| High Temperature Compatible | Yes |
| Termination Method to Printed Circuit Board | Through Hole - Solder |
| Operating Voltage (V) | 125 |
| Connector & Contact Terminates To | Printed Circuit Board |
| Number of Loaded Positions | 20 |
| PCB Mount Retention | Without |
| PCB Thickness (Recommended) | 1.6 |
| Termination Post & Tail Length | .106 |
| PCB Connector Assembly Type | PCB Mount Receptacle |
| TE Internal Number | 2-2314822-0 |
| PCB Mount Orientation | Vertical |
| Connector System | Board-to-Board |
| Connector Height | .18 |
| Number of Rows | 2 |
| Housing Color | Black |
| Connector Width | 4 |
| Contact Mating Area Plating Material Finish | Matte |
| Contact Base Material | Phosphor Bronze |
| Connector Mounting Type | Board Mount |
| PCB Contact Termination Area Plating Material Thickness | 118.11 196.85 |
| Dielectric Withstanding Voltage (Max) (V) | 650 |
| Connector Length | 20 |
| Header Type | Shrouded |
| Operating Temperature Range | -40 to 257 |
| Contact Underplating Material | Nickel |
| Packaging Method | Tube |
| Contact Layout | Inline |
| Number of Positions | 20 |
| Mating Alignment | Without |
| Contact Mating Area Plating Material | Select Gold |
| Housing Material | LCP (Liquid Crystal Polymer) |
| Connector & Housing Type | Receptacle |
| Board-to-Board Configuration | Vertical |
| PCB Mount Alignment | Without |
| Post Size | .20 x .40 |
| UL Flammability Rating | UL 94V-0 |
| Contact Mating Area Plating Material Thickness | .76 |
| Row-to-Row Spacing | .079 |
| Contact Current Rating (Max) (A) | 2 |
| PCB Contact Termination Area Plating Material Finish | Matte |
| Connector Profile | Standard |
| Contact Type | Socket |
| PCB Contact Termination Area Plating Material | Tin |
| Make First / Break Last | No |
