2-406541-2
SnapVerified
Jack Modular Connector 8p8c (RJ45, Ethernet) 90° Angle (Right) Shielded Cat5
Availability: Out of Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 2-406541-2 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
Symbol
No web preview
This Symbol is Available for

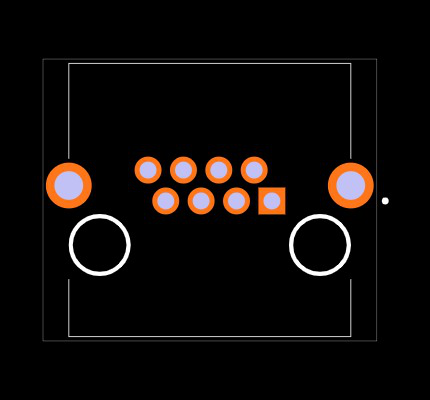

Footprint
No web preview
This Footprint is Available for

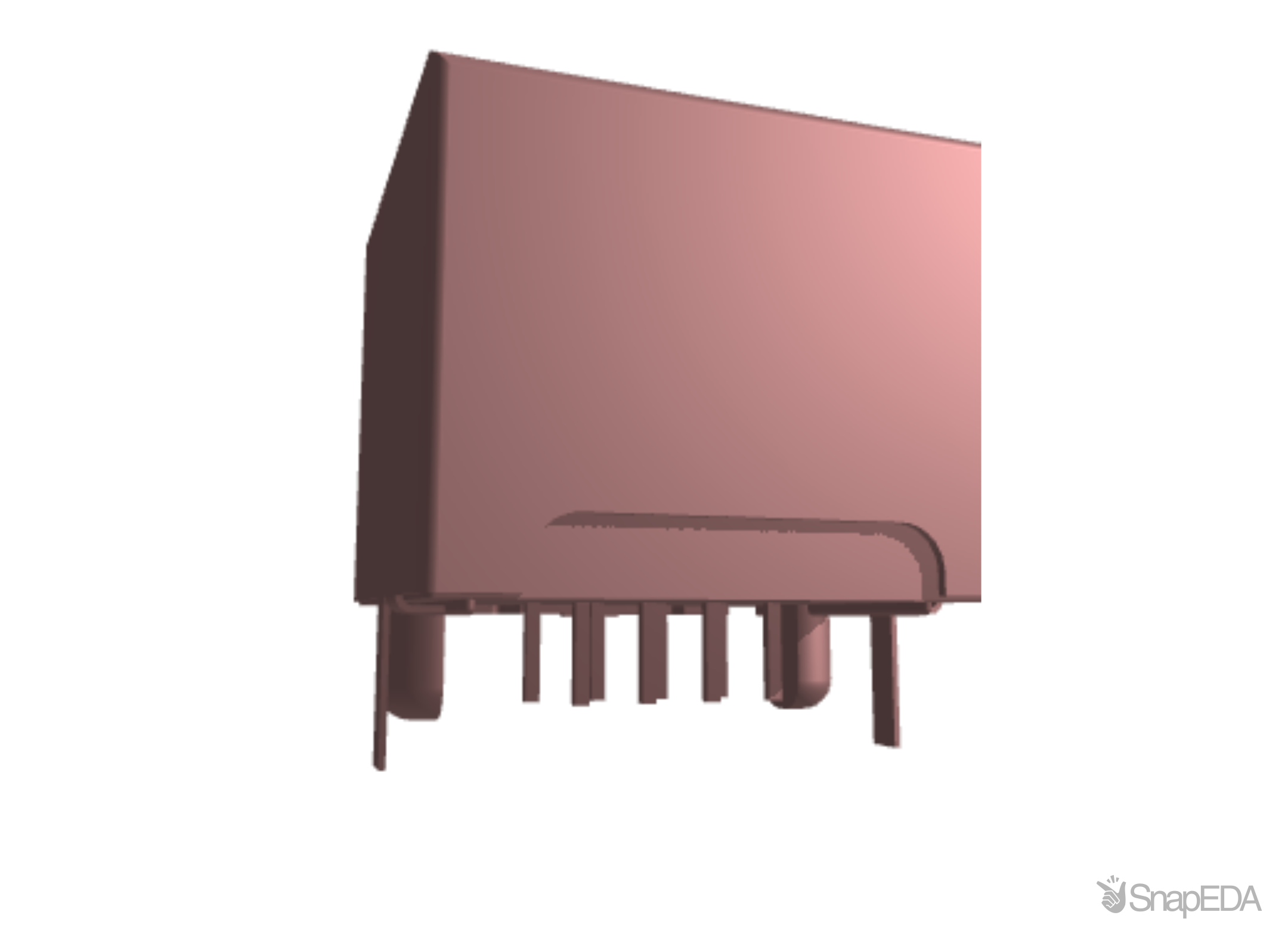

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 2-406541-2
| Part Name | 2-406541-2 |
| Manufacturer | TE Connectivity |
| コネクタ製品タイプ | Connector Assembly |
| Centerline (Pitch) | 1.02 |
| Circuit Application | Signal |
| Port Configuration | Single Port |
| Connector Product Type | Connector Assembly |
| UL Flammability Rating | UL 94V-0 |
| Housing Material | High Temperature Thermoplastic |
| PCB Ground Tab Location | -.135 |
| Shield Plating Finish | Satin |
| Connector & Contact Terminates To | Printed Circuit Board |
| Number of Positions | 8 |
| Number of Loaded Positions | 8 |
| Grounding Options | PCB Ground |
| Number of PCB Ground Tabs | 2 |
| PCB Thickness (Recommended) | .062 |
| Panel Mount Feature | Without |
| Connectors & Connector Components Type | Connector |
| TE Internal Number | 2-406541-2 |
| PCB Tail Length | 2.54 |
| PCB Mount Orientation | Right Angle |
| Status Indicator | None |
| Connector Height | .525 |
| Housing Color | Black |
| Contact Underplating Material | Nickel |
| Contact Base Material | Phosphor Bronze |
| Connector Mounting Type | Panel |
| Operating Temperature Range | -40 – 185 |
| Shielded | Yes |
| Mating Entry Location | Side |
| Connector Profile | Standard |
| Packaging Method | Tray |
| Packaging Quantity | 441 |
| Keyed | No |
| Modular Jacks & Plugs Products | RJ Type Jacks & Plugs |
| Contact Mating Area Plating Material | Gold |
| Modular Jack & Plug Interface Type | RJ45 |
| RoHS | True |
| Connector Contact Density | Standard |
| Termination Method to Printed Circuit Board | Through Hole - Solder |
| Shield Plating Material | Nickel |
| 端子の下地めっきの材料 | Nickel |
| Modular Connector Style | Jack |
| Shield Material | Copper Alloy |
| Performance Category | Cat 5 |
| Modular Jack Latch Orientation | Inverted - Latch Up |
| Contact Mating Area Plating Material Thickness | 15 |
| Number of Panel Ground Tabs | 0 |
| Contact Current Rating (Max) (A) | 1.5 |
| Port Matrix Configuration | 1 x 1 |
| PCB Contact Termination Area Plating Material | Tin |
| PCB Termination Area Plating Finish | Matte |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
No issues have been reported for the 2-406541-2
If you experienced any issues with the symbol or footprint, please report it.
