2-480435-2
Conn Housing RCP 1 POS ST Cable Mount Automotive Box
Availability: Out of Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 2-480435-2 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
2D Model
The 2D model for this
part is not available

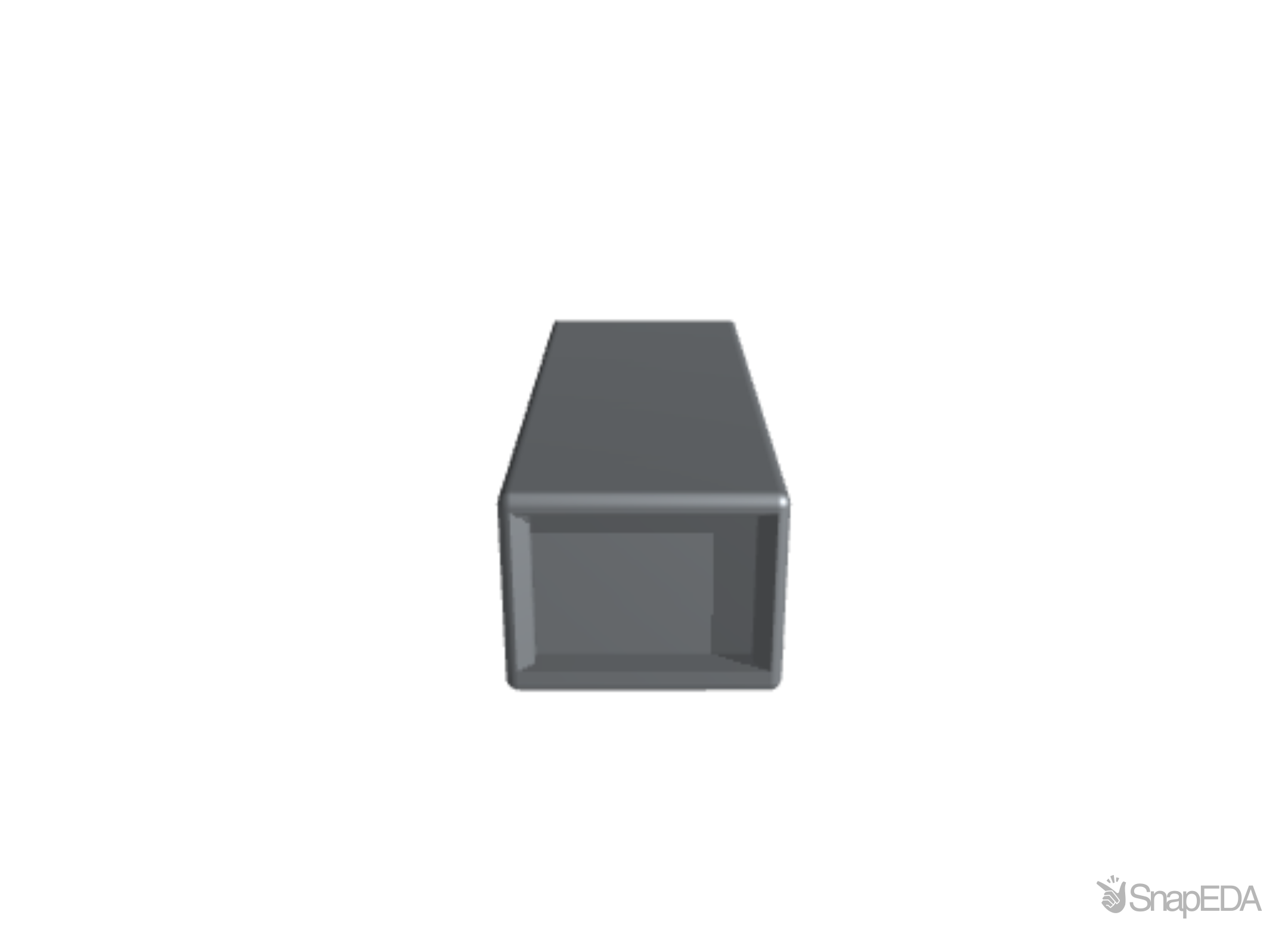

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 2-480435-2
| Part Name | 2-480435-2 |
| Manufacturer | TE Connectivity / AMP |
| Mating Retention | Without |
| Insulated | No |
| Sealable | No |
| Operating Temperature Range | -40 – 221 |
| Terminal & Splice Type | Receptacle |
| Packaging Method | Carton |
| TE Internal Number | 2-480435-2 |
| Packaging Quantity | 20000 |
| UL Flammability Rating | UL 94V-0 |
| Housing Material | Polyamide |
| Terminal Orientation | Straight |
| Housing Type | Receptacle Housing |
| Length | 19.69 |
| Housing Color | Natural |
| Mounting Style | Free Hanging |
| Style Code | D |
| Product Type | Terminal Housing |
| Number of Positions | 1 |
| RoHS | True |
| Mating Alignment | With |
