2-5178238-9
Conn SCSI RCP 100 POS 2.54mm Solder RA Thru-Hole 100 Terminal 1 Port Tray
Availability: Out of Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 2-5178238-9 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
2D Model
The 2D model for this
part is not available

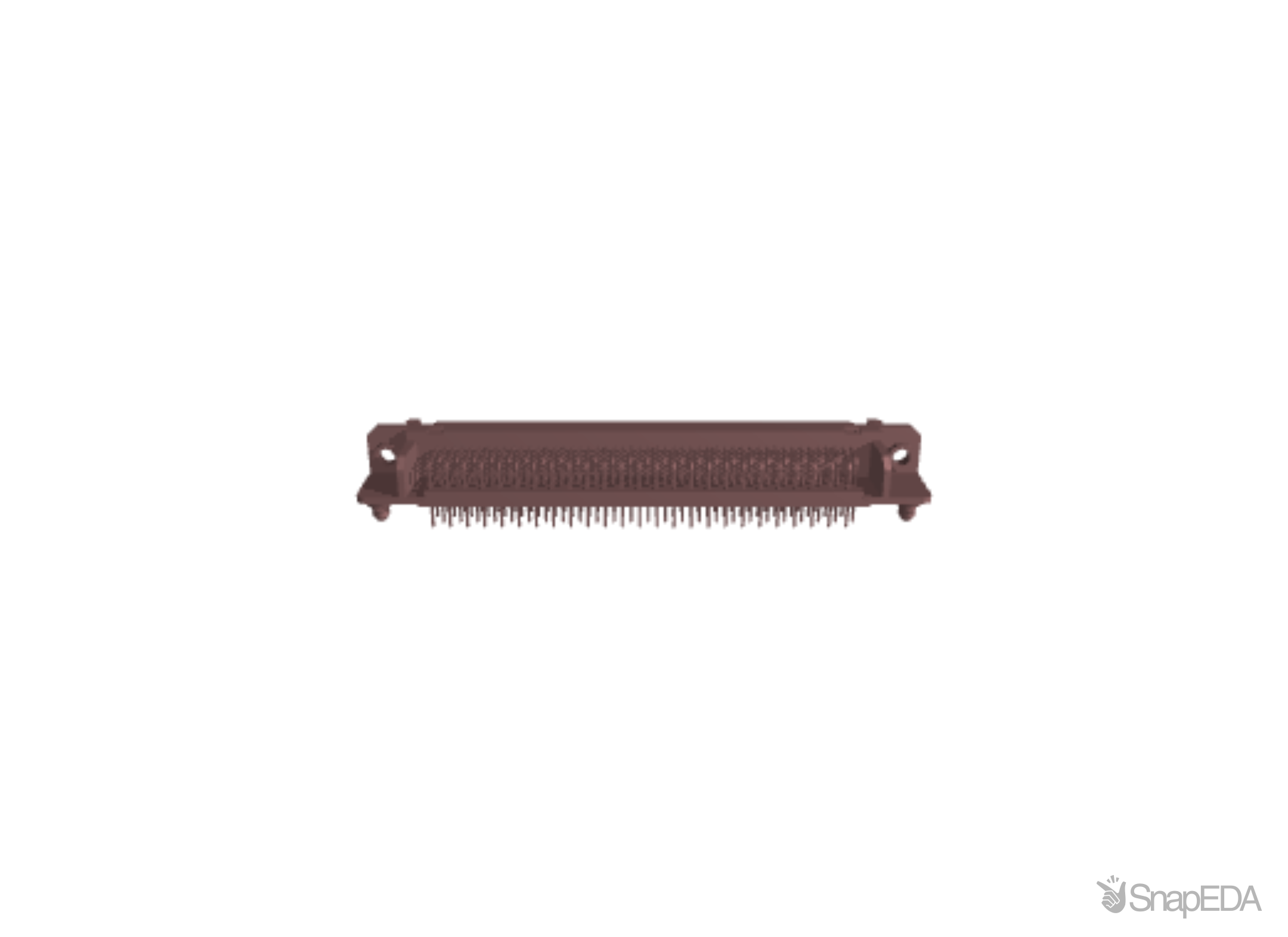

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 2-5178238-9
| Part Name | 2-5178238-9 |
| Manufacturer | TE Connectivity |
| Shell Plating Material | Nickel |
| Centerline (Pitch) | 1.27 |
| Shell Material | Steel |
| Circuit Application | Signal |
| Frame Plating Material | Nickel |
| Housing Material | Thermoplastic |
| Row-to-Row Spacing | .05 |
| Panel Thickness | .079 |
| Connector & Contact Terminates To | Printed Circuit Board |
| Connector Style | Receptacle |
| Mating Connector Lock Type | Bail Lock |
| Number of Positions | 100 |
| PCB Mount Retention Type | Retention Leg |
| Profile | Standard |
| PCB Mount Retention | With |
| PCB Thickness (Recommended) | .062 – .093 |
| Contact Current Rating (Max) (A) | .5 |
| TE Internal Number | 2-5178238-9 |
| PCB Mount Orientation | Vertical |
| Connector System | Cable-to-Board |
| Number of Rows | 2 |
| Frame Material | Die Cast Zinc |
| Housing Color | Black |
| Contact Base Material | Copper Alloy |
| Connector Mounting Type | Board Mount |
| Mating Retention | With |
| Operating Temperature Range | -67 – 185 |
| Mounting Hole Diameter | 2.7 |
| Packaging Method | Tray |
| Connector Type | Header |
| Packaging Quantity | 50 |
| Mounting Angle | Right Angle |
| Sealable | No |
| Contact Mating Area Plating Material | Gold |
| RoHS | True |
| Life Cycle Status | Obsolete |
| PCB Mounting Style | Through Hole |
| Boardlock Material | Copper Alloy |
| Product Type | Connector |
| Termination Post Length | .122 |
| Shell Type | Full Metal Shell |
| Shield Material | Steel |
| Post Size | .4 |
| UL Flammability Rating | UL 94V-0 |
| Boardlock Plating Material | Tin over Nickel |
| Panel Mount Feature | With |
| Shield Plating Material | Nickel over Copper |
| Housing Material Temperature | Standard |
| Contact Mating Area Plating Thickness | 30 |
| Color | Black |
| PCB Contact Termination Area Plating Material | Tin |
| Preloaded | Yes |
| Mating Connector Lock | With |
| Mating Retention Type | Latch |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
