2-520129-2
Ultra-Fast .250 Series Insulated Tin Plated Crimp Flag Terminal 22 to 18 AWG Red | TE Connectivity 2-520129-2
Availability: In Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 2-520129-2 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
2D Model
The 2D model for this
part is not available

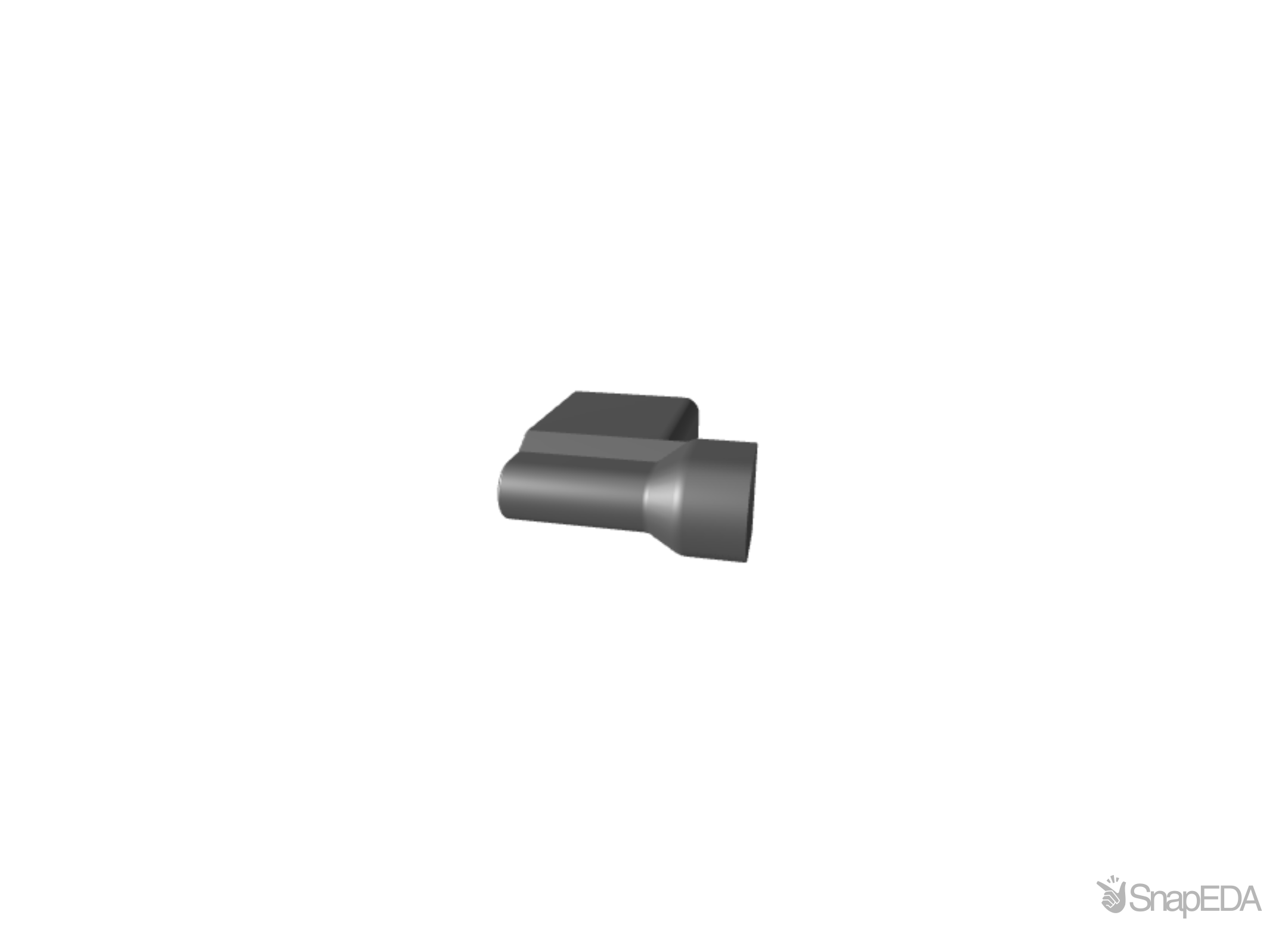

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 2-520129-2
| Part Name | 2-520129-2 |
| Manufacturer | TE Connectivity |
| Category | Connectors |
| Barrel Color | Red |
| Fully Insulated | Yes |
| Mating Retention Type | Dimple |
| Wire/Cable Type | Regular Wire |
| Insulated | Yes |
| Wire Stop | No |
| Plating Material | Tin |
| Receptacle Terminal Stock Thickness | .41 |
| Operating Temperature Range | -40 – 230 |
| TE Internal Number | 2-520129-2 |
| UL Rating | Listed |
| Voltage (Max) (V) | 600 |
| Overall Length | .58 |
| Contact Base Material | Brass |
| Terminal Type | Receptacle |
| Connection Capacity | Single |
| Terminal & Splice Type | Receptacle |
| Packaging Method | Loose Piece/Carton |
| Packaging Quantity | 1000 |
| Terminal Orientation | Flag |
| Accepts Wire Insulation Diameter Range | 4.19 |
| Barrel Type | Closed |
| Insertion Force | Low |
| Mating Tab Width | .25 |
| Sealable | No |
| Wire Insulation Support | With |
| UL Flammability Rating | UL 94V-2 |
| Crimp Type | F-Crimp |
| Mating Tab Thickness | .032 |
| Terminates To | Wire & Cable |
| Wire Size | 22 – 18 |
| Insulation Material | Nylon |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Tab Thickness | 0.81 (mm) |
| Series | Ultra-Fast .250 |
| Tab Width | 6.35 (mm) |
| Minimum Wire Size (Mm²) | 0.3 (mm²) |
| Minimum Wire Size (Awg) | 22 (AWG) |
| Colour | Red |
| Termination Method | Crimp |
| Maximum Wire Size (Mm²) | 0.9 (mm²) |
| Gender | Female |
| Maximum Wire Size (Awg) | 18 (AWG) |
| Tab Size | 6.35 x 0.81 (mm) |
| Contact Plating | Tin |
| Overall Length | 16.14 (mm) |
| Insulation | Insulated |
| Type | Flag Terminal |
| Insulation Material | Nylon |
| Contact Material | Brass |
