2-5332095-4
Pin Receptacle Connector 0.013" ~ 0.020" (0.33mm ~ 0.51mm) No Tail Solder
Availability: In Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 2-5332095-4 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
2D Model
The 2D model for this
part is not available

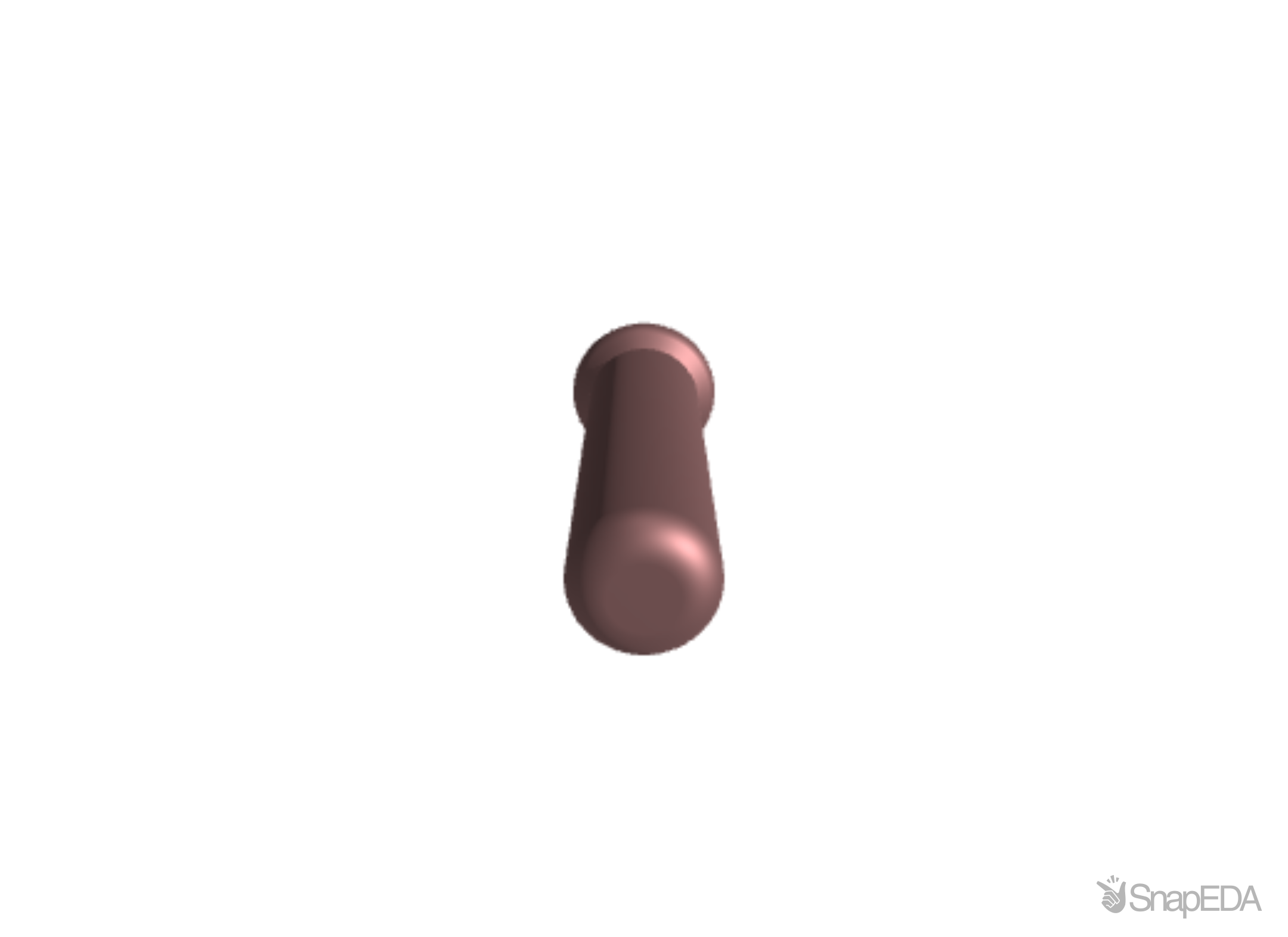

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 2-5332095-4
| Part Name | 2-5332095-4 |
| Manufacturer | TE Connectivity |
| Hole Size (Recommended) | .041 |
| Circuit Application | Power & Signal |
| Mating Pin Diameter Range | .33 – .51 |
| Sleeve Plating Material | Tin |
| Termination Method to Printed Circuit Board | Through Hole - Press-Fit |
| Wire/Cable Type | Discrete Wire |
| Connector & Contact Terminates To | Printed Circuit Board |
| Profile | Zero |
| Connector System | Cable-to-Board |
| PCB Thickness (Recommended) | .031 – .125 |
| Insertion Method | Hand/Semi-Automatic |
| Sleeve Style | Closed Bottom |
| TE Internal Number | 2-5332095-4 |
| Termination Method to Wire & Cable | Solder |
| Spring Material | Beryllium Copper |
| Contact Base Material | Beryllium Copper |
| Contact Transmits (Typical) | Signal (Data)/Power |
| Contact Spring Plating Material | Gold |
| Operating Temperature Range | -65 – 125 |
| Sleeve Material | Copper |
| Packaging Method | Bag |
| Packaging Quantity | 2000 |
| Contact Mating Area Plating Material | Gold |
| RoHS | True |
| Sealant | No |
| Product Type | Contact |
| Contact Spring Plating Thickness | .762 |
| Socket Type | Discrete |
| Contact Current Rating (Max) (A) | 5 |
| Contact Mating Area Plating Thickness | 30 |
| Contact Type | Socket |
| Wire Size | 28 – 25 |
| Socket Length | .178 |
| Sealable | No |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Current Rating (A) | 5 (A) |
| Gender | Female |
| Series | 1 Series |
| Body Orientation | Straight |
| Housing Material | Beryllium Copper |
| Length | 4.52 (mm) |
| Number Of Rows | 1 |
| Contact Plating | Gold over Nickel |
| Termination Method | Solder |
| Wire Size | 28 → 25 AWG |
| Contact Material | Beryllium Copper |
