2-535541-7
SnapVerified
29 MODIV VRT SR CE 100/115
Availability: Out of Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 2-535541-7 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
Symbol
No web preview
This Symbol is Available for

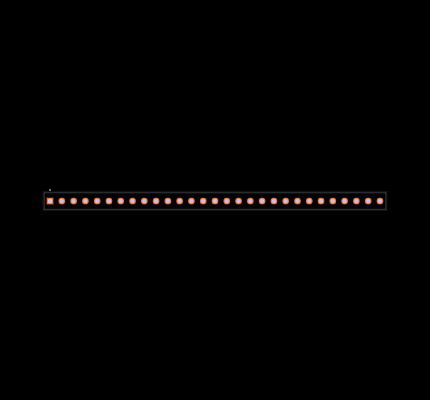

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 2-535541-7
| Part Name | 2-535541-7 |
| Manufacturer | TE Connectivity |
| Centerline (Pitch) | 2.54 |
| UL Flammability Rating | UL 94V-0 |
| Housing Material | Polyester - GF |
| Insulation Resistance | 5000 |
| Operating Voltage (V) | 333 |
| Connector & Contact Terminates To | Printed Circuit Board |
| PCB Mount Retention | Without |
| PCB Thickness (Recommended) | .055 – .094 |
| Termination Post & Tail Length | 3.18 |
| PCB Connector Assembly Type | PCB Mount Receptacle |
| TE Internal Number | 2-535541-7 |
| PCB Mount Orientation | Vertical |
| Contact Protection Type | Closed Entry Housing |
| Connector Height | 3.56 |
| Number of Rows | 1 |
| Housing Color | Black |
| Sealable | No |
| Contact Shape | Square |
| PCB Contact Termination Area Plating Material Thickness | 3.81 – 50 |
| Dielectric Withstanding Voltage (Max) (V) | 750 |
| Termination Method to Printed Circuit Board | Through Hole - Solder |
| Operating Temperature Range | -65 – 125 |
| Mating Entry Location | Top |
| High Temperature Compatible | No |
| Packaging Method | Box & Tube |
| Packaging Quantity | 7 |
| Contact Configuration | Short Point |
| Contact Layout | Inline |
| Solder Process Feature | Board Standoff |
| Number of Positions | 29 |
| Contact Mating Area Plating Material | Gold |
| Approved Standards | CSA LR7189 |
| Contact Base Material | Phosphor Bronze |
| PCB Contact Termination Area Plating Material | Tin |
| Stack Height | 6.22 |
| Contact Mating Area Plating Material Thickness | 30 |
| Applied Pressure | Standard |
| Contact Current Rating (Max) (A) | 3 |
| Connector Profile | Standard |
| Contact Type | Socket |
| Stackable | Yes |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
Inventory for the 2-535541-7 by TE Connectivity from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
| Mouser |
|
N/A | Visit Site |
No issues have been reported for the 2-535541-7
