2-66741-1
Contact, Socket, Crimp, 10AWG, Copper, Tin Plated Contacts, Multimate Series | TE Connectivity 2-66741-1
Availability: In Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 2-66741-1 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
2D Model
The 2D model for this
part is not available

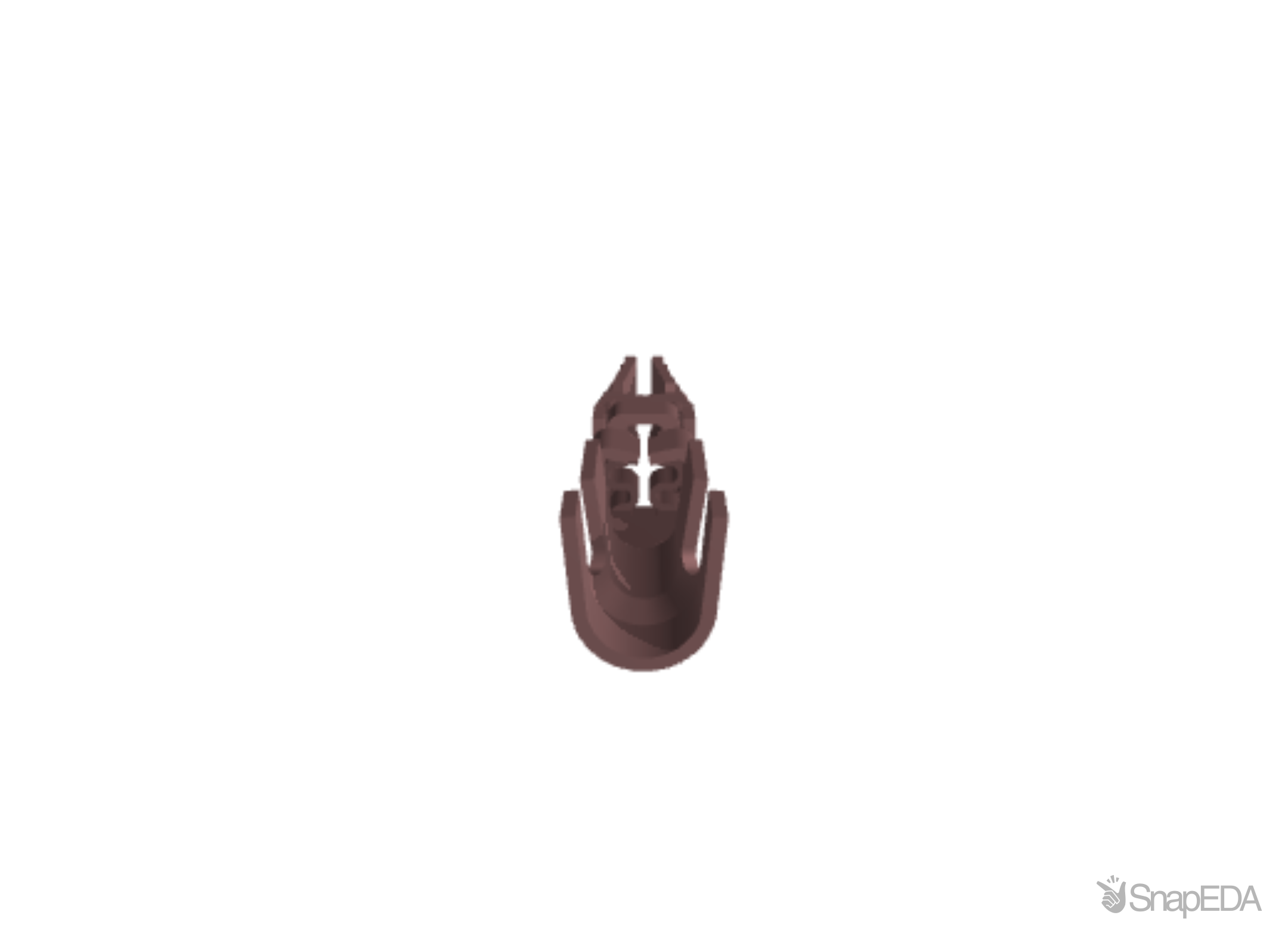

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 2-66741-1
| Part Name | 2-66741-1 |
| Manufacturer | TE Connectivity |
| Category | Connectors |
| Product Type | Contact |
| Circuit Application | Power |
| Packaging Method | Bag |
| TE Internal Number | 2-66741-1 |
| Packaging Quantity | 100 |
| Contact Type | Socket |
| Contact Termination Area Plating Material | Tin |
| Wire Size | 10 |
| Wire/Cable Type | Discrete Wire |
| Termination Type | Crimp |
| Contact Mating Area Plating Material | Tin |
| For Use With | G Series Connectors |
| Accepts Wire Insulation Diameter Range | 4.83 – 5.59 |
| Contact Base Material | Copper |
| Connector & Contact Terminates To | Wire & Cable |
| RoHS | True |
| Test Current (A) | 15 |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
Inventory for the 2-66741-1 by TE Connectivity from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
1,503
|
|
Visit Site |
No issues have been reported for the 2-66741-1
If you experienced any issues with this part, please report it.
