2-829309-0
SnapVerified
2X20P MOD2 STIFTLEI
Availability: Out of Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 2-829309-0 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
Symbol
No web preview
This Symbol is Available for

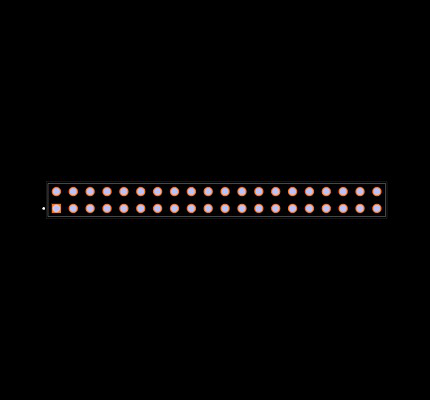

Footprint
No web preview
This Footprint is Available for

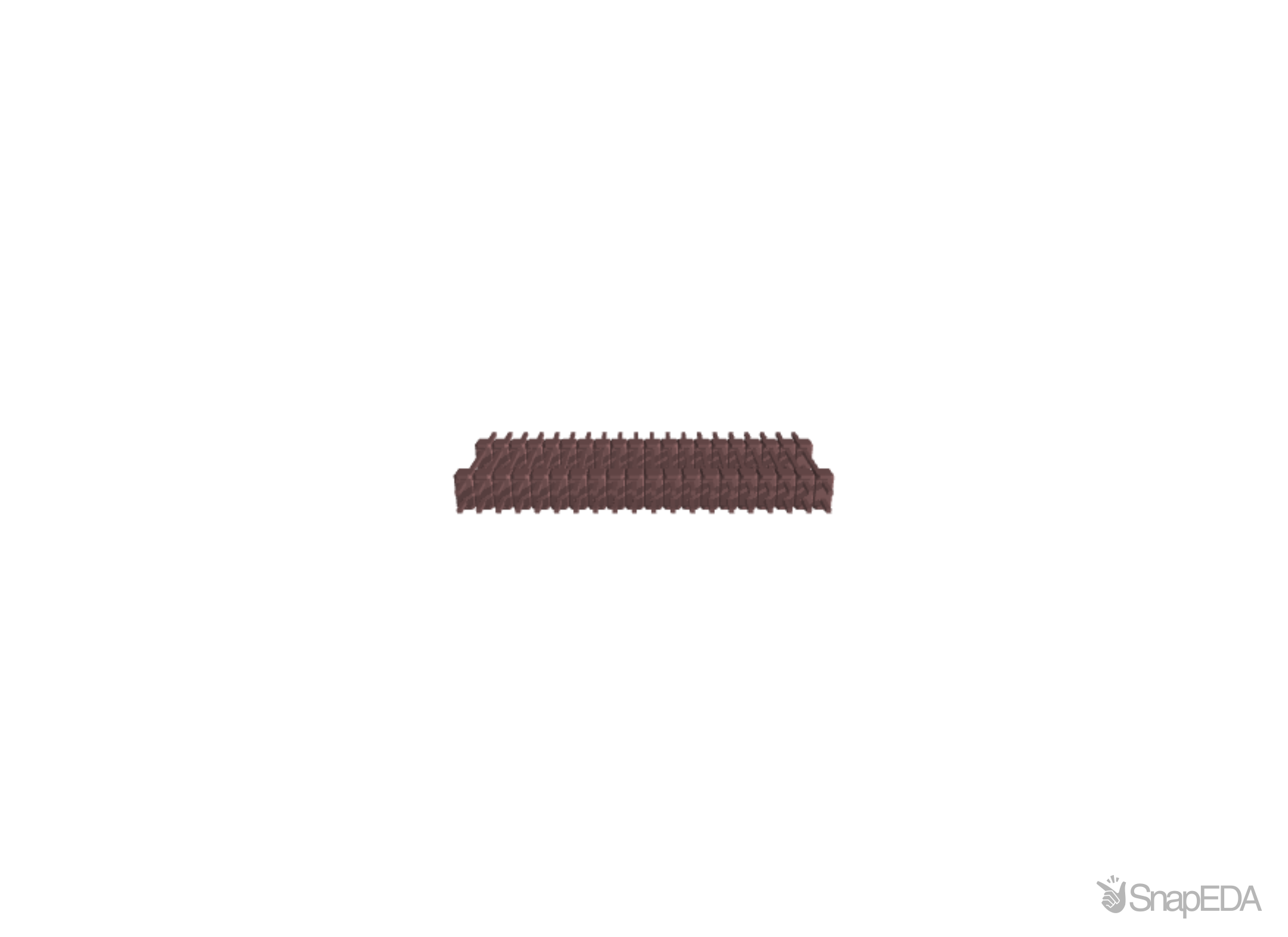

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 2-829309-0
| Part Name | 2-829309-0 |
| Manufacturer | TE Connectivity |
| Centerline (Pitch) | 2.54 |
| Termination Method to Printed Circuit Board | Through Hole - Solder |
| Insulation Resistance | 5000 |
| Number of Positions | 40 |
| PCB Mount Retention | Without |
| Termination Post & Tail Length | 3.1 |
| Contact Current Rating (Max) (A) | 5 |
| Mating Post Length | .122 |
| TE Internal Number | 2-829309-0 |
| PCB Mount Orientation | Vertical |
| Number of Rows | 2 |
| Housing Color | Green |
| Contact Underplating Material | Nickel |
| Contact Base Material | CuZn |
| Contact Shape | Square |
| Operating Temperature Range | -65 – 125 |
| Connector & Contact Terminates To | Printed Circuit Board |
| Contact Mating Area Plating Material | Gold |
| RoHS | True |
| Life Cycle Status | Factory Special Order |
| Housing Material | PBT |
| 端子の下地めっきの材料 | Nickel |
| PCB Contact Termination Area Plating Material | Tin |
| Post Size | .0248 |
| Stack Height | .602 |
| Contact Mating Area Plating Material Thickness | .1 |
| Row-to-Row Spacing | 2.54 |
| PCB Connector Assembly Type | PCB Mount Header |
| Contact Type | Pin |
| Stackable | Yes |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
Inventory for the 2-829309-0 by TE Connectivity from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
|
1,560 x $9.82
|
Visit Site | |
| Heilind Americas |
|
1,560 x $10.48
|
Visit Site | |
| Interstate Connecting Components |
|
1,560 x $10.48
|
Visit Site | |
| Mouser |
|
N/A | Visit Site | |
| Sager |
|
1,560 x $13.10
|
Visit Site |
No issues have been reported for the 2-829309-0
If you experienced any issues with the symbol or footprint, please report it.
