2-87233-0
SnapVerified
20 MODII HDR SRRA UNSHRD .100
Availability: Out of Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 2-87233-0 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
Symbol
No web preview
This Symbol is Available for

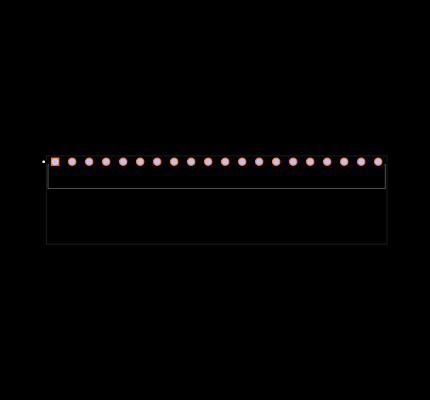

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 2-87233-0
| Part Name | 2-87233-0 |
| Manufacturer | TE Connectivity |
| Centerline (Pitch) | 2.54 |
| Dielectric Withstanding Voltage (V) | 750 Vrms |
| Termination Method to Printed Circuit Board | Through Hole - Solder |
| Connector & Contact Terminates To | Printed Circuit Board |
| PCB Mount Retention | Without |
| PCB Thickness (Recommended) | .055 |
| Termination Post & Tail Length | .11 |
| PCB Connector Assembly Type | PCB Mount Header |
| Panel Mount Feature | Without |
| Mating Post Length | .318 |
| TE Internal Number | 2-87233-0 |
| PCB Mount Orientation | Right Angle |
| Number of Rows | 1 |
| Housing Color | Black |
| Header Type | Unshrouded |
| Contact Underplating Material | Nickel |
| Strain Relief | Without |
| Contact Shape | Square |
| Operating Temperature Range | -65 – 105 |
| Packaging Method | Tray |
| Packaging Quantity | 25 |
| Contact Base Material | Phosphor Bronze |
| Number of Positions | 20 |
| Mating Alignment | Without |
| Contact Mating Area Plating Material | Gold |
| RoHS | True |
| Approved Standards | CSA LR7189 |
| Housing Material | Thermoplastic |
| 端子の下地めっきの材料 | Nickel |
| High Temperature Housing | No |
| Post Size | .64 |
| UL Flammability Rating | UL 94V-0 |
| Contact Mating Area Plating Material Thickness | 15 |
| Row-to-Row Spacing | .1 |
| Contact Current Rating (Max) (A) | 3 |
| Connector Contact Load Condition | Fully Loaded |
| Contact Type | Pin |
| PCB Contact Termination Area Plating Material | Gold Flash |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
Inventory for the 2-87233-0 by TE Connectivity from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
|
375 x $9.40
|
Visit Site | |
| Avnet America |
|
|
Visit Site | |
| Buerklin |
|
75 x $11.24
|
Visit Site | |
| Heilind Europe |
|
|
Visit Site | |
| Interstate Connecting Components |
|
|
Visit Site |
No issues have been reported for the 2-87233-0
If you experienced any issues with the symbol or footprint, please report it.
