2-964302-1
Timer PCB Connector Contact, Male, Crimp, Tin Plating 13 - 17 AWG | TE Connectivity 2-964302-1
Availability: In Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 2-964302-1 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
2D Model
The 2D model for this
part is not available

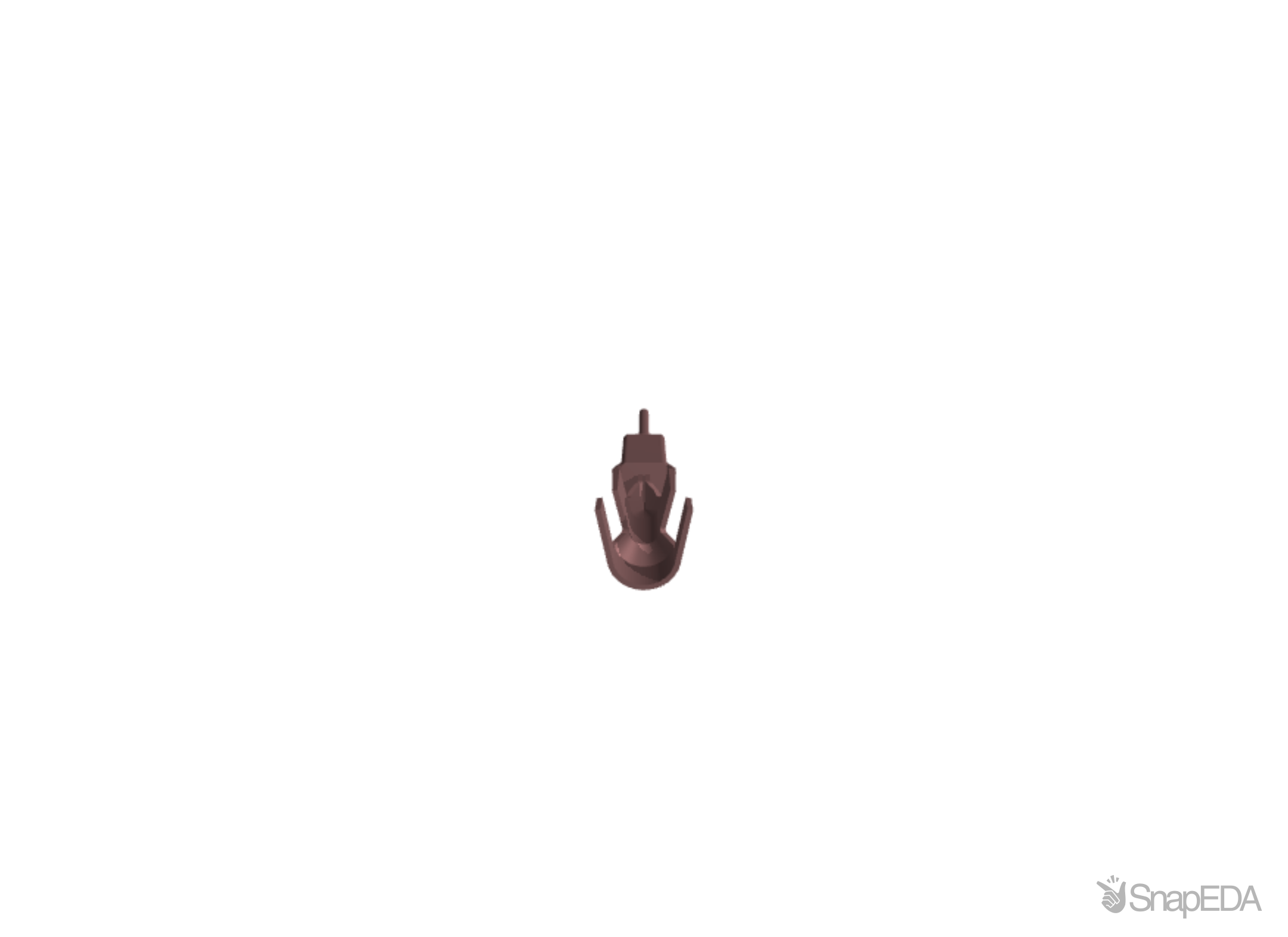

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 2-964302-1
| Part Name | 2-964302-1 |
| Manufacturer | TE Connectivity |
| Category | Connectors |
| Wire Type | Copper |
| Wire Insulation Diameter | 2.2 – 2.4 |
| Wire Size Search | 1.3 |
| TE Internal Number | 2-964302-1 |
| Termination Method | Crimp |
| Primary Locking Feature | Locking Lance |
| Sealable | Yes |
| Operating Temperature Range | -40 – 130 |
| Terminal & Splice Type | Tab |
| Packaging Method | Reel |
| Packaging Quantity | 3300 |
| Agency/Standard | IEC 664/664A (DIN VDE 0110) |
| Contact Termination Area Plating Material | Tin (Sn) |
| RoHS | True |
| Mating Tab Width | 2.8 |
| Crimp Type | F-Crimp |
| Interface Plating | Tin (Sn) |
| Typical Current Rating (A) | 30 |
| Mating Tab Thickness | .8 |
| Terminal Transmits | 25 – 40 A (Power) |
| Wire Size | 1 – 2.5 |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Minimum Wire Size Mm | 1 (mm²) |
| Maximum Wire Size Mm | 2.5 (mm²) |
| Series | Junior Power Timer |
| Termination Method | Crimp |
| Contact Plating | Tin |
| Gender | Male |
| For Use With | Junior Power Timer Connector Housing |
| Contact Material | Copper, Iron Alloy |
