2-968322-1
Conn Housing RCP 20 POS 2.54mm Crimp ST Cable Mount
Availability: In Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 2-968322-1 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.

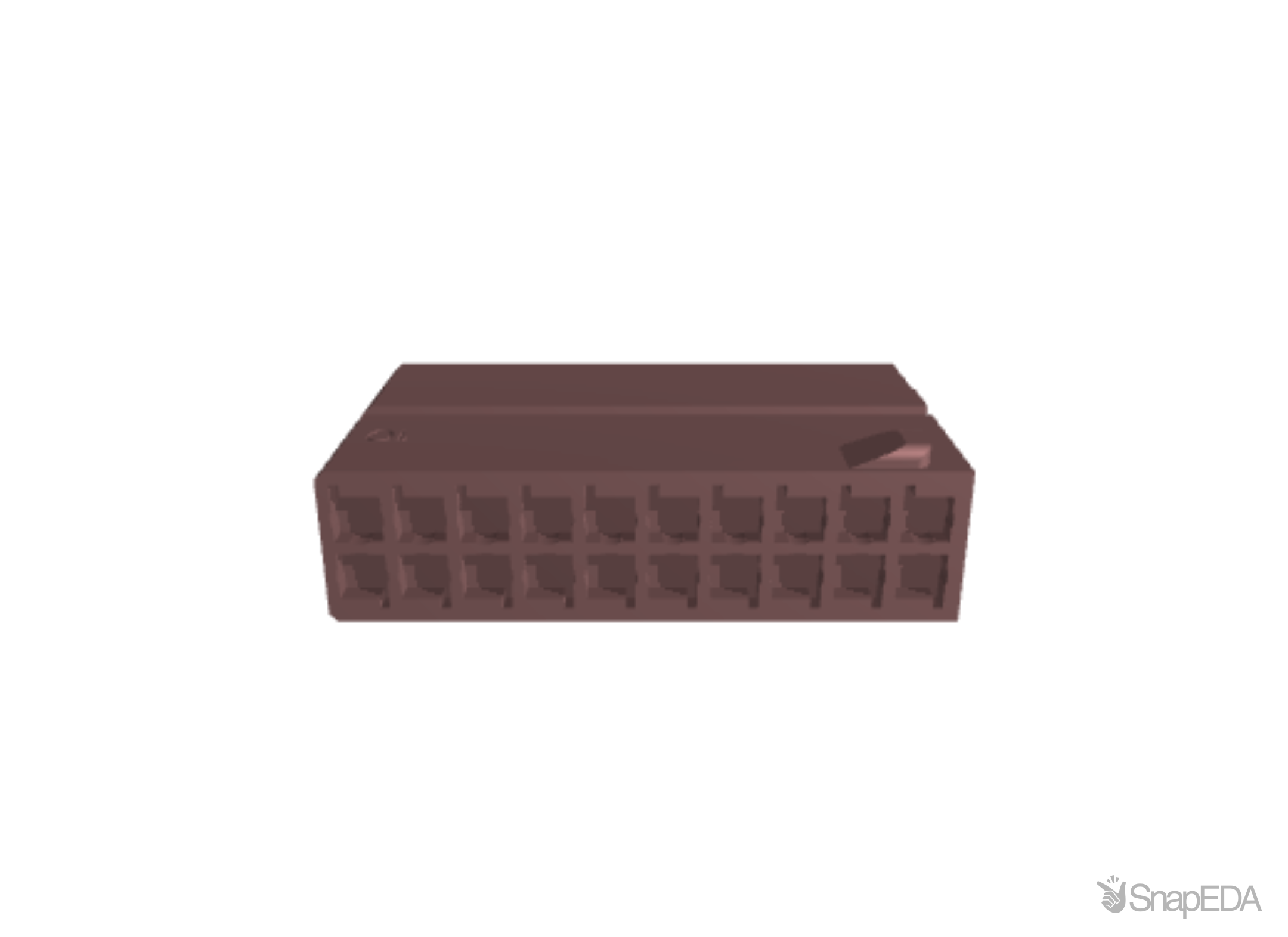

2D Model
The 2D model for this
part is not available
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 2-968322-1
| Part Name | 2-968322-1 |
| Manufacturer | TE Connectivity |
| Centerline (Pitch) | 2.54 |
| Circuit Application | Signal |
| Width | 16 |
| Connector Position Assurance Capable | No |
| Connector Style | Housing for female terminals |
| Number of Positions | 20 |
| Operating Temperature Range | -40 – 120 |
| TE Internal Number | 2-968322-1 |
| Connector & Contact Terminates To | Wire & Cable |
| Connector System | Wire-to-Wire |
| Number of Rows | 2 |
| Sealable | No |
| Terminal Position Assurance | Yes |
| Polarized | No |
| Hybrid Connector | No |
| Packaging Method | Box |
| Packaging Quantity | 3000 |
| Length | 26.1 |
| Cable Exit Angle | 180° |
| Serviceable | No |
| RoHS | True |
| Mating Tab Width | .025 |
| Strain Relief | No |
| Color | Gray |
| Body Material | PBT GF |
| Height | .311 |
| Row-to-Row Spacing | .1 |
| Primary Locking Feature | On the Terminal |
| Connector Code | B |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
