2000676-2
Keyed Guide Pin, Machined, Vita 46 | TE Connectivity 2000676-2
Availability: In Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 2000676-2 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for

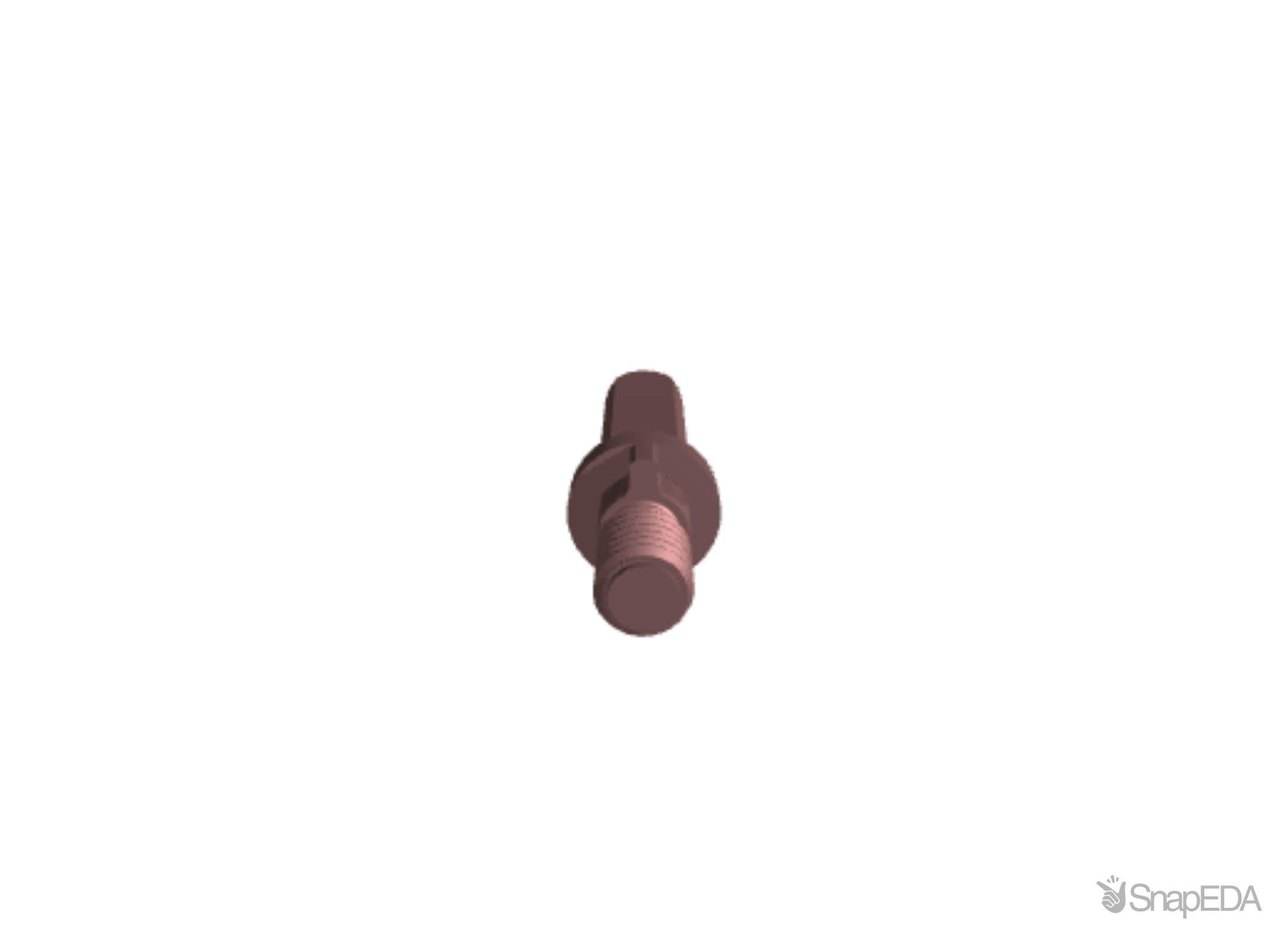

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 2000676-2
| Part Name | 2000676-2 |
| Manufacturer | TE Connectivity |
| Guide Length | .944 |
| Category | Connectors |
| Mating Alignment Type | Guide Hole |
| Screw & Hole Thread Size | 10-32 UNF |
| Circuit Application | Power & Signal |
| Location | Backplane |
| For Use With | Guide Module |
| Operating Temperature Range | -67 – 257 |
| TE Internal Number | 2000676-2 |
| Connector System | Board-to-Board |
| Board Mount | Bottom Side |
| RoHS | True |
| Guide Pin Finish | Passivated |
| Sealable | No |
| Backplane Guide Hardware Type | Guide Pin |
| Connector Mounting Type | Board Mount |
| Guide Pin Type | External Thread |
| Mounting Location | Front |
| Shielded | No |
| Packaging Method | Bag |
| Mounting Angle | Right Angle |
| Packaging Quantity | 100 |
| Keyed | No |
| Length | 1.33 |
| Interface Type | MULTI GIG RT2J |
| Guide Hardware | Yes |
| Guide Pin Material | Stainless Steel |
| Mating Alignment | With |
| Plating Material Finish | Passivated |
| VITA 46 | Yes |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| For Use With | Machined Backplane Connectors |
| Series | MULTIGIG RT 2-R |
| Accessory Type | Keyed Guide Pin |
| Backplane Connector Accessory Type | Keyed Guide Pin |
